NSYCRTM1U

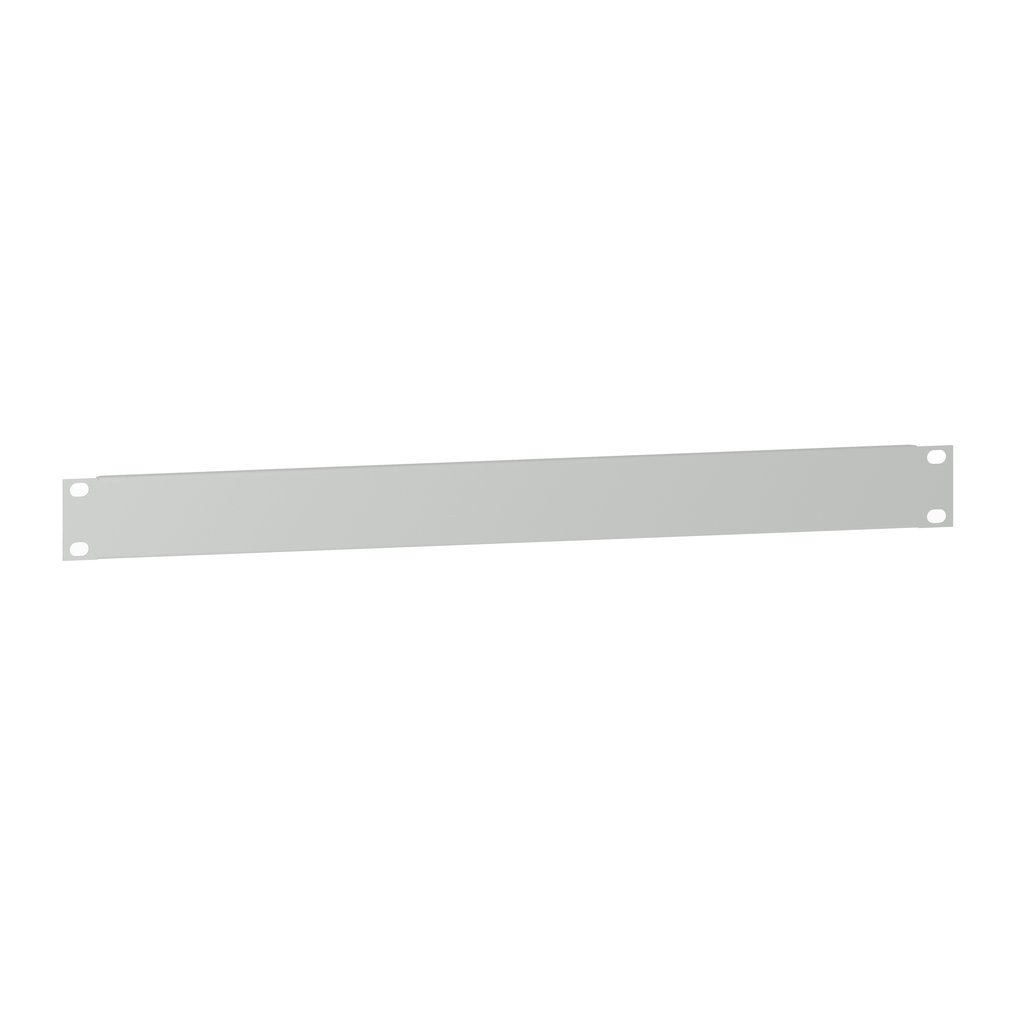

Actassi - 19" plain plate - 1U - steel - RAL7035 - 15/10mm
Front panel fixed to the 19-inch uprights for cable management. Steel front panel, RAL7035, light grey. 1U high panel.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Actassi |
|---|---|
| Product Or Component Type | 19" front panel |
| Color | Gray RAL 7035) |
| Device Application |
|
| Warranty | 18 months |
| Number Of Rack Unit | 1U |
| Width | 465 mm |
| Height | 44.45 mm |
| Mounting Support | 19" rack, front or rear |
| Material | sheet steel |
| Surface Finish | epoxy-polyester powder |
| Number Of Units 19" | 1 |
| Thickness | 1.5 mm |
| Product Compatibility |
|
| Fixing Mode | by 19" fixing element 19" uprights of rack |
| Mounting Location | on vertical uprights |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
