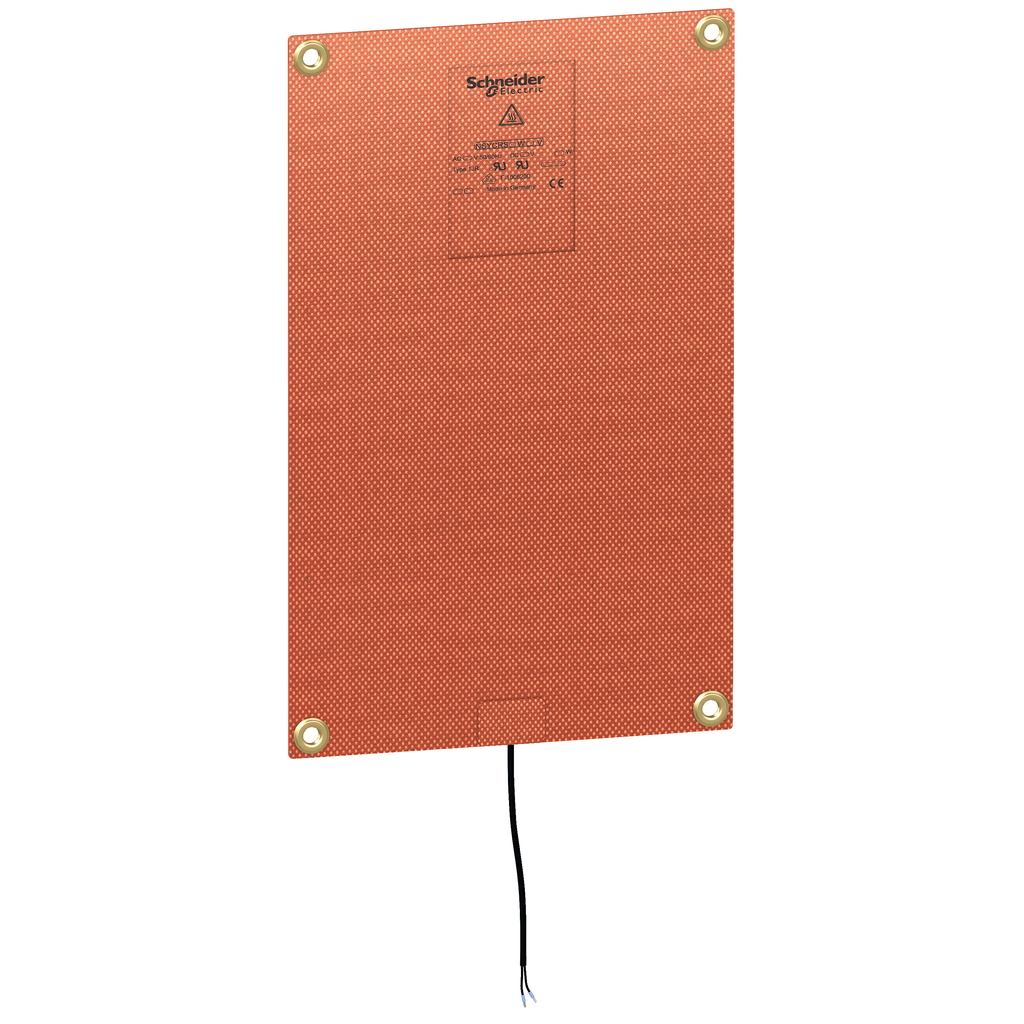

NSYCRS50W240V - Climasys Ultra thin resistance heater low starting current 50W 240V 200x320mm

NSYCRS50W240V

Add to Quote Catalogue

Input Voltage	240 V AC 50/60 Hz
Electrical Connection	cable 2 m
Power Range	50 W
Product Or Component Type	ultra thin resistance heater
Product Name	ClimaSys CR
Range	ClimaSys
Warranty	18 months
Ambient Air Temperature For Operation	-60-70 °C
Width	external 320 mm
Height	external 200 mm
Mounting Support	Telequick mounting plate DIN rail adhesive Velcro standard mounting plate
Fixing Mode	by 4 screws
Material	silicone rubber
Operating Position	vertical horizontal
Condition Of Use	heaters must be installed with a thermal controller electrical protection is needed air sealed enclosure
Temperature Setting Range	-40-70 °C
Device Composition	6 self-adhesive Velcro pads 6 plastic spacers 4 Telequick nuts 4 clip-on nuts fixing accessories
Depth	external 1.6 mm
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2103012EN
Sustainable Offer Status	Green Premium product
Eu Rohs Directive	Compliant
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
