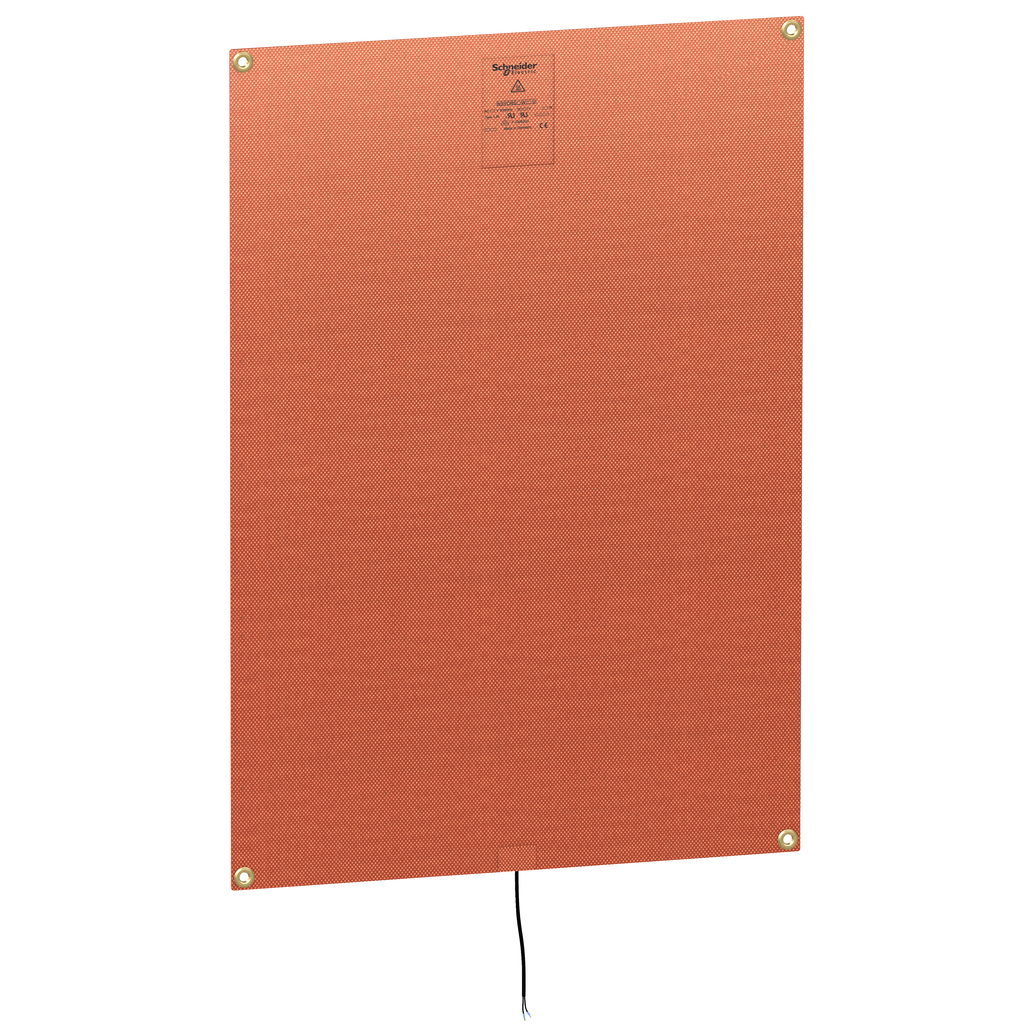

NSYCRS200W240V - Climasys Ultra thin resistance heater low starting current 195W 240V 400x650mm

NSYCRS200W240V

Add to Quote Catalogue

Input Voltage	240 V AC 50/60 Hz
Electrical Connection	cable 2 m
Power Range	195 W
Product Or Component Type	ultra thin resistance heater
Product Name	ClimaSys CR
Range	ClimaSys
Warranty	18 months
Ambient Air Temperature For Operation	-60-70 °C
Width	external 650 mm
Height	external 380 mm
Mounting Support	adhesive Velcro Telequick mounting plate standard mounting plate DIN rail
Fixing Mode	by 4 screws
Material	silicone rubber
Operating Position	horizontal vertical
Condition Of Use	air sealed enclosure heaters must be installed with a thermal controller electrical protection is needed
Temperature Setting Range	-40-70 °C
Device Composition	6 self-adhesive Velcro pads 6 plastic spacers 4 Telequick nuts 4 clip-on nuts fixing accessories
Depth	external 1.6 mm
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2103012EN
Sustainable Offer Status	Green Premium product
Eu Rohs Directive	Compliant
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
