NSYCR20WU1

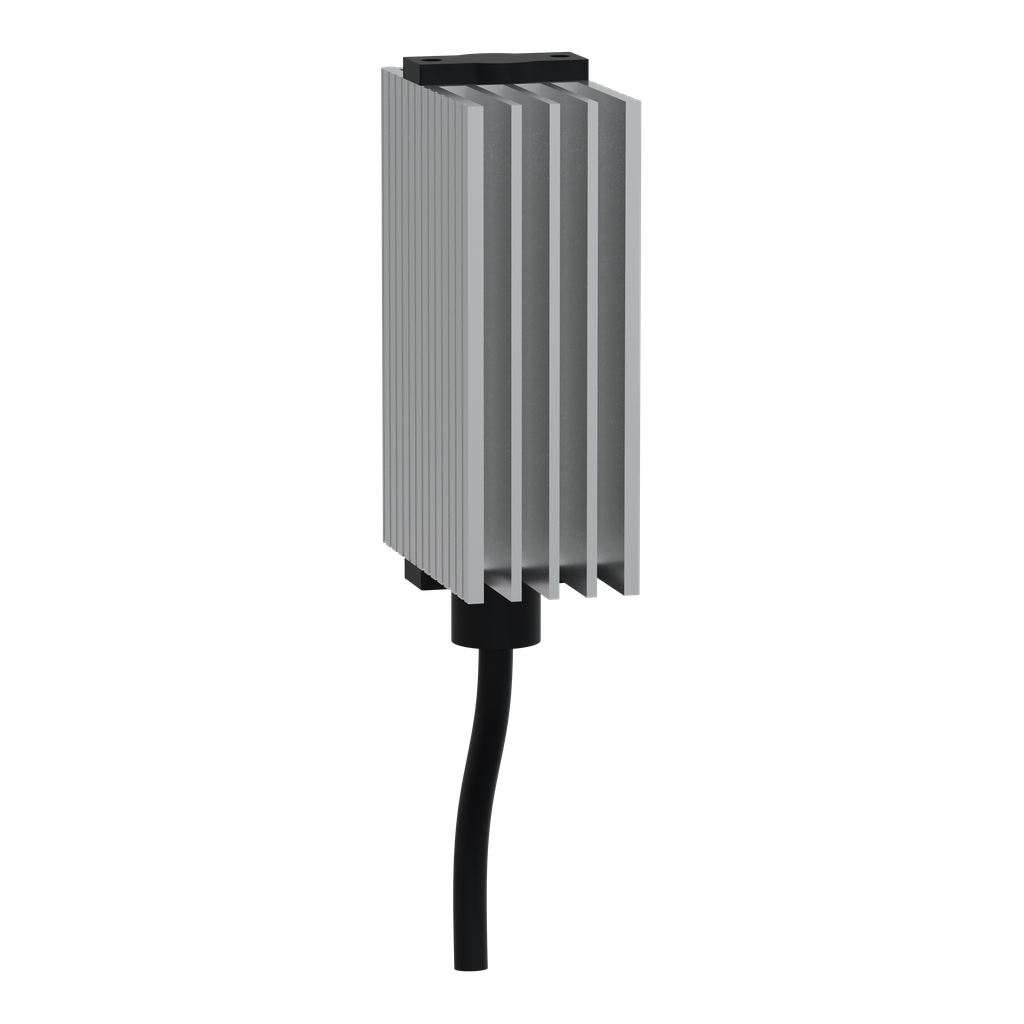

ClimaSys PTC heating resistance 20W, 12-24V
ClimaSys PTC heating resistance. 20W, 12-24V DC. (-40 to 70)°C temp for operation. Electrical connection is cable 2 x 0.75 mm² length is 300 mm. 35 mm DIN rail mounting support. Extruded aluminium body. IP20 Protection. Electrical protection needed, must be installed with a thermal controller.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Input Voltage | 12...24 V DC |
|---|---|
| Electrical Connection | cable 2 x 0.75 mm² 300 mm |
| Power Range | 20 W |
| Product Or Component Type | resistance heater |
| Product Name | ClimaSys CR |
| Range | ClimaSys |
| Warranty | 18 months |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -40-70 °C |
| Mounting Support | 35 mm DIN rail |
| Fixing Mode | by clips |
| Material | body extruded aluminium |
| Operating Position | vertical |
| Condition Of Use |
|
| Ip Degree Of Protection | IP20 |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2103011EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
Documents
- Spec Sheet
- INSULATED HEATERS INSTRUCTIONS - ENNA07924TE (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures US Catalog 2022 - SE_Enclosure_US_2022_V0 (pdf)
- Universal Enclosures - Stainless Steel Enclosures for Aggressive Environments - 2021 Selection Guide - UEMKG001EN_(web) (pdf)
- Universal Enclosures - Quick Selection Guide (2023 EN) - UEMKCAT034EN_(web) (pdf)
