NSYCR100WU2

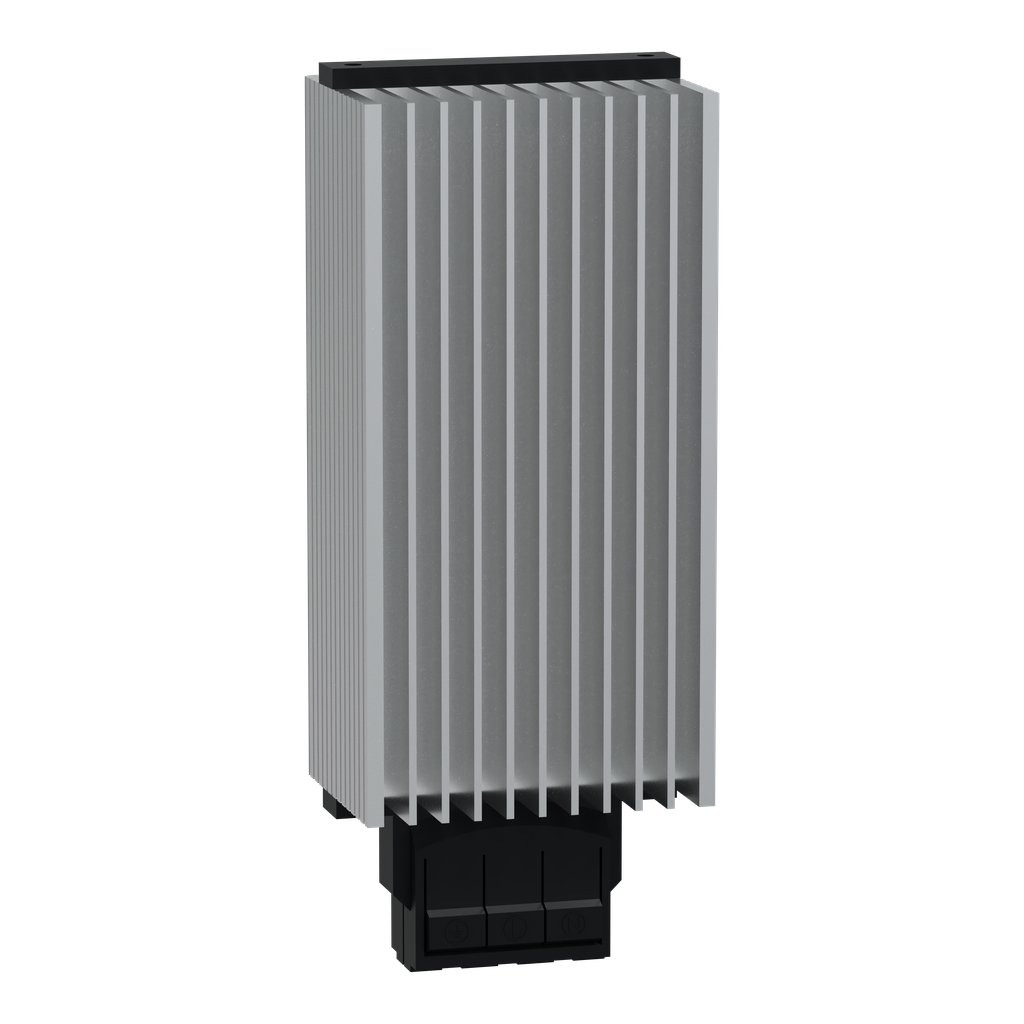

ClimaSys PTC heating resistance 100W 110-250V
ClimaSys PTC heating resistance. 100W, 110-250V AC, 50/60 Hz. Vertical operating position. -40-70 °C ambient temp for operation. 35 mm DIN rail mounting support. Extruded aluminium body. IP20 Protection. Electrical protection needed, must be installed with a thermal controller.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Compatibility |
|
|---|---|
| Power Range | 90 W |
| Product Or Component Type | resistance heater |
| Product Name | ClimaSys CR |
| Range | ClimaSys |
| Input Voltage | 110...250 V AC 50/60 Hz |
| Warranty | 18 months |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -40-70 °C |
| Mounting Support | 35 mm DIN rail |
| Fixing Mode | by clips |
| Condition Of Use |
|
| Depth | 65 mm |
| Width | 85 mm |
| Height | 200 mm |
| Material | body extruded aluminium |
| Operating Position | vertical |
| Ip Degree Of Protection | IP20 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2103011EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant |
| Lead Time | Usually Ships within 4 Weeks |
