NSYBRF8PLAG

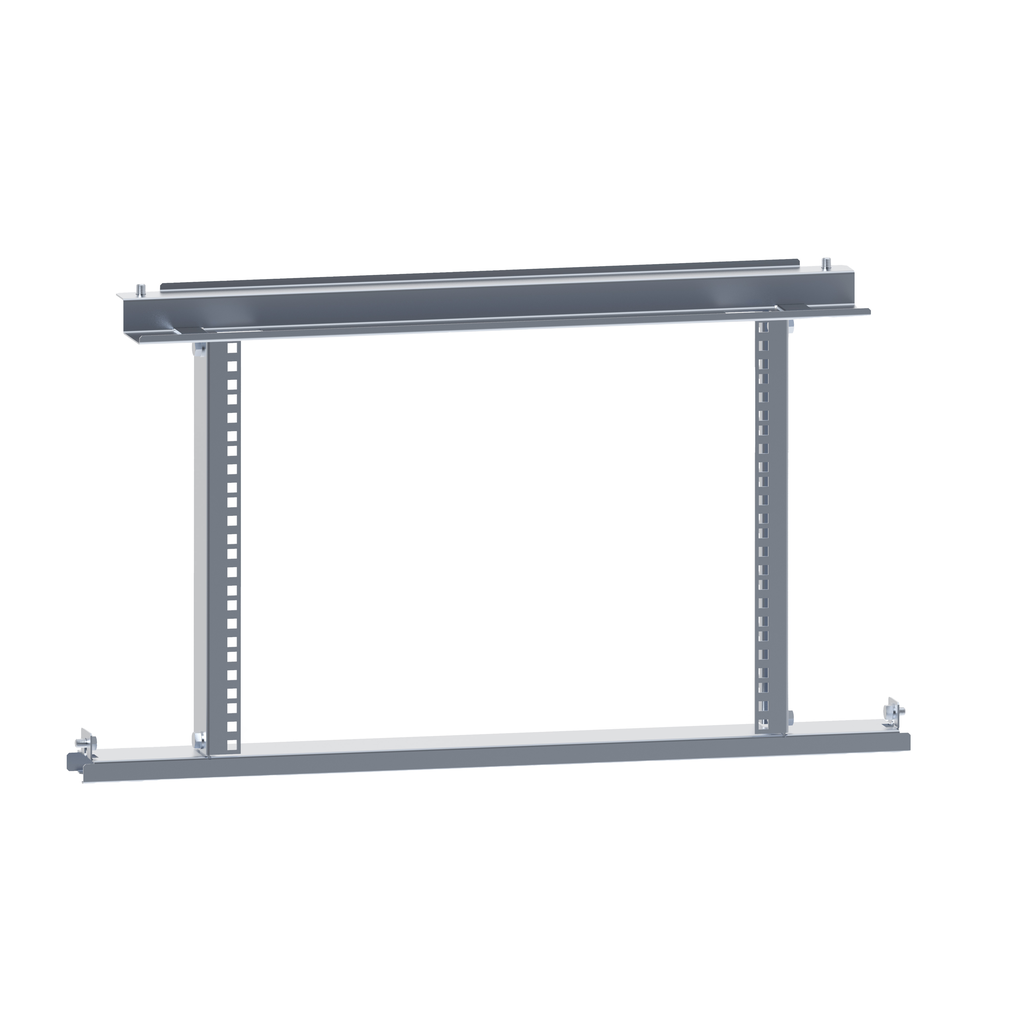

19" fixed chassis 8U forPLA enclosure H500xW750mm
Specifications
| Rack Type | fixed |
|---|---|
| Range Compatibility | Thalassa (Thalassa PLA) |
| Accessory / Separate Part Category | mounting accessory |
| Quantity Per Set | set of 1 |
| Product Or Component Type | 19" rack |
| Number Of Units 19" | 8 |
| Device Composition |
|
| Device Application | multi-purpose |
| Range | Thalassa |
| Mounting Location | front of enclosure |
| Height | nominal 500 mm |
| Fixing Mode | by fixing element |
| Material | sheet steel |
| Surface Finish | epoxy-polyester powder |
| Color | Gray RAL 7035) |
| Thickness | 2 mm |
| Lock Type | lock 5 mm double bar |
| Permanent Permissible Load | 3 kg per unit |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110921EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
