NSYBF1U25P
19" fixed shelf 1U on 2 uprights D250 with permissive load 15Kg

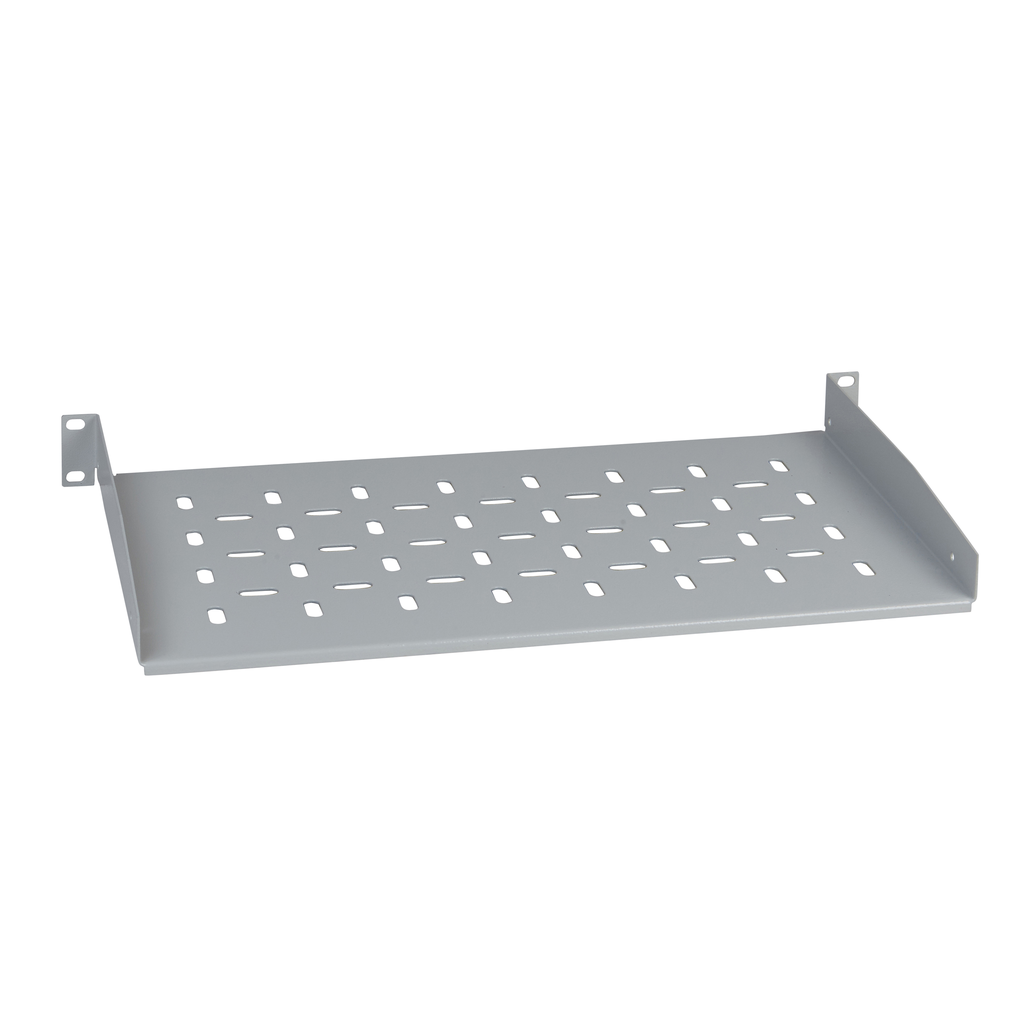

Shelf fixed to the front or rear uprights of the 19-inch rack. Sheet steel, RAL 7035 grey paint, 15kg acceptable load. Dimensions of this tray are 1U in heigth, 250mm in depth. This shelf is perforated.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Actassi |
|---|---|
| Product Or Component Type | fixed shelf |
| Color | Gray RAL 7035) |
| Accessory / Separate Part Type | fixed perforated shelf |
| Device Application |
|
| Warranty | 18 months |
| Surface Finish | epoxy-polyester powder |
| Thickness | 5 mm |
| Fixing Mode | by 19" fixing element 19" uprights of rack |
| Depth | 250 mm |
| Permanent Permissible Load | 15 kg |
| Number Of Rack Unit | 1U |
| Width | 465 mm |
| Height | 44.45 mm |
| Mounting Support | 19" rack, front or rear |
| Material | sheet steel |
| Range Compatibility |
|
| Number Of Units 19" | 1 |
| Product Compatibility | Spacial SF-S, SF-E, VDM, PLA enclosures |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP100103EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Lead Time | Usually Ships within 4 Weeks |
| Presentation | Power Management |
