NSYBBF1U60P

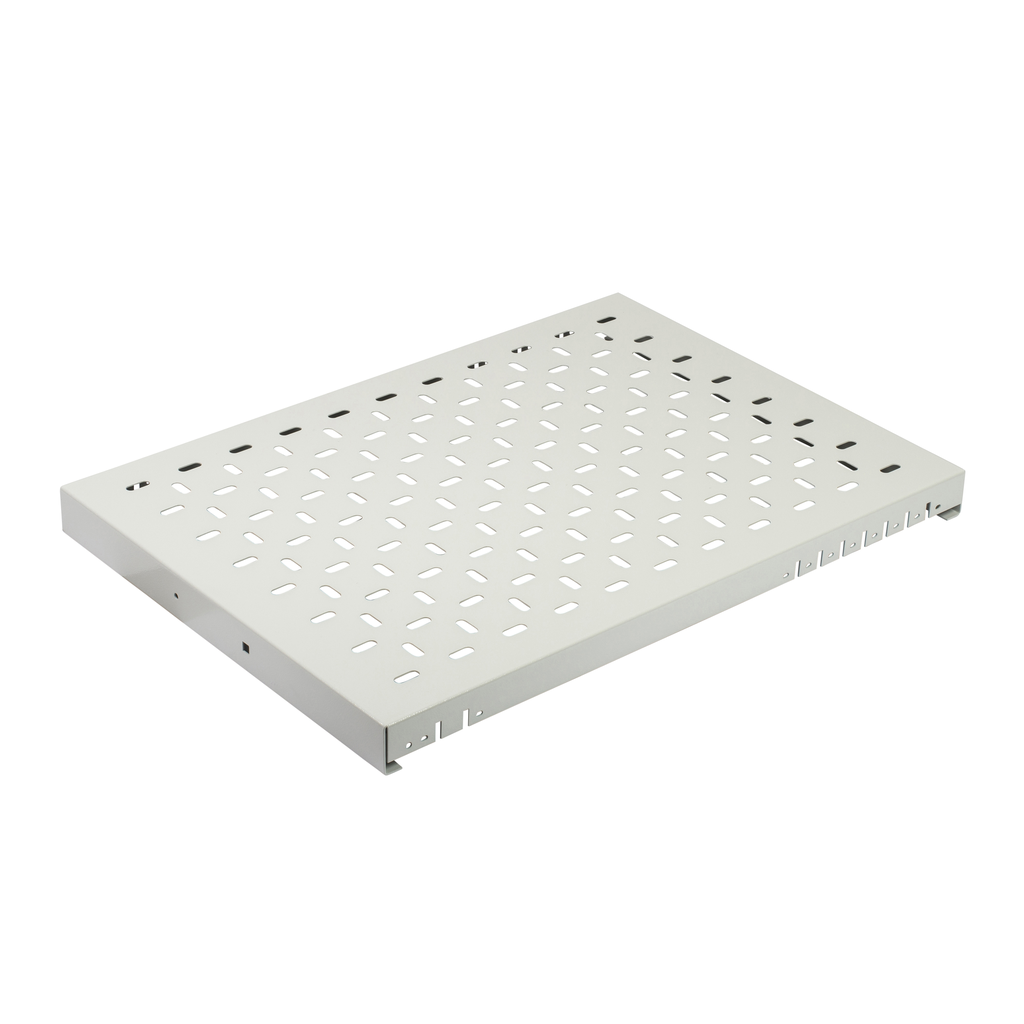

Actassi - perforated tray - 1U - depth 800 mm
Shelf fixed by attachment without tools between the front and rear 19-inch uprights. Sheet steel, RAL 7035 grey paint, 100kg acceptable load. Suitable for 800mm or 1000mm rack depth, distance between each fixing center is 458mm, adjustable in step of 25mm. This shelf is perforated.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Actassi |
|---|---|
| Accessory / Separate Part Category | support accessory |
| Product Or Component Type | fixed perforated shelf |
| Color | Gray RAL 7035) |
| Warranty | 18 months |
| Adjustment | adjustable from -100 to + 50 mm, in steps of 25 mm |
| Number Of Rack Unit | 1U |
| Enclosure/Cubicle Description |
|
| Material | sheet steel |
| Number Of Rack Unit |
|
| Range Compatibility |
|
| Distance Between Centers | 458 mm |
| Fixing Mode | direct fixing |
| Depth | rack 600 mm |
| Mounting Location | between the front and rear 19" uprights |
| Permanent Permissible Load | 100 kg |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP100103EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Lead Time | Usually Ships within 4 Weeks |
| Presentation | Power Management |
