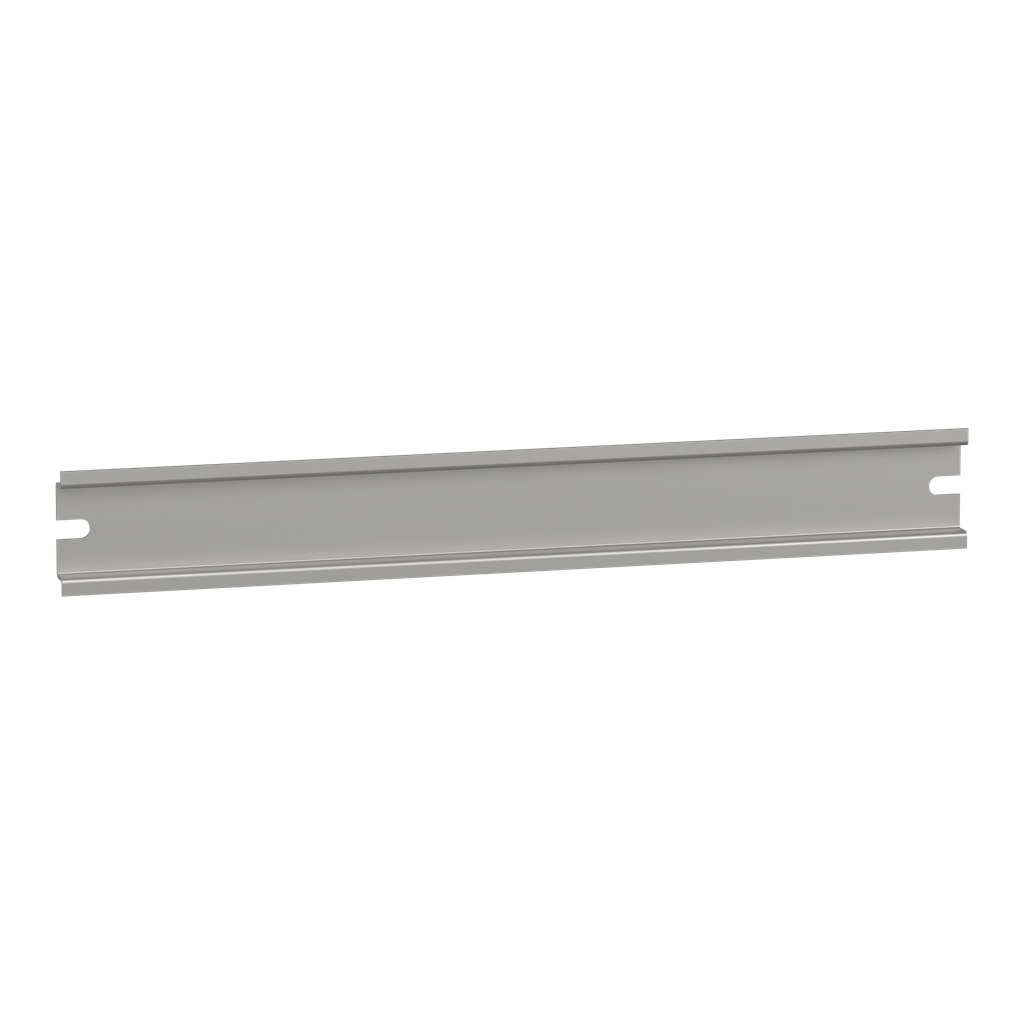

NSYAMRD29357TB
Symmetrical DIN rail, H35xD7.5 mm Length: 264 mm, for boxes of 275 mm (Internal)
Specifications
| Accessory / Separate Part Category | installation accessory |
|---|---|
| Product Or Component Type | rail |
| Range | Thalassa |
| Quantity Per Set | set of 10 |
| Device Application | multi-purpose |
| Warranty | 18 months |
| Range Compatibility |
|
| Surface Finish | zinc coated |
| Thickness | 1 mm |
| Device Composition | 1 rail |
| Net Weight | 0.092 kg |
| Type Of Rail | symmetrical DIN |
| Length |
|
| Width | 7.5 mm |
| Height | 35 mm |
| Material | steel |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2202003EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
