NSYAELYTCRG8

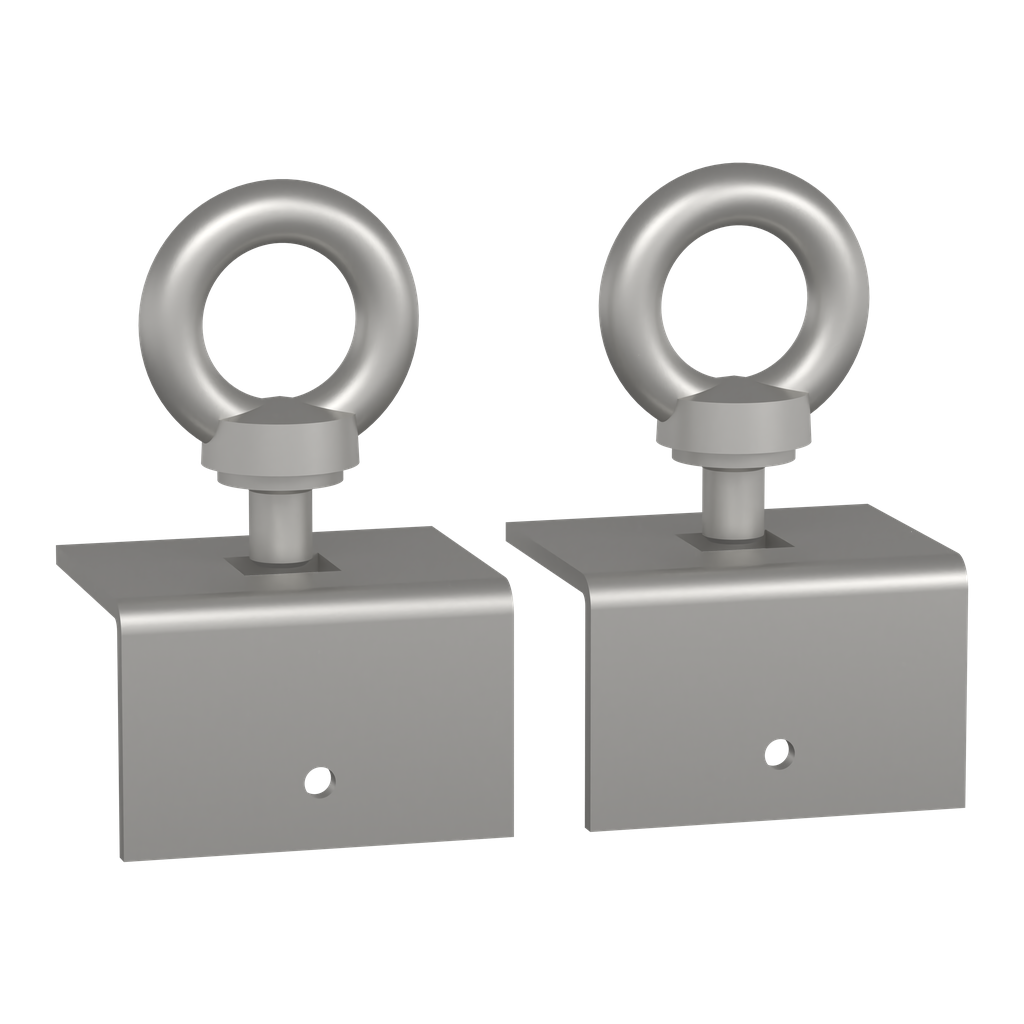

Set of 2 lifting eyes M8. Maximum load: 200kg
Specifications
| Range Compatibility |
|
|---|---|
| Accessory / Separate Part Category | lifting accessory |
| Quantity Per Set | set of 1 |
| Product Or Component Type | lifting eye |
| Device Composition |
|
| Device Application | multi-purpose |
| Range | Spacial |
| Mounting Location | enclosure top |
| Warranty | 18 months |
| Iso Thread | M8 |
| Width | 120 mm |
| Height | 55 mm |
| Material |
|
| Surface Finish | zinc coated |
| Diameter | 29 mm |
| Net Weight | 0.24 kg |
| Depth | 30 mm |
| Fixing Mode | screwed |
| Permanent Permissible Load | 200 kg slinging at 60° |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP100104EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
