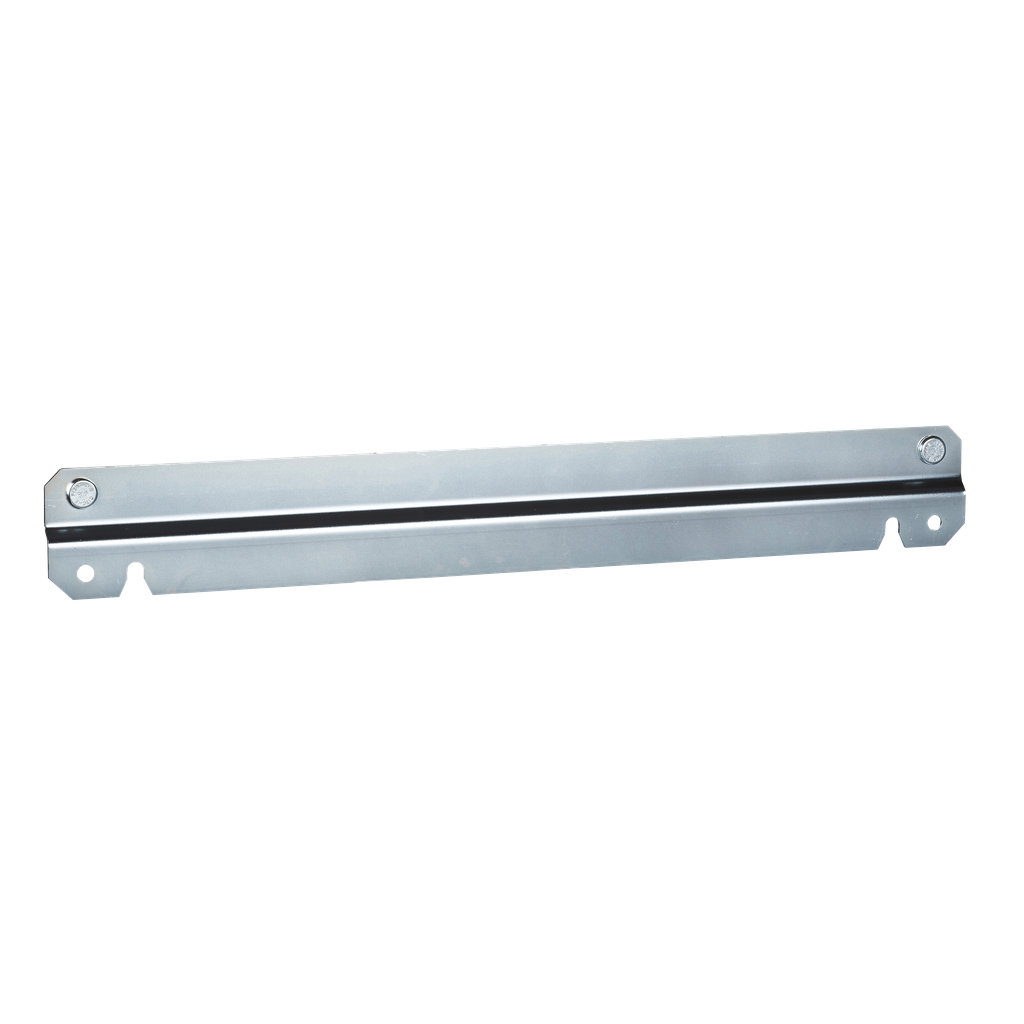

NSYAEFPFS3DW60 - Kit for heavy load. Kit composed with 2 brackets. Maximum load 400 kg

NSYAEFPFS3DW60

Add to Quote Catalogue

Enclosure Nominal Dimensions	H: 400 mm W: 600 mm D: 200 mm - H: 400 mm W: 600 mm D: 250 mm - H: 600 mm W: 600 mm D: 200 mm - H: 600 mm W: 600 mm D: 250 mm - H: 600 mm W: 600 mm D: 300 mm - H: 600 mm W: 600 mm D: 400 mm - H: 800 mm W: 600 mm D: 200 mm - H: 800 mm W: 600 mm D: 250 mm - H: 800 mm W: 600 mm D: 300 mm - H: 800 mm W: 600 mm D: 400 mm - H: 1000 mm W: 600 mm D: 250 mm - H: 1000 mm W: 600 mm D: 300 mm - H: 1000 mm W: 600 mm D: 400 mm - H: 1200 mm W: 600 mm D: 300 mm - H: 1200 mm W: 600 mm D: 400 mm
Range Compatibility	Spacial (Spacial S3DC)
Accessory / Separate Part Category	fixing accessory
Quantity Per Set	set of 1
Product Or Component Type	wall fixing support
Device Composition	fixing screws 2 lug 2 pre-mounted sealing gasket
Device Application	multi-purpose
Range	Spacial
Mounting Location	top and bottom, on rear of the enclosure
Warranty	18 months
Width	600 mm
Height	fixing centers 47 mm
Material	zinc coated steel
Net Weight	2.004 kg
Depth	wall-enclosure separation 7.5 mm
Fixing Mode	screwed M8 - inside
Permanent Permissible Load	350 kg
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP100104EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation	Free of Substances of Very High Concern above the threshold
Reach Free Of Svhc	Yes
