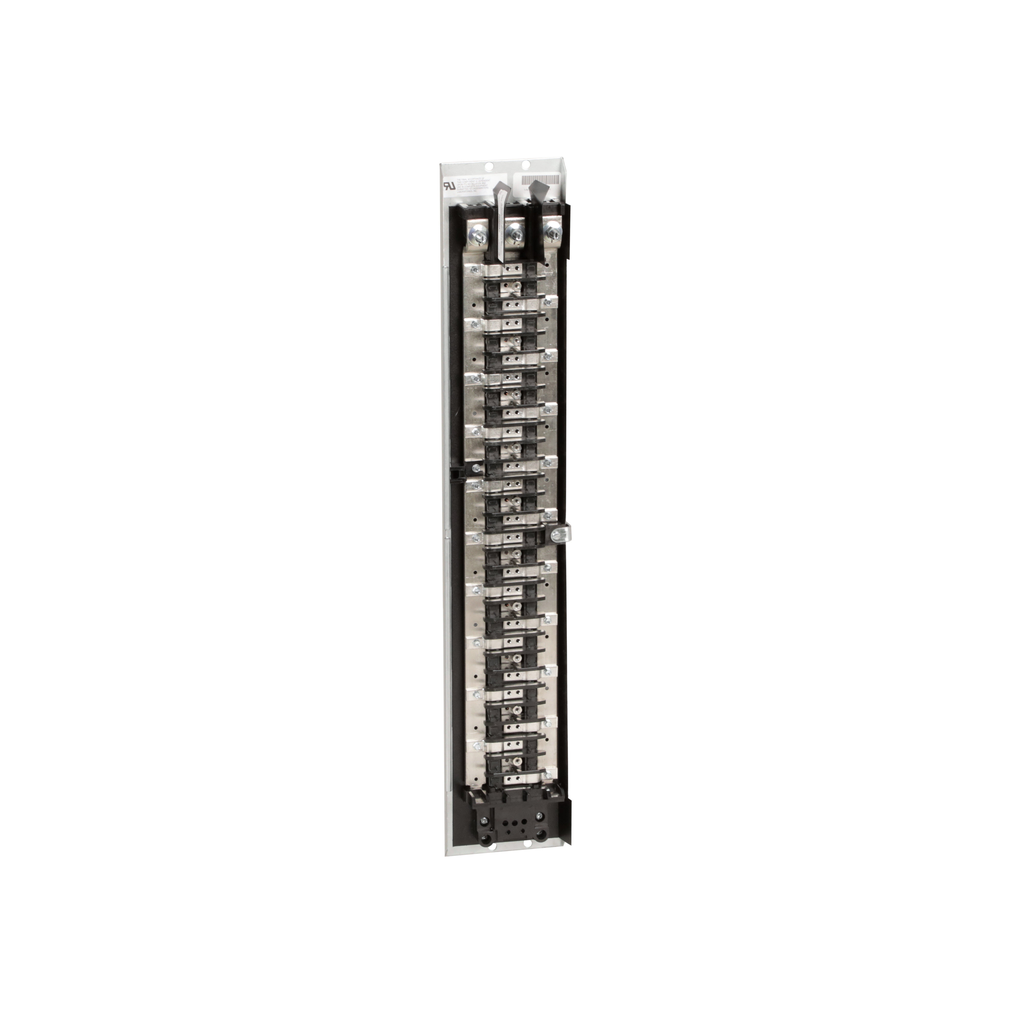

NQOB83032BL - Panelboard interior, NQ, main lugs, 225A, 30 pole spaces, 3 phase, 3 wire, 208Y/120VAC, left

NQOB83032BL

Add to Quote Catalogue

Circuit Breaker Type	QOB QOB-VH QHB
Load Center Type	main lugs
Material	aluminium
Warranty	18 months
Tightening Torque	5.65-5.65 N.m (AWG 14...AWG 1/0) 20.34-20.34 N.m (AWG 10...AWG 2/0) 20.34-20.34 N.m (AWG 6...AWG 2/0) 28.74-28.74 N.m (AWG 6...300 kcmil) 5.65-5.65 N.m (AWG 4...AWG 1/0) 8.74-8.74 N.m (AWG 4...300 kcmil)
Line Rated Current	225 A
[Iu] Rated Interrupted Current	10 kA 22 kA 65 kA
Wiring Configuration	3-wire
Number Of Spaces	30
Phase	3 phase
[Ue] Rated Operational Voltage	208Y/120 V AC
China Rohs Regulation	X
Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Standards	UL CSA
