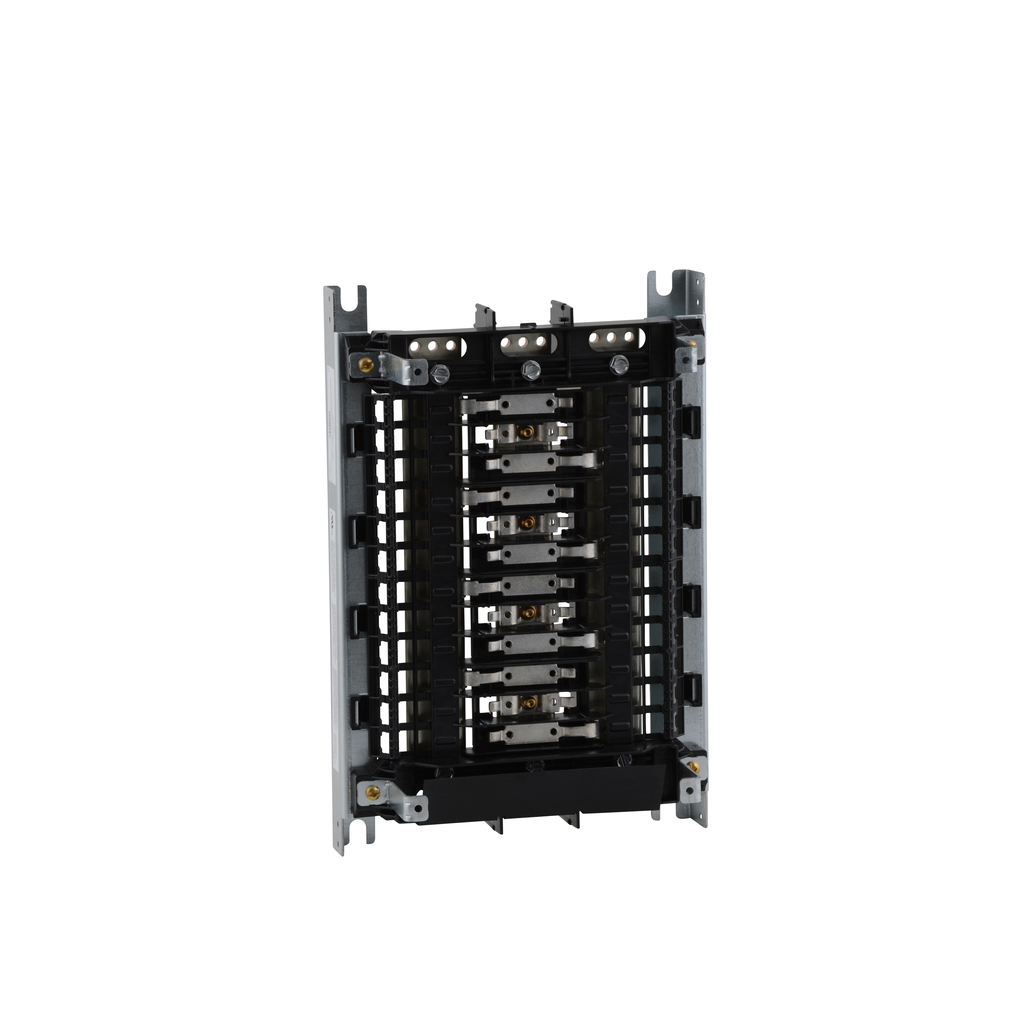

NQM342L2CAS - Panelboard interior, NQ, main lugs, 225A, Cu bus, 42 pole spaces, 3 phase, 4 wire, 240 VAC, 48 VDC, APC, short

NQM342L2CAS

Add to Quote Catalogue

Circuit Breaker Type	QOB QOB-VH QHB
Product Or Component Type	interiors
Load Center Type	main lugs
Material	copper
Height	30 in
Connections - Terminals	lug line AWG 6...350 kcmil aluminium lug neutral AWG 6...350 kcmil aluminium
Tightening Torque	4.52-5.65 N.m 13.30-67.43 mm² (AWG 6...AWG 2/0) 11.3-11.3 N.m 13.30-67.43 mm² (AWG 6...AWG 2/0) 31.07-31.07 N.m 13.30-177.3 mm² (AWG 6...350 kcmil) 31.07-31.07 N.m 13.30-126.7 mm² (AWG 6...250 kcmil) 31.07-31.07 N.m 107.2-152 mm² (AWG 4...300 kcmil)
Line Rated Current	250 A
[Iu] Rated Interrupted Current	10 kA 22 kA 65 kA
Wiring Configuration	4-wire
Number Of Spaces	42
Phase	3 phase
[Ue] Rated Operational Voltage	240 V AC 48 V DC
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1404010EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Reach Regulation	Free of Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
