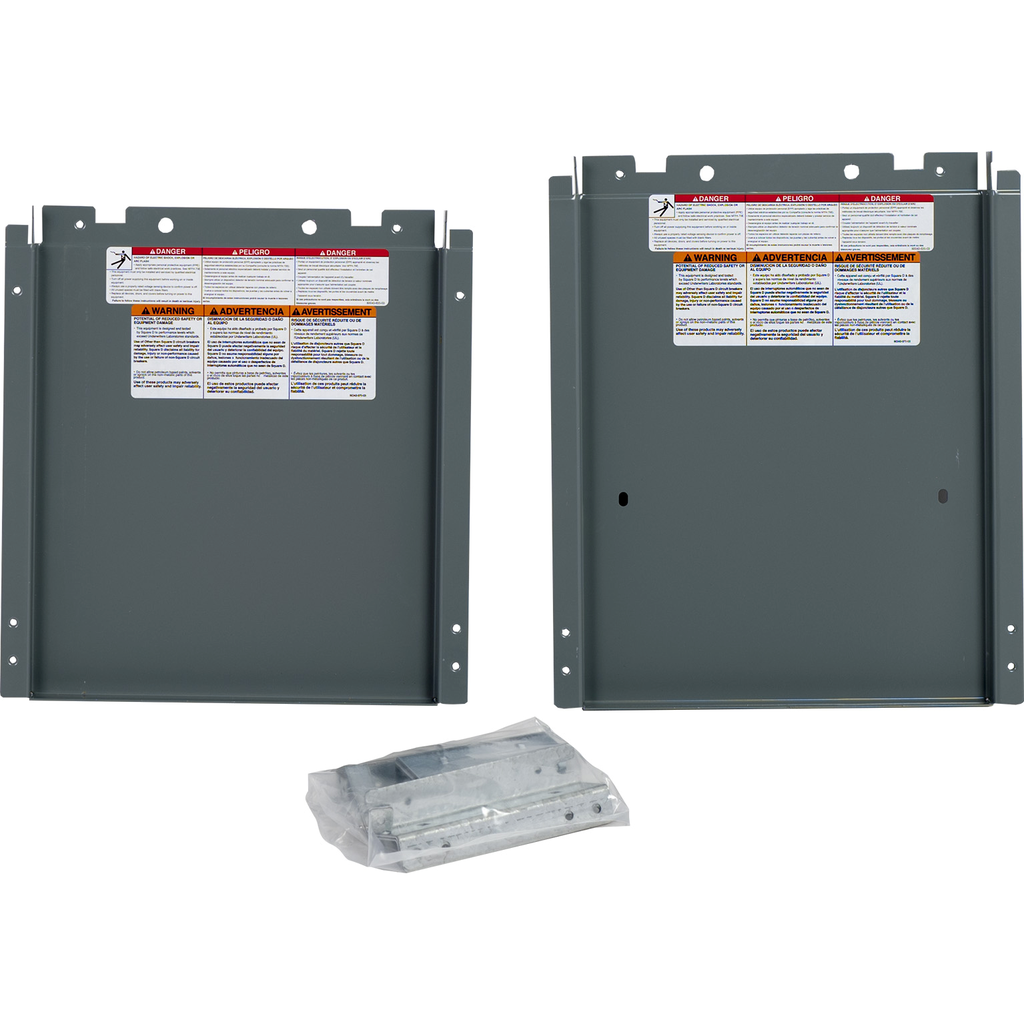

Panelboard accessory, NQ, extension kit, 6 inch rail
NQ Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices. NQ Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NQ Panelboard interiors are field convertible to top or bottom feed. NQ Panelboards are convertible from main lug to main breaker. NQ Panelboards provide 200% rated neutrals for nonlinear loads. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. This trim and rail extension kit contains the parts required to provide a 6 inch extension.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Circuit Breaker Type | J-frame |
|---|---|
| Product Or Component Type | extension |
| Warranty | 18 months |
| Product Destination | rail |
| Enclosure Nominal Height | 6 in |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1404019EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
Documents
- Spec Sheet
- Square D NQ Circuit Breaker Panelboards Catalog - 1640CT0801 (pdf)
- Digest Catalog 09: Panelboards - 0100CT1901_SEC-09 (pdf)
- NQ, NF, I-Line and QMB Panelboard Products - NQ+NF+and+I+line+and+QMB+Panels+final+-English+ (pdf)
- NQ Panelboard Trim and Rail Extension Kit - Installation Instructions - 80043-732-02 (pdf)
- NQ Panelboard Trim and Rail Extension Kit - Installation Instructions - 80043-732-01 (pdf)
