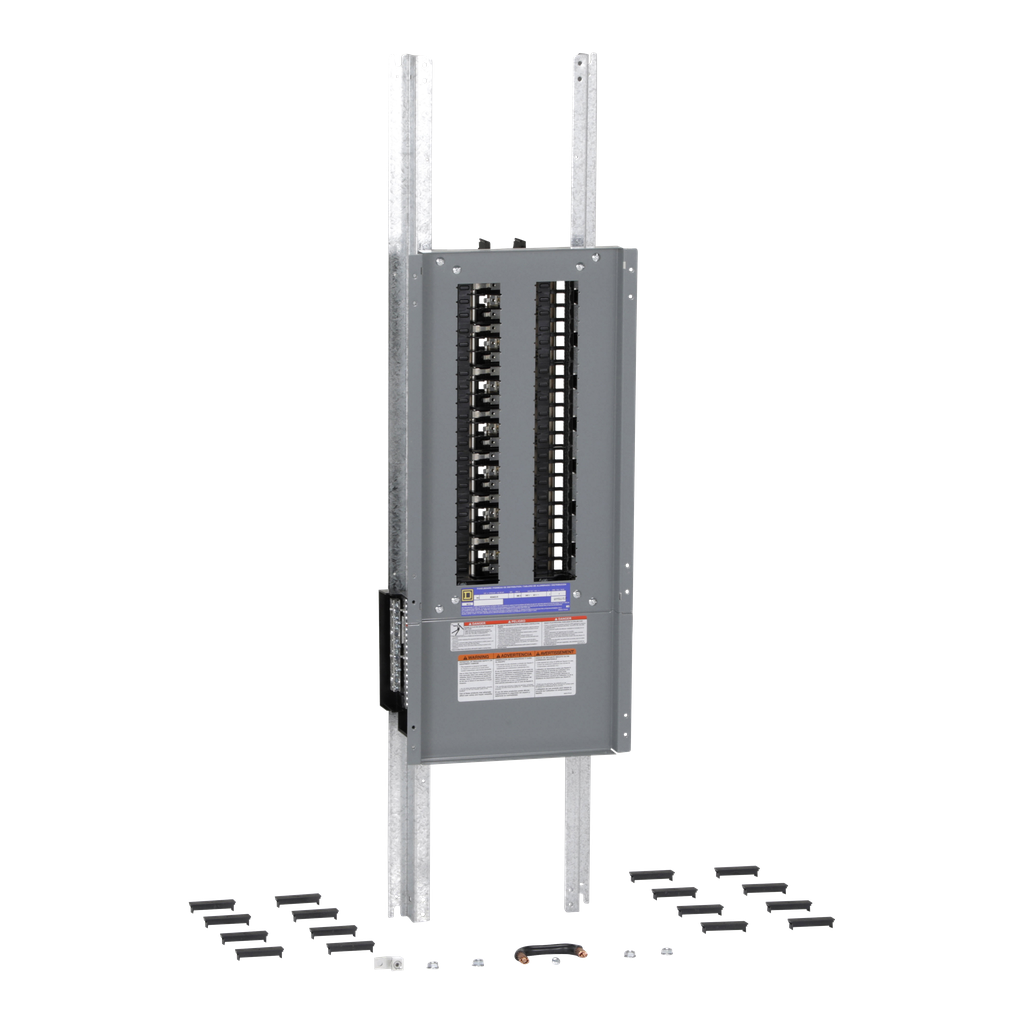

This interior main lugs panelboard is one of the Schneider Electric™ NQ lighting and appliance panelboards. It is a 3 phase, 4 wire panelboard with a plated copper bus and tin plated aluminum lugs suitable for aluminum or copper. The phase lugs accept 2-1/0 AWG to 750kcmil conductors, and the neutral lugs accept 1-1/0 AWG to 750kcmil or 2-1/0 AWG to 300kcmil conductors. It has a voltage rating of 240VAC or 48VDC and is rated for 600A line current and 10kA, 22kA, and 65kA interrupted current. It has 42 spaces for bolt on (QOB or QHB) circuit breakers to provide protection for branch circuits. It is compliant with CSA and UL standards.
Brand: Schneider Electric
Add to Quote CatalogueCircuit Breaker Type |
|
---|---|
Product Or Component Type | interiors |
Load Center Type | main lugs |
Material | copper |
Warranty | 18 months |
Height | 45 in |
Connections - Terminals |
|
Enclosure Nominal Depth |
|
Tightening Torque |
|
Line Rated Current | 600 A |
[Iu] Rated Interrupted Current |
|
Wiring Configuration | 4-wire |
Width | 10.44 in |
Number Of Spaces | 42 |
Enclosure Nominal Height | 62 in |
Phase | 3 phase |
Net Weight | 13.37 kg |
Enclosure Nominal Width | 20 in |
[Ue] Rated Operational Voltage |
|
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1404010EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Eu Rohs Directive | Compliant |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Standards |
|
