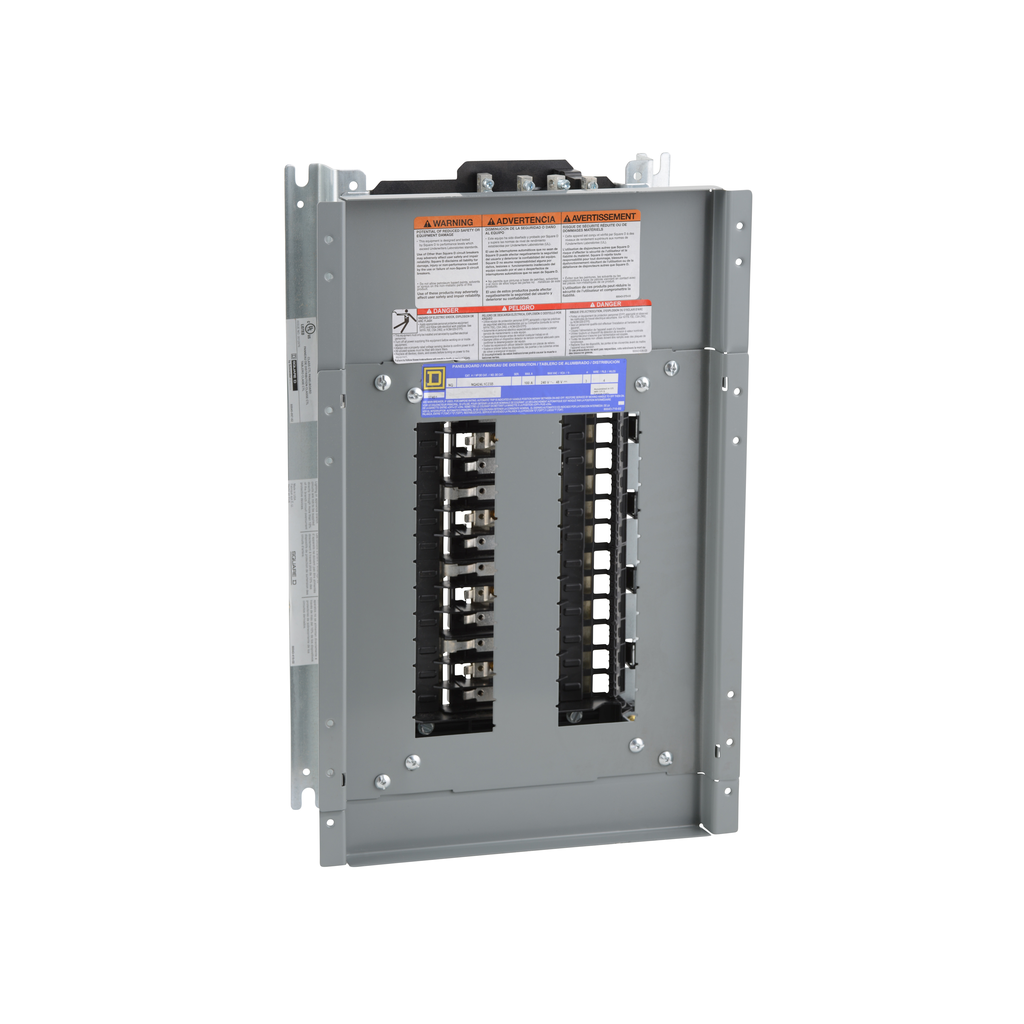

Panelboard interior, NQ, main lugs, 100A, Cu bus, 24 pole spaces, 3 phase, 4 wire, 240 VAC, 48 VDC
NQ Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NQ Panelboards provide 200% rated neutrals for non-linear loads. NQ Panelboards are convertible from main lug to main breaker. Interior has a maximum voltage rating of 240 VAC. This NQ Panelboard interior has a main lug and is rated at 100 A three phase. Interior has an interrupt current rating of up to 65 kA. This interior is for a 4 wire system with 24 circuits and has a copper bus bar. Interior is for QOB, QOBVH and QHB branch circuit breakers. This interior provides protection for your commercial and industrial applications. NQ Panelboard interiors are field convertible to top or bottom feed. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. Lug connections will accept 6 AWG to 2/0 AWG aluminum wire. This interior is UL listed and CSA certified. NQ Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Circuit Breaker Type |
|
|---|---|
| Product Or Component Type | interiors |
| Load Center Type | main lugs |
| Material | copper |
| Warranty | 18 months |
| Height | 18.8 in |
| Connections - Terminals |
|
| Tightening Torque |
|
| Line Rated Current | 100 A |
| [Iu] Rated Interrupted Current |
|
| Wiring Configuration | 4-wire |
| Width | 10.44 in |
| Number Of Spaces | 24 |
| Phase | 3 phase |
| Enclosure Nominal Width | 23 in |
| [Ue] Rated Operational Voltage |
|
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1404019EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Standards |
|
