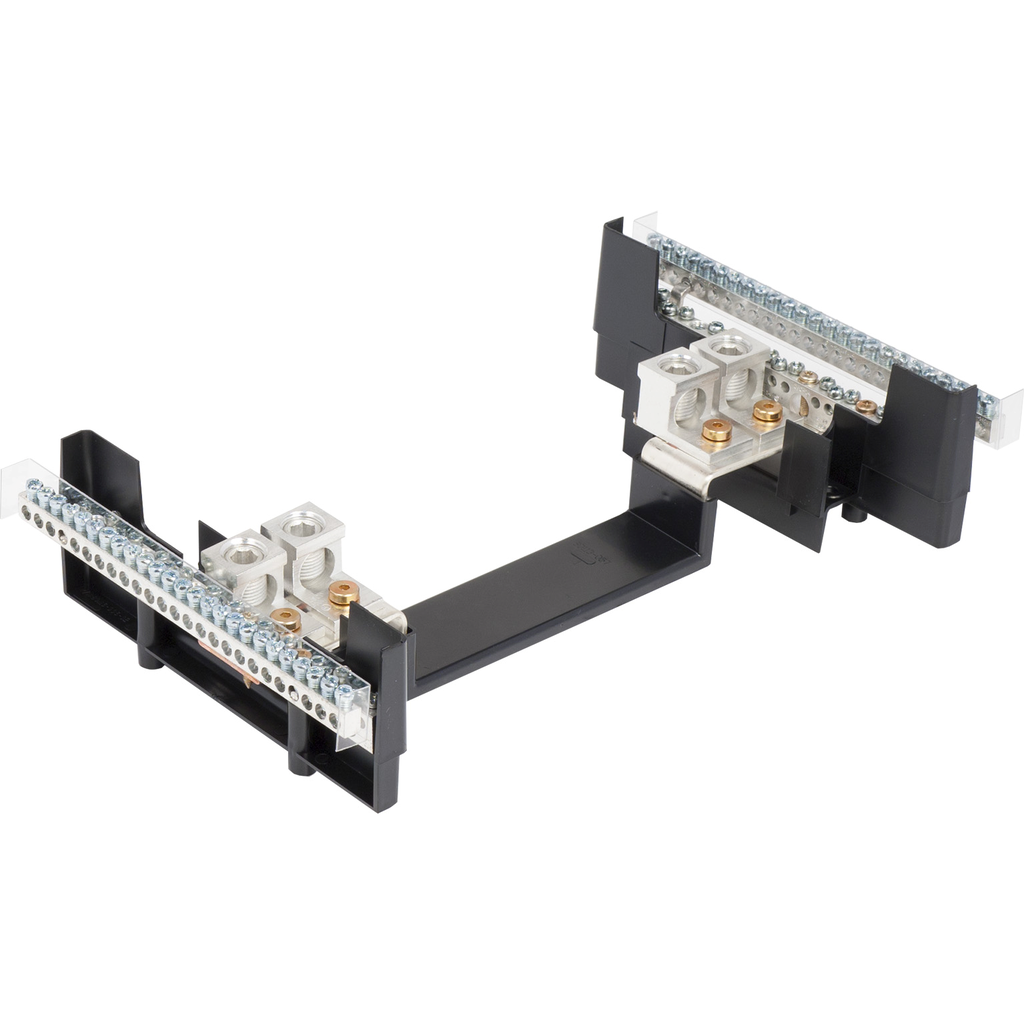

Panelboard accessory, NF, neutral kit, 250A, 200% neutral, aluminum
NF Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices. These interiors provide protection for commercial and industrial applications. NF Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NF Panelboards have modular construction to accept field installable accessories and conversion kits. This NF panelboard neutral assembly is panelboards with sub-feed or thru-feed lugs and the neutrals are 200% rated. This aluminum neutral bar kit consists of one conductor that is rated at 250A. Kit will work with JLL, KI, JGL, JDL, and JJL circuit breakers. Neutral bar kit is UL listed and CSA certified by UL.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Square D |
|---|---|
| Circuit Breaker Type |
|
| Product Or Component Type | neutral bar |
| Warranty | 18 months |
| Line Rated Current | 250 A |
| Number Of Conductors | 2 |
| Product Destination | NF panelboard |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Product Certifications | cULus |
Documents
- Spec Sheet
- Digest Catalog 09: Panelboards - 0100CT1901_SEC-09 (pdf)
- Square D NF Circuit Breaker Panelboards Catalog - 1670CT0701 (pdf)
- NF Panelboard Neutral Kit - Installation Instructions - 80043-754-02 (pdf)
- NF/NFOM Panelboards Installation Instructions and User Guide (80043-741) - 80043-741-03 (pdf)
- NQ, NF, I-Line and QMB Panelboard Products - NQ+NF+and+I+line+and+QMB+Panels+final+-English+ (pdf)
