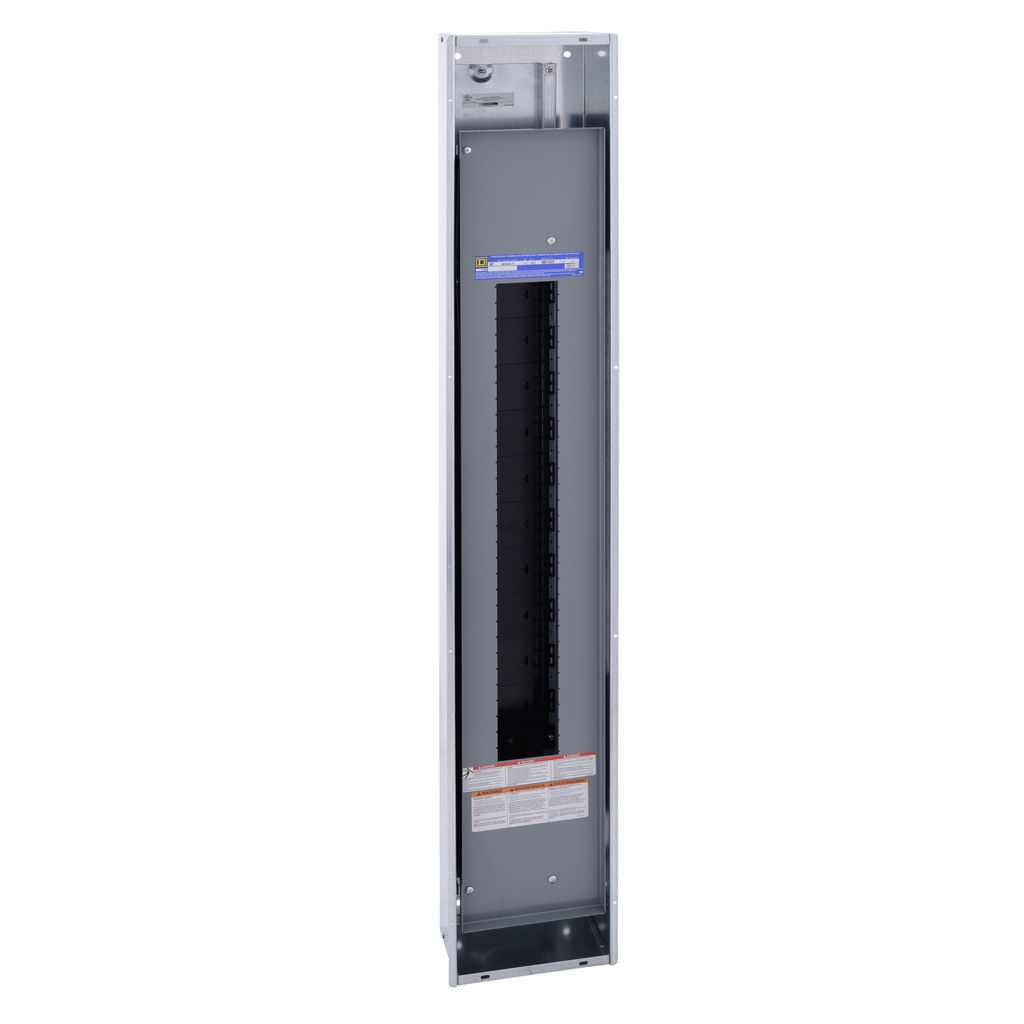

NF8442L2C - Panelboard interior, NF, main lugs, 225A, Cu bus, 42 pole spaces, 3 phase, 4 wire, 480Y/277 VAC bolt on

NF8442L2C

Add to Quote Catalogue

Circuit Breaker Type	EDB/EDG/EDJ
Load Center Type	main lugs
Material	copper
Warranty	18 months
Height	71 in
Connections - Terminals	lug line AWG 6...300 kcmil aluminium/copper lug neutral AWG 6...300 kcmil aluminium/copper
Enclosure Nominal Depth	5.65 in NEMA 1
Tightening Torque	4.52-5.65 N.m 13.30-67.43 mm² (AWG 6...AWG 2/0) 11.3-11.3 N.m 13.30-67.43 mm² (AWG 6...AWG 2/0) 31.07-31.07 N.m 13.30-177.3 mm² (AWG 6...350 kcmil) 31.07-31.07 N.m 13.30-126.7 mm² (AWG 6...250 kcmil) 31.07-31.07 N.m 107.2-152 mm² (AWG 4...300 kcmil)
Line Rated Current	225 A
[Iu] Rated Interrupted Current	65 kA
Wiring Configuration	4-wire
Width	10.44 in
Number Of Spaces	42
Enclosure Nominal Height	71 in
Phase	3 phase
Enclosure Nominal Width	8.625 in
[Ue] Rated Operational Voltage	480Y/277 V AC
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
California Proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Standards	CSA UL
