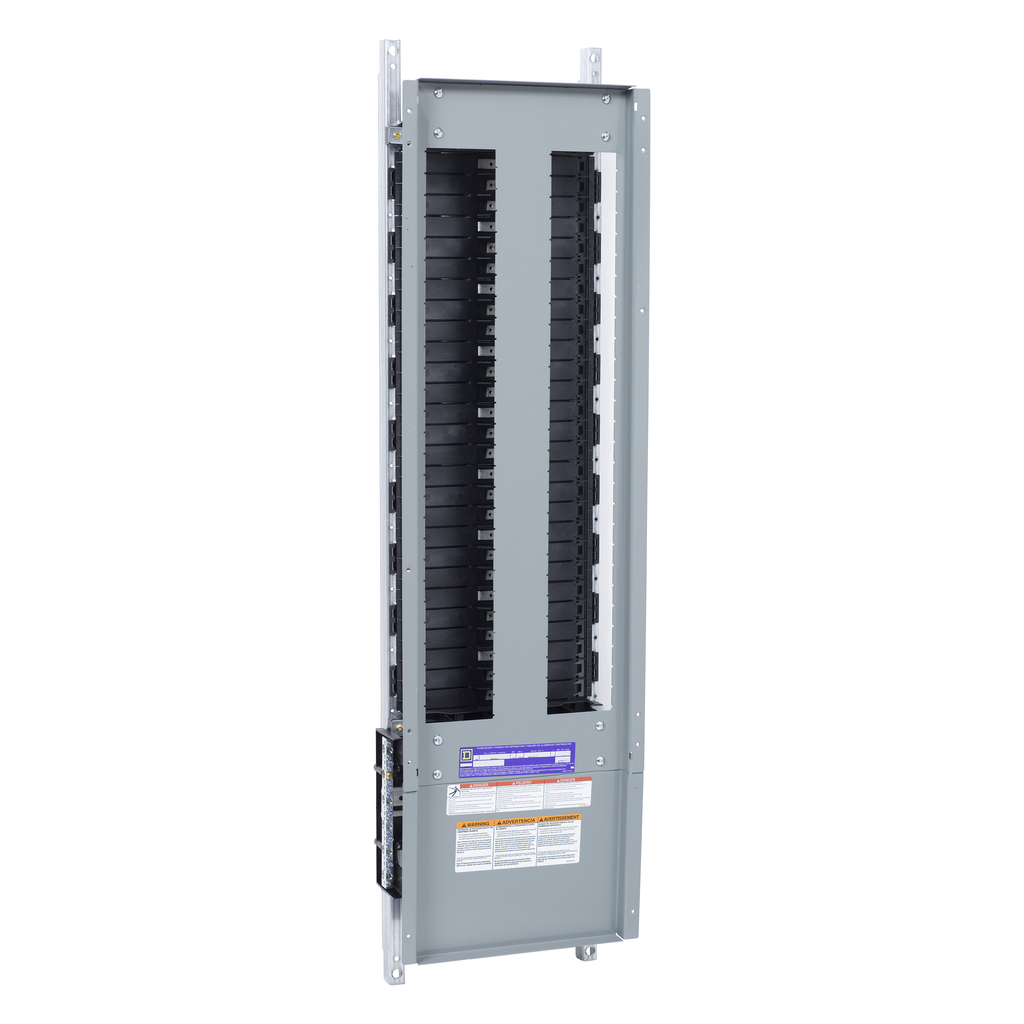

NF454L1C - Panelboard interior, NF, main lugs, 125A, Cu bus, 54 pole spaces, 3 phase, 4 wire, 600Y/347 VAC max

NF454L1C

Add to Quote Catalogue

Circuit Breaker Type	EDB/EDG/EDJ
Load Center Type	main lugs
Material	copper
Warranty	18 months
Height	39 in
Connections - Terminals	lug line AWG 6...AWG 2/0 aluminium lug neutral AWG 6...AWG 2/0 aluminium
Enclosure Nominal Depth	5.75 in NEMA 1 6.5 in NEMA 3R/5/12
Tightening Torque	4.52-5.65 N.m 13.30-67.43 mm² (AWG 6...AWG 2/0) 11.3-11.3 N.m 13.30-67.43 mm² (AWG 6...AWG 2/0) 31.07-31.07 N.m 13.30-177.3 mm² (AWG 6...350 kcmil) 31.07-31.07 N.m 13.30-126.7 mm² (AWG 6...250 kcmil) 31.07-31.07 N.m 107.2-152 mm² (AWG 4...300 kcmil)
Line Rated Current	125 A
[Iu] Rated Interrupted Current	65 kA
Wiring Configuration	4-wire
Width	10.44 in
Number Of Spaces	54
Enclosure Nominal Height	56 in
Phase	3 phase
Net Weight	15.88 kg
Enclosure Nominal Width	20 in
[Ue] Rated Operational Voltage	600Y/347 V AC
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Reach Regulation	Free of Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Standards	CSA C22.2 UL 67
