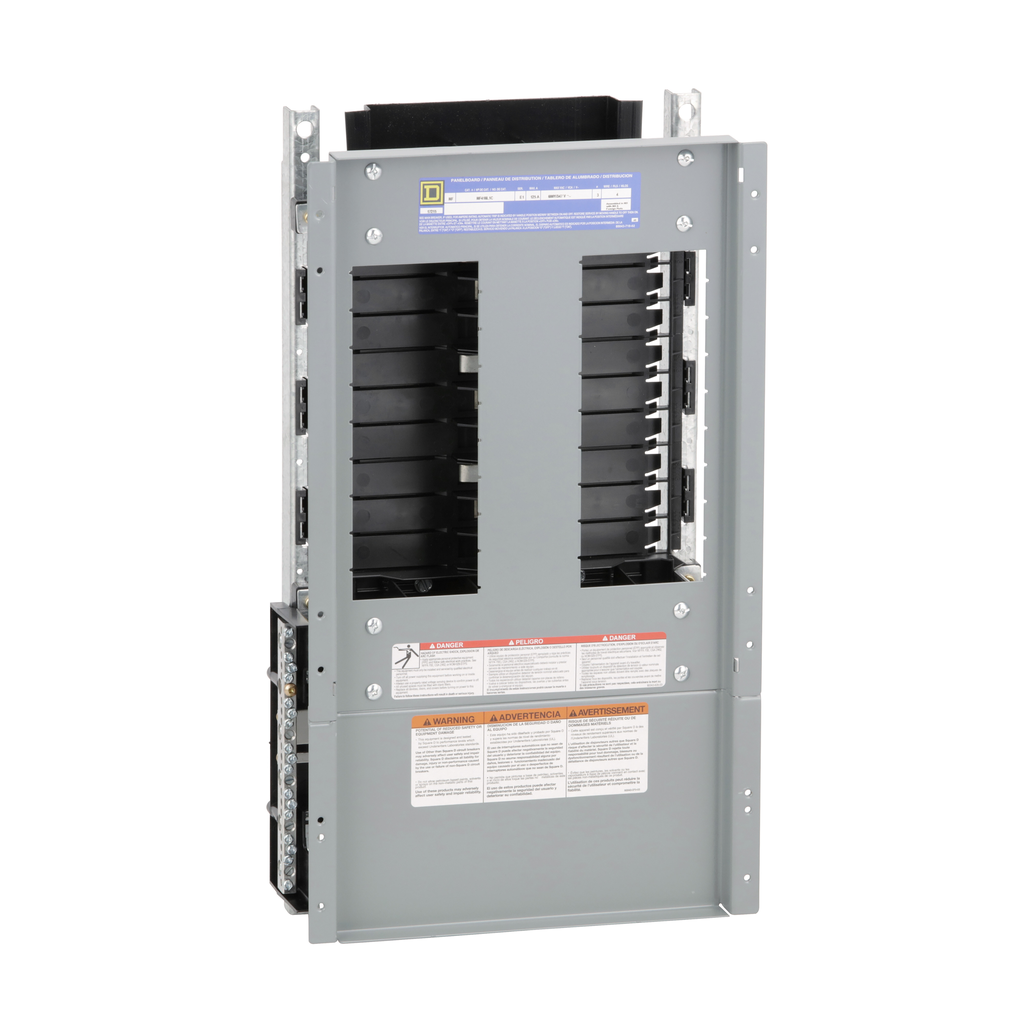

NF Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices. These interiors provide protection for commercial and industrial applications. NF Panelboards feature a wide selection of circuit breakers, accessories, and ready to install kits. NF Panelboards are field convertible to top or bottom feed. NF Panelboards are convertible from main lug to main breaker. NF Panelboards can provide 200% rated neutrals for nonlinear loads. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. The main lugs are rated at 125A 480Y/277 VAC 3 phase. Interior has an interrupt current rating of up to 65 kA. This interior is for a 4 wire system with 18 spaces and has a copper bus bar. Interior is for EDB, EDG, and EDJ branch circuit breakers. Lug connections will accept 6 AWG to 2/0 AWG copper or aluminum wire. The interior is 21 inches tall and 10.44 inches wide. This interior is UL listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueCircuit Breaker Type | EDB/EDG/EDJ |
---|---|
Material | copper |
Load Center Type | main lugs |
Warranty | 18 months |
Height | 21 in |
Connections - Terminals |
|
Tightening Torque |
|
[Iu] Rated Interrupted Current | 65 kA |
Number Of Spaces | 18 |
Enclosure Nominal Height |
|
Phase | 3 phase |
Enclosure Nominal Depth |
|
Line Rated Current | 125 A |
Width | 10.44 in |
Wiring Configuration | 4-wire |
Enclosure Nominal Width | 20 in |
[Ue] Rated Operational Voltage | 600Y/347 V AC |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1404020EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Eu Rohs Directive | Compliant |
Standards |
|
