NC50SHR

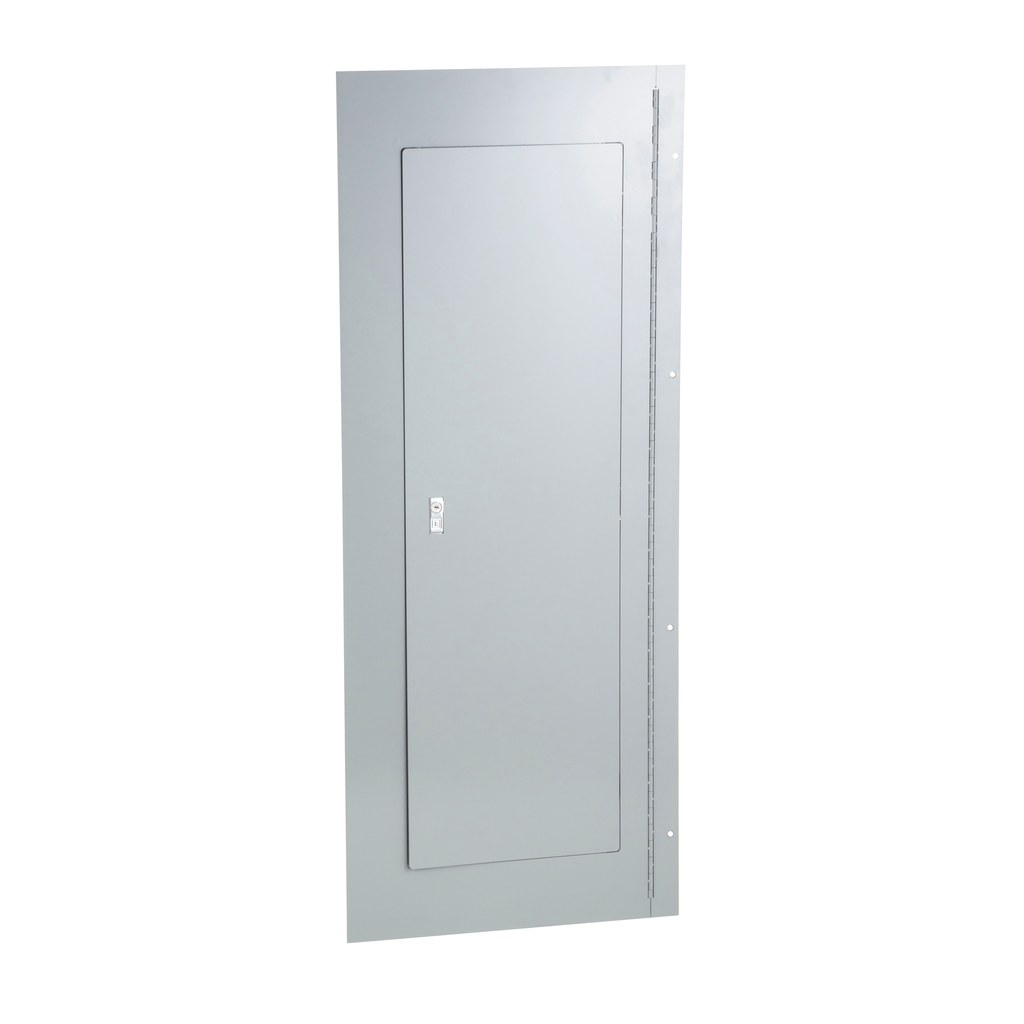

Enclosure cover, NQ and NF panelboards, NEMA 1, surface, hinged, 20in W x 50in H
NF & NQ Panelboards can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices. These panelboards provide protection for commercial and industrial applications. These versatile panelboards feature a wide selection of circuit breakers, accessories, and ready to install kits. This steel NEMA 1 rated cover is for NF and NQ panelboards. This grey surface cover has a hinge on the right. This surface cover is 50 inches tall and 20 inches wide. This panelboard cover is UL Listed and CSA certified by UL.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Or Component Type | surface cover |
|---|---|
| Cover Type | surface cover |
| Color | Gray |
| Type Of Front Plate | hinged |
| Warranty | 18 months |
| Height | 56 in |
| Enclosure Material | steel |
| Width | 20 in |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1404010EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications | cULus |
| Nema Degree Of Protection | NEMA 1 |
Documents
- Spec Sheet
- Digest Catalog 09: Panelboards - 0100CT1901_SEC-09 (pdf)
- Square D NF Circuit Breaker Panelboards Catalog - 1670CT0701 (pdf)
- Supplemental Digest 04: Panelboards (MAY 2022) - SD_0100CT1902_SEC-04 (pdf)
- NC / NQC Standard and NC Hinged Trim Fronts - Installation Instructions - 80043-740-01 (pdf)
- NF/NFOM Panelboards Installation Instructions and User Guide (80043-741) - 80043-741-03 (pdf)
- NQ, NF, I-Line and QMB Panelboard Products - NQ+NF+and+I+line+and+QMB+Panels+final+-English+ (pdf)
