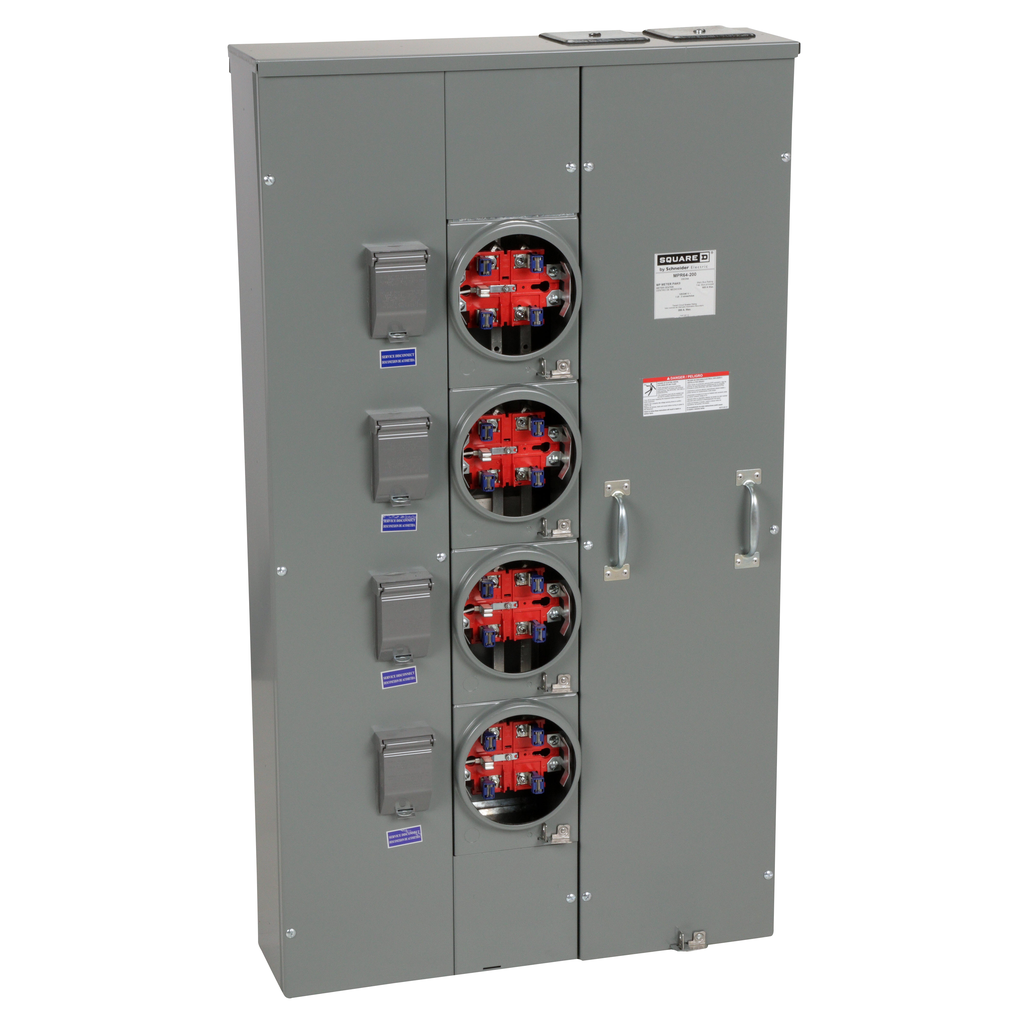

MP Meter Pak meter centers offer a wide range of multimetering applications. MP meter centers have UL Listed indoor rainproof NEMA Type 3R construction which meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device. This creates lighter and more compact branch enclosures. Four meter socket configurations available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MPR meter center has four ringless sockets with a no bypass and a 5th jaw. This main lugs unit can be feed from an overhead or underground service. The aluminum main bus ampacity is 600 A. The maximum tenant main lugs amperage is 200 A with a 240 VAC 3 wire single phase maximum. This unit has a NEMA 3R surface mounting enclosure that is 52.00 inches tall, 29.44 inches wide and 8.28 inches deep. This MPR meter center with accept one 1/0 AWG to 600 kcmil or two 1/0 AWG to 250 kcmil copper or aluminum wire. This MPR meter center unit is UL Listed.
Brand: Schneider Electric
Add to Quote CatalogueMain Type | Main Lugs |
---|---|
Meter Socket Rated Current | 200 A |
Number Of Jaws | 5 |
Meter Socket Type | ringless |
Number Of Meter Sockets | 4 |
Product Or Component Type | Meter Center |
Warranty | 18 months |
Product Certifications | UL Listed |
Service Feed Location |
|
Height | 52.00 in |
Nema Degree Of Protection | NEMA 3R |
Range Of Product | Meter-Pak |
[Ue] Rated Operational Voltage | 120/240 V AC |
Bypass Type | no bypass |
Product Mounting | surface |
Material | aluminium busbar |
Bus Rated Current | 600 A |
Enclosure Material | steel |
Awg Gauge |
|
Wiring Configuration | 3-wire |
Width | 29.44 in |
Depth | 8.28 in |
Phase | 1 phase |
Main Rated Current |
|
China Rohs Regulation | X |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2012009 |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Eu Rohs Directive | Compliant |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
