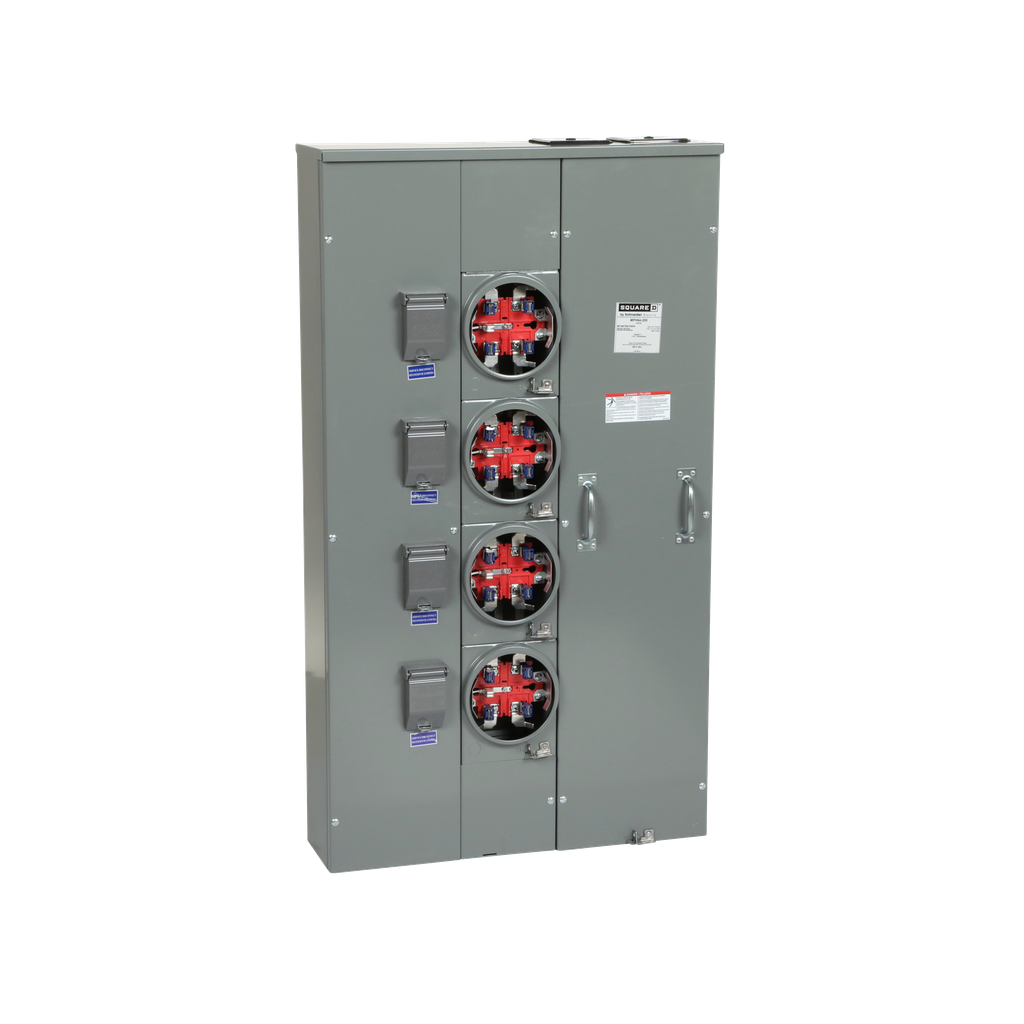

Meter center, MP Meter-Pak, 4 sockets, horn bypass, 5 jaws, 600A bus, 200A max breaker rating, ringless
MPH Meter Pak meter centers offer a wide range of multimetering applications. MPH meter centers have UL Listed indoor rainproof NEMA Type 3R construction which meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device. This creates lighter and more compact branch enclosures. Four meter socket configurations available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MPH meter center has a ringless socket with a horn bypass and a 5th jaw. The aluminum main bus ampacity is 600 A. This MPH meter pak meter center has 4 meter sockets. The maximum tenant main lugs amperage is 200 A with a 240 VAC single phase maximum. This MPH meter center with accept 1/0 AWG to 600 kcmil copper or aluminum wire. Meter center is UL listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Main Type | Main Lugs |
|---|---|
| Meter Socket Rated Current | 200 A |
| Number Of Jaws | 5 |
| Meter Socket Type | ringless |
| Number Of Meter Sockets | 4 |
| Product Or Component Type | Meter Center |
| Warranty | 18 months |
| Product Certifications | UL Listed |
| Service Feed Location |
|
| Range Of Product | Meter-Pak |
| Nema Degree Of Protection | NEMA 3R |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Bypass Type | horn bypass |
| Product Mounting | surface |
| Material | aluminium busbar |
| Bus Rated Current | 600 A |
| Enclosure Material | steel |
| Awg Gauge |
|
| Wiring Configuration | 3-wire |
| Phase | 1 phase |
| Main Rated Current |
|
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
