servo motor MH3 140 27,8Nm,key,multi,brake,IP65/IP67,3kRPM

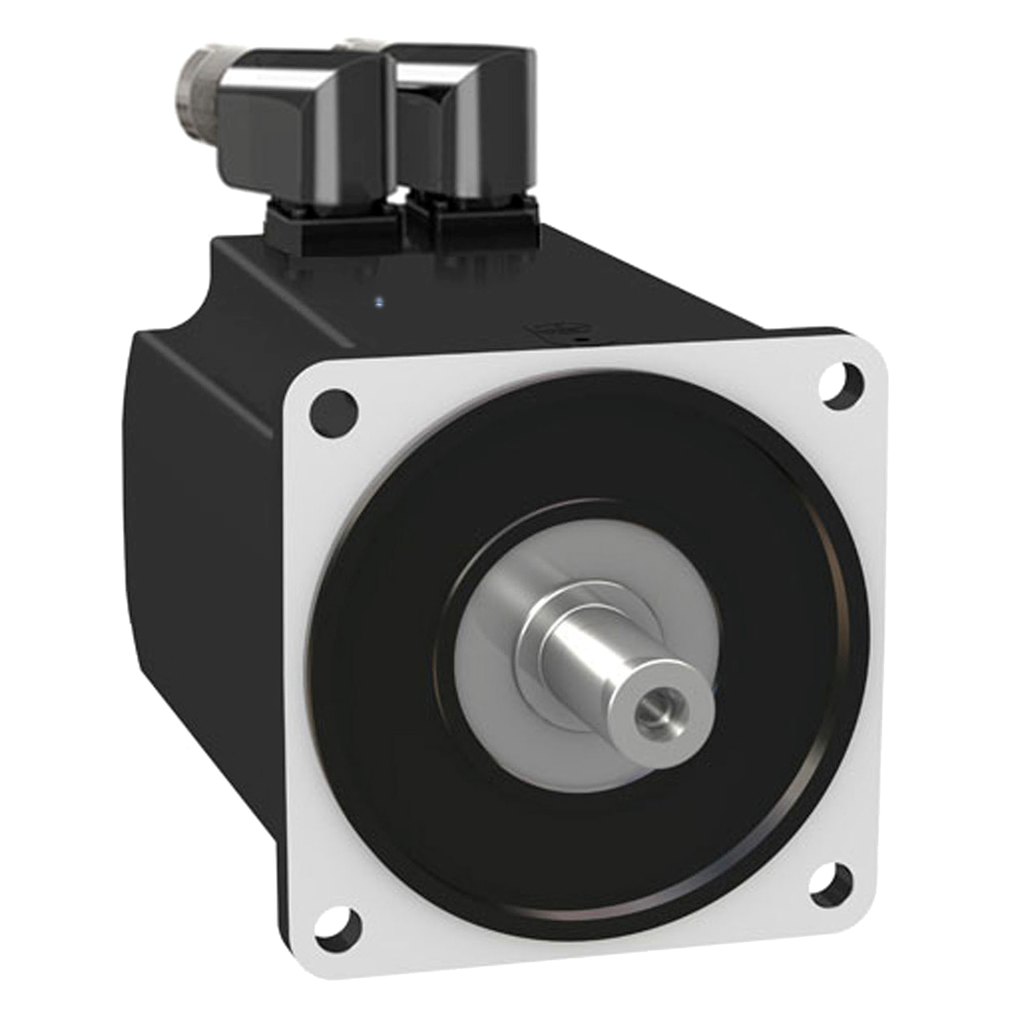

This product is part of the Lexium 52 & Motors range, an offer of servo motors for PacDrive 3. The 10-pole servo motor features maximum mechanical speed of 4000RPM and smooth shaft end with holding brake. It is an equipped with a multi-turn SinCos Hiperface® encoder with 128 periods speed feedback resolution. It is a servo motor with a rated supply voltage of 115V to 480V, a continuous stall current of 18A and a continuous power of 4750W. The shaft dimensions are 24mm (diameter) x 50mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP65 rated product. The length of this product is 267mm and the centering collar dimensions are 3.5mm (depth) x 130mm (diameter) with 165mm mounting hole. It weighs 18.5kg. This range is compatible with PacDrive 3 for motion centric machines. It supports 140mm international standard flange mount with a natural convection cooling system. Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions. Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Or Component Type | AC servo motors |
|---|---|
| Range Compatibility | PacDrive 3 |
| Device Short Name | MH3 |
| Circle Diameter Of The Mounting Holes | 165 mm |
| Continuous Power | 4750 W |
| Maximum Mechanical Speed | 4000 rpm |
| Stator Electrical Time Constant | 13.6 ms |
| Holding Torque | 23 N.m |
| Maximum Radial Force Fr |
|
| Encoder Type | multiturn SinCos Hiperface |
| Mounting Support | international standard flange |
| Rotor Inertia | 50.27 kg.cm² |
| Number Of Motor Poles | 10 |
| Back Emf Constant | 85.9 V/krpm |
| Centring Collar Depth | 3.5 mm |
| Holding Brake | with |
| Speed Feedback Resolution | 128 periods |
| Second Shaft | without second shaft end |
| Shaft Length | 50 mm |
| Brake Pull-In Power | 19 W |
| Phase | three phase |
| Length | 267 mm |
| Maximum Current Irms | 62.32 A |
| Net Weight | 18.5 kg |
| Centring Collar Diameter | 130 mm |
| Stator Inductance | 3 mH |
| Motor Flange Size | 140 mm |
| [Us] Rated Supply Voltage | 115...480 V |
| Nominal Output Power |
|
| Peak Stall Torque | 75 N.m, 115...480 V, three phase |
| Number Of Mounting Holes | 4 |
| Shaft Diameter | 24 mm |
| Mounting Holes Diameter | 11 mm |
| Type Of Cooling | natural convection |
| Ip Degree Of Protection | IP65 standard |
| Shaft End | smooth shaft |
| Nominal Speed |
|
| Electrical Connection | rotatable right-angled connectors |
| Stator Resistance | 0.22 Ohm |
| Continuous Stall Current | 18 A |
| Nominal Torque |
|
| Torque Constant | 1.33 N.m/A 120 °C |
| Continuous Stall Torque | 24 N.m, 115...480 V, three phase |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111002EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
