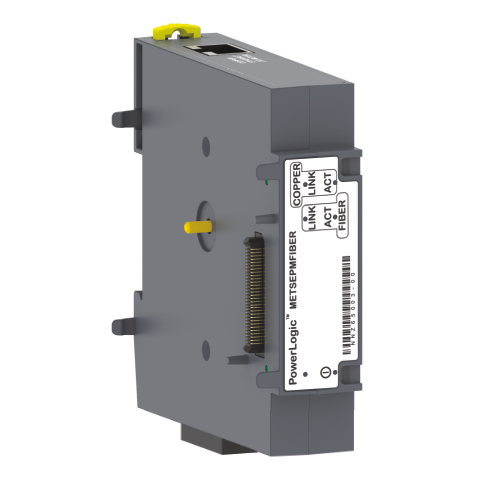

PowerLogic PM8000 - Communication Module - Fiber-Ethernet module
This device is an optional module for advanced meter that provide fiber optic SC-duplex connectivity, converted from the onboard Ethernet port. The Fiber-Ethernet option module can further increase our Advanced Meters flexibility by adding an additional communication port. Provides isolated data transmission through fiber optics up to the length of 2000 m. The module is directly powered from the base meter. This module enables data transfer through fiber optics medium, and offer reliable, and insulated data transmission. It supports multi-mode 100BASE-FX technology and requires SC duplex connector input. Only 1 Fiber-Ethernet module is supported per meter. The dimensions are 22 mm in width, 100.2 mm in height 100.2 mm, 90.5mm in depth 90.5 mm and 102.33 g in weight: 102.33 g. This module hooks itself up to the meter's option bus which has a capacity of maximum one fiber-Ethernet module plus 3 other options. It is connected to the base meter with the help of Ethernet patch cable which is included in the module packaging. Single unit in the packet. Compatible with PowerLogic Advanced Metering range (ION7400, PM8000, and ION9000).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Communication Port Support | SC fiber optic |
|---|---|
| Range Compatibility |
|
| Port Ethernet | 100BASE-FX |
| Product Or Component Type | communication module |
| Range | PowerLogic |
| Communication Port Protocol |
|
| Device Application | optional expansion module |
| Height | 100.2 mm |
| Net Weight | 119.3 g |
| Width | 22 mm |
| Depth | 90.5 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2110011_V1 |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2110011_V1 |
| Eu Rohs Directive | Compliant |
