METSEPM5RD

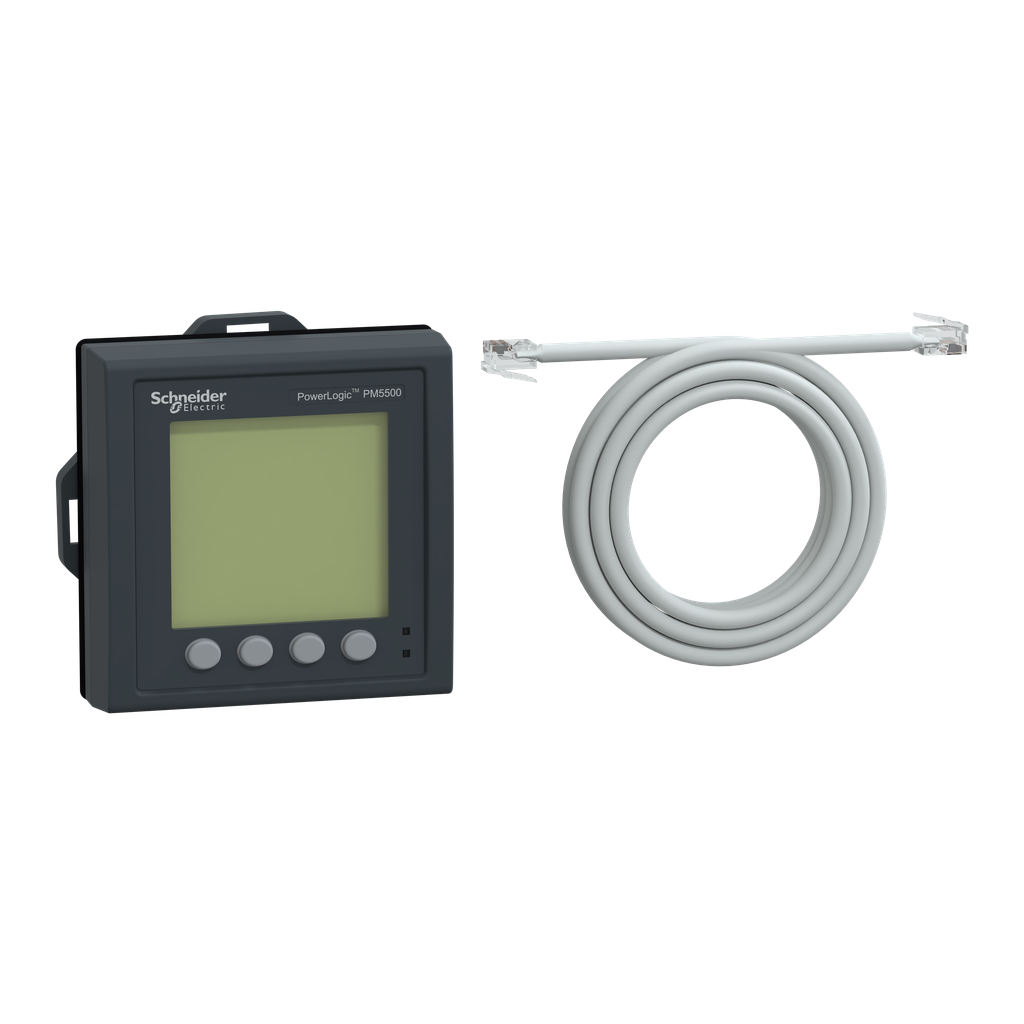

Power Logic PM5000 - 5RD Remote display 96 x 96 mm monochrome
Optional remote display kit for the PowerLogic PM5000 DIN mount variant. 96mm by 96mm monochrome graphical LCD with push-button interface. Information avaiable from the display: power, energy consumption, harmonics, frequency, voltage and current. Viewable area: backlight LCD, 128 pixels by 128 pixels. This display is installed flush mounted, an enclosure door for example. Ingress Protection IP52 rating.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Compatibility | PowerLogic (PowerLogic PM5000) |
|---|---|
| Product Or Component Type | remote display |
| Range | PowerLogic |
| Display Type | Backlit LCD |
| Device Application | human-machine dialogue application |
| Information Displayed |
|
| Height | 96 mm |
| Embedding Depth | 21 mm |
| Display Resolution | 128 x 128 pixels |
| Messages Display Capacity |
|
| Connector Type | RJ45 |
| Control Type | 4 x push-button |
| Mounting Mode | flush-mounted |
| Local Signalling |
|
| Mounting Support | framework remote display |
| Display Size | 67 x 62.5 mm |
| Display Colour | monochrome |
| Width | 96 mm |
| Projecting Depth | 27 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1412029EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1412029EN |
| Eu Rohs Directive | Compliant |
| Ambient Air Temperature For Operation | -25-70 °C |
| Ambient Air Temperature For Storage | -40-85 °C |
| Relative Humidity | 5-95 % 37-37 °C |
| Ip Degree Of Protection | IP52 IEC 60529 |
| Operating Altitude | 0...9842.52 ft (0...3000 m) |
