This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 64 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to the 31st Harmonic. Include 256 kiloBytes of memory for two fixed parameters, active and reactive energy. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 415 VAC and 125 to 250 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 35 to 690 VAC at 47 to 63 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 47 to 63 Hz. Communication protocol is Modbus RTU and ASCII 2 wires with RS485 port support. The meter also has two digital inputs or digital outputs, configurable, and dual relay outputs. There are 35 configurable alarms and it supports four tariff schedules. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 2.83 inches (72 millimetres), height 3.78 inches (96 millimetres) and product weight 15.2 onces (430 g).
Brand: Schneider Electric
Add to Quote CatalogueProduct Or Component Type | power meter |
---|---|

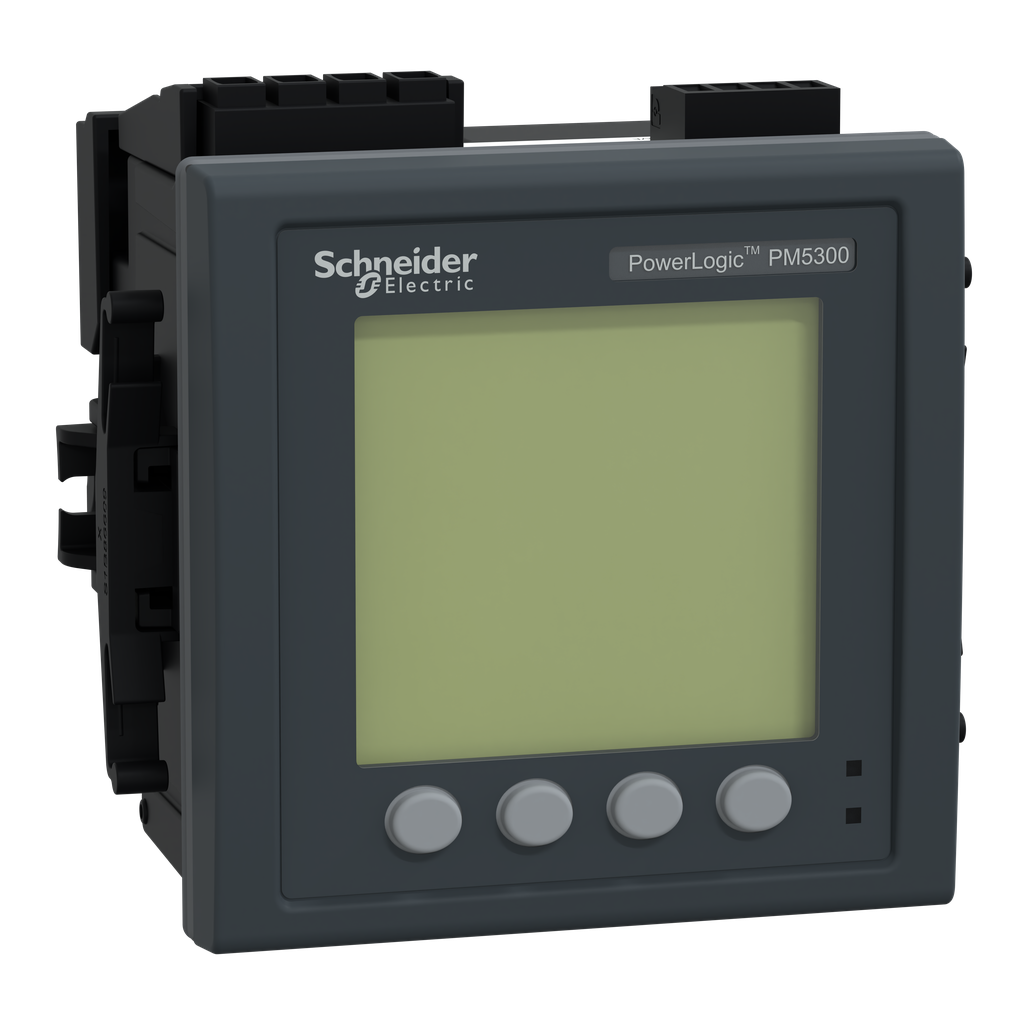

Product Name | PowerLogic PM5000 |
Range | PowerLogic |
Device Short Name | PM5330 |
Network Frequency |
|
Communication Port Support | RS485 |
Power Quality Analysis | up to the 31st harmonic |
Height | 96 mm |
Measurement Voltage |
|
Sampling Rate | 64 samples/cycle |
Standards |
|
Memory Capacity | 256 kB |
Number Of Outputs |
|
Product Certifications |
|
Type Of Measurement |
|
Communication Port Protocol |
|
Frequency Measurement Range | 45-65 Hz |
Ride-Through Time |
|
Display Resolution | 128 x 128 pixels |
Number Of Inputs | 2 digital |
Net Weight | 430 g |
Depth | 72 mm |
Measurement Current | 5-8500 mA |
Connections - Terminals |
|
Information Displayed | tariff 4) |
[Us] Rated Supply Voltage |
|
Mounting Mode | flush-mounted |
Measurement Accuracy |
|
Mounting Support | framework |
Poles Description |
|
Data Recording |
|
Line Rated Current |
|
Analogue Input Type |
|
Width | 96 mm |
Display Type | monochrome graphic LCD |
Device Application |
|
Accuracy Class | class 0.5S active energy IEC 62053-22 |
Maximum Power Consumption In Va | 11 VA 415 V |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1305025 |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1305025 |
Eu Rohs Directive | Compliant |
Ambient Air Temperature For Operation | -25-70 °C meter |
Electromagnetic Compatibility |
|
Pollution Degree | 2 |
Ambient Air Temperature For Storage | -40-85 °C |
Relative Humidity | 5-95 % 50-50 °C non-condensing |
