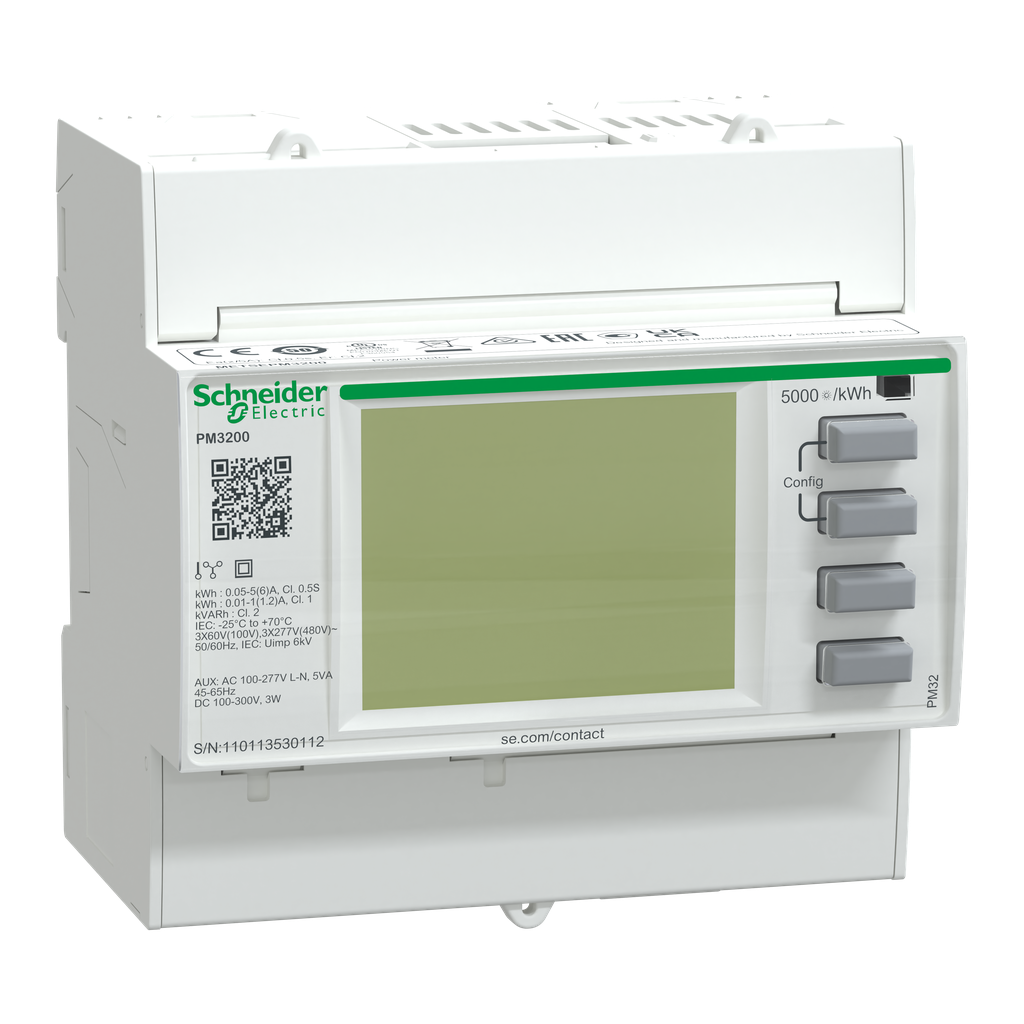

PM3200 DIN mount energy meter with a 128 by 96 pixel backlit, LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 32 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor, Apparent Power and up to 15th Harmonic. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 277VAC, 173 to 480VAC and 100 to 300VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase, Single Phase and Neutral or Three Phase configurations. Direct measurement range is 50 to 570VAC, with an external VT 570 to 999000VAC. The range of measurement voltage between Phases is 80 to 570VAC at 45 to 65 Hz. Measurement range between Phase and Neutral is 50 to 330VAC at 45 to 65 Hz. This meter has no communication input or output capability. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.76in (70 mm), height 3.74 in (95 mm) and product weight 9.17 oz (260 g).
Brand: Schneider Electric
Add to Quote CatalogueProduct Or Component Type | power meter |
---|---|
Product Name | PowerLogic PM3000 |
Range | PowerLogic |
Device Short Name | PM3200 |
Warranty | 18 months |
Network Frequency |
|
Power Quality Analysis | up to the 15th harmonic |
Height | 95 mm |
Measurement Voltage |
|
Sampling Rate | 32 samples/cycle |
Standards |
|
Number Of Outputs | 0 |
Type Of Measurement |
|
Frequency Measurement Range | 45-65 Hz |
Power Consumption In Va | 5 VA |
Display Resolution | 128 x 96 pixels |
Product Certifications |
|
Number Of Inputs | 0 |
Net Weight | 0.26 kg |
Depth | 70 mm |
Measurement Current |
|
Information Displayed | tariff 4) |
[Us] Rated Supply Voltage |
|
Mounting Mode | clip-on |
Measurement Accuracy |
|
Mounting Support | DIN rail |
Poles Description |
|
Data Recording | min/max of instantaneous values |
Line Rated Current |
|
Analogue Input Type |
|
Width | 90 mm |
Display Type | Backlit LCD |
Device Application |
|
Accuracy Class |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP111275EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI111258EN |
Eu Rohs Directive | Compliant |
Ambient Air Temperature For Operation | -25-70 °C |
Electromagnetic Compatibility |
|
Pollution Degree | 2 |
Ambient Air Temperature For Storage | -40-85 °C |
Relative Humidity | 5-95 % 50-50 °C |
Ip Degree Of Protection |
|
Overvoltage Category | III |
Operating Altitude | < 9842.52 ft (3000 m) |
