METSEPM2KANLGIO22

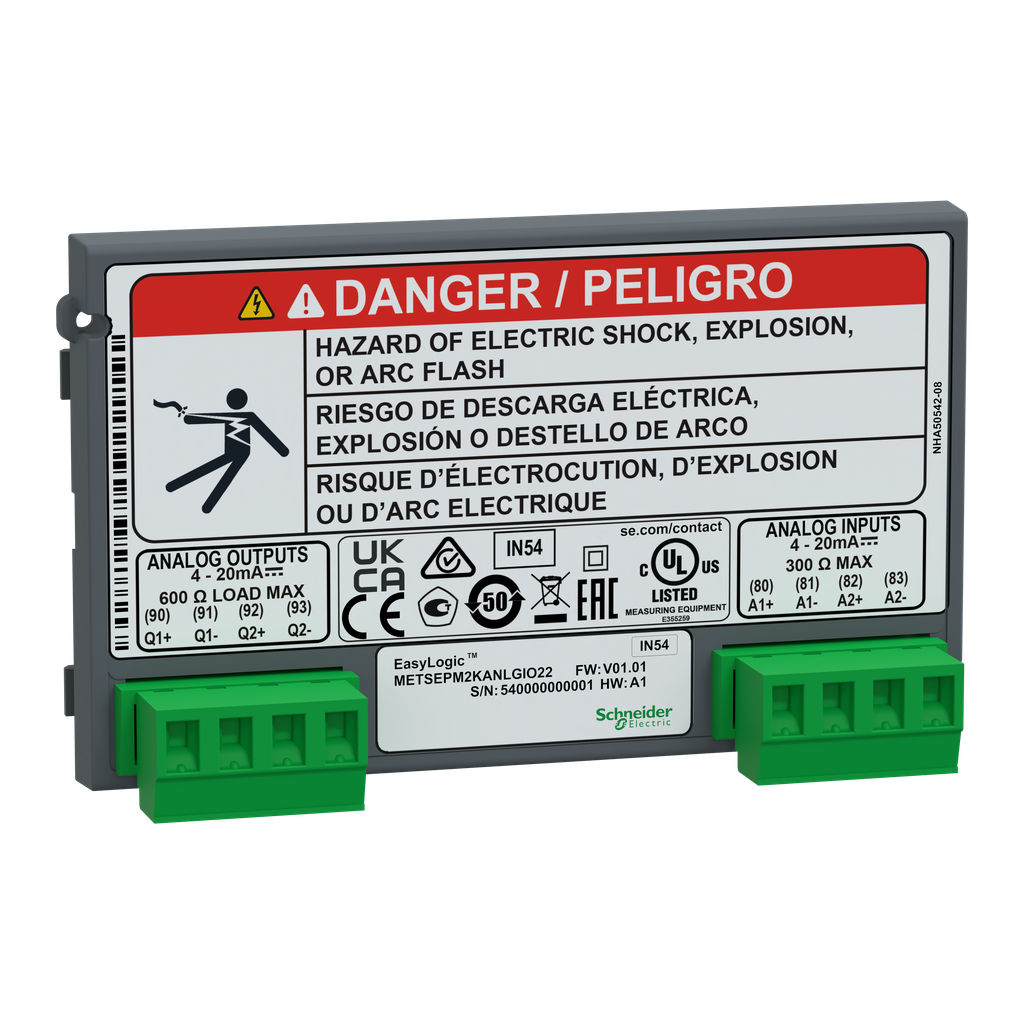

EasyLogic PM2X30 - I/O Module - Analogue - 2 inputs + 2 outputs
Optional Input Output module compatible with EasyLogic PM2130, PM2230 devices that provides additional analog inputs outputs. This analog module provides 2 analog inputs that support 4 to 20mA. Plus 2 analog outputs that can be assiciated to one out of 40 instantaneous parameters. The analog outputs support 4 to 20mA. Analog inputs and outputs are setted-up and configured through ION set-up software utility tool. The option modules are attached to the back of the meter providing connection for control power and interfacing bus. The EasyLogic PM2130 and PM2230 devices allow a maximum of 1 input/output option modules per meter.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Compatibility |
|
|---|---|
| Product Or Component Type | I/O module |
| Range | EasyLogic |
| Device Application | optional expansion module |
| Device Short Name | PM2K2AIAO |
| Height | 53 mm |
| Number Of Outputs | 2 analog, 4...20 mA |
| Output Voltage | 12 V AC |
| Analogue Output Type | analog output 600 Ohm |
| [Ui] Rated Insulation Voltage | 2500 V |
| Net Weight | 50 g |
| Number Of Inputs | 2 analog 4...20 mA |
| Input Voltage | 12...30 V AC |
| Analogue Input Type | analog input <= 300 Ohm) |
| Width | 90.5 mm |
| Depth | 14.6 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1510005 |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1510005 |
| Eu Rohs Directive | Compliant |
| Ambient Air Temperature For Operation | -10-60 °C |
| Ambient Air Temperature For Storage | -25-70 °C |
