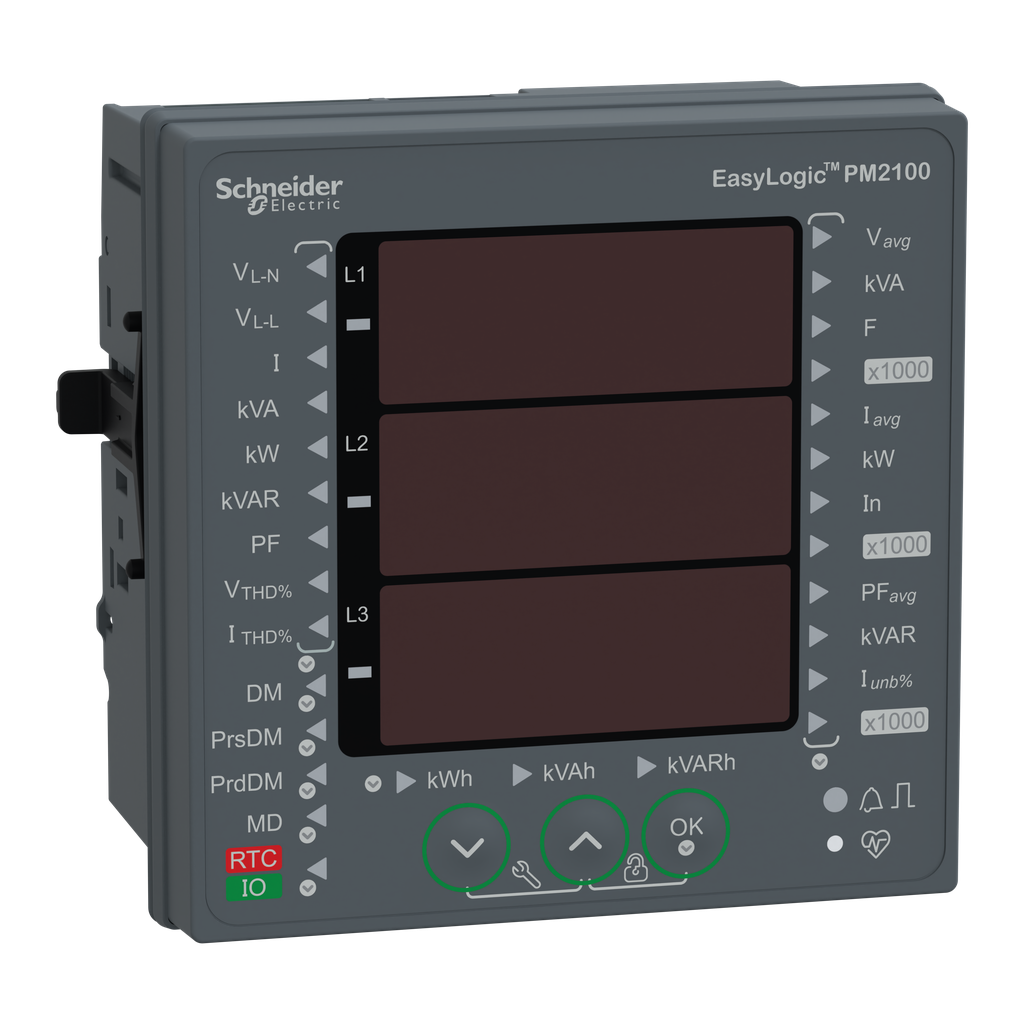

This device is a panel mount or flush mount power meter with a 96mm by 96mm bezel size having 3 rows of bright red 4 digits 14.2 mm height LED display. The meter measures active energy as per accuracy class Class 1.0 complying to IEC 62053-21 standard with sampling rate of 64 samples per cycle. Able to measures all three vectors of power and energy such as Active, Apparent & Reactive beside Voltages, Current, Frequency and Power Factor. Plus the total Harmonic Distortion and Individual harmonics up to 15th Harmonic order. The meter will function in either 50Hz or 60Hz network frequency and accepts universal control power voltages ranging from 44 to 300 V Line to Neutral AC or DC voltages. Rated current for this meter is either 1A or 5A input. it supports up to 13 different types of wiring schemes under Single Phase, Two Phase or Three Phase configuration types. The range of measurement voltage between Phases is 35 to 480 V Line to Line AC at 45 to 65 Hz while it is 20 to 277 V between Line and Neutral. It is having RS485 communication port over Modbus RTU protocol. Product dimensions are as follows: width 3.78 in (96 mm), depth 2.16 in (54 mm), height 3.78 in (96 mm) and product weight 10.58 oz (300 g).
Brand: Schneider Electric
Add to Quote CatalogueProduct Or Component Type | power meter |
---|---|
Product Name | EasyLogic PM2100 |
Range | EasyLogic |
Device Short Name | PM2120 |
Network Frequency |
|
Communication Port Support | screw terminal block RS485 |
Power Quality Analysis |
|
Height | 96 mm |
Measurement Voltage |
|
Sampling Rate | 64 samples/cycle |
Maximum Power Consumption In W |
|
Number Of Outputs | 0 |
Product Certifications |
|
Type Of Measurement |
|
Communication Port Protocol | Modbus RTU 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps even/odd or none - 2 wires 2500 V |
Frequency Measurement Range | 45-65 Hz |
Communication Service | remote monitoring |
Number Of Inputs | 0 |
Material | polycarbonate |
Net Weight | 300 g |
Tamperproof Of Settings | protected by access code |
Provided Equipment | 1 x Installation guide |
Depth |
|
Measurement Current | 5-6000 mA |
Messages Display Capacity | 3 fields of 4 characters |
Local Signalling |
|
Connections - Terminals |
|
Information Displayed |
|
Electrical Insulation Class |
|
Control Type | 3 x button |
Function Available | real time clock |
Flame Retardance | V-0 conforming to UL 94 |
[Us] Rated Supply Voltage |
|
Mounting Mode | clip-on |
Measurement Accuracy |
|
Mounting Support | framework |
Compatibility Code | PM2120 |
Refresh Time | configurable from 1 to 60 min |
Data Recording |
|
Line Rated Current |
|
Cybersecurity | enable/disable communication ports |
Display Colour | red |
Analogue Input Type |
|
Mounting Position | vertical |
Width | 96 mm |
Display Type | 7 segments LED |
Measurement Category |
|
Display Digits | 12 - 14.2 mm |
Device Application |
|
Metering Type |
|
Accuracy Class |
|
Maximum Power Consumption In Va | 6 VA 277 V AC |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1510002 |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1510002EN |
Eu Rohs Directive | Compliant |
Ambient Air Temperature For Operation | -10-60 °C |
Electromagnetic Compatibility |
|
Pollution Degree | 2 |
Ambient Air Temperature For Storage | -25-70 °C |
Relative Humidity | 5-95 % 50-50 °C |
Service Life | 7 year(s) |
Ip Degree Of Protection |
|
Overvoltage Category | III |
Operating Altitude | <= 6561.68 ft (2000 m) |
