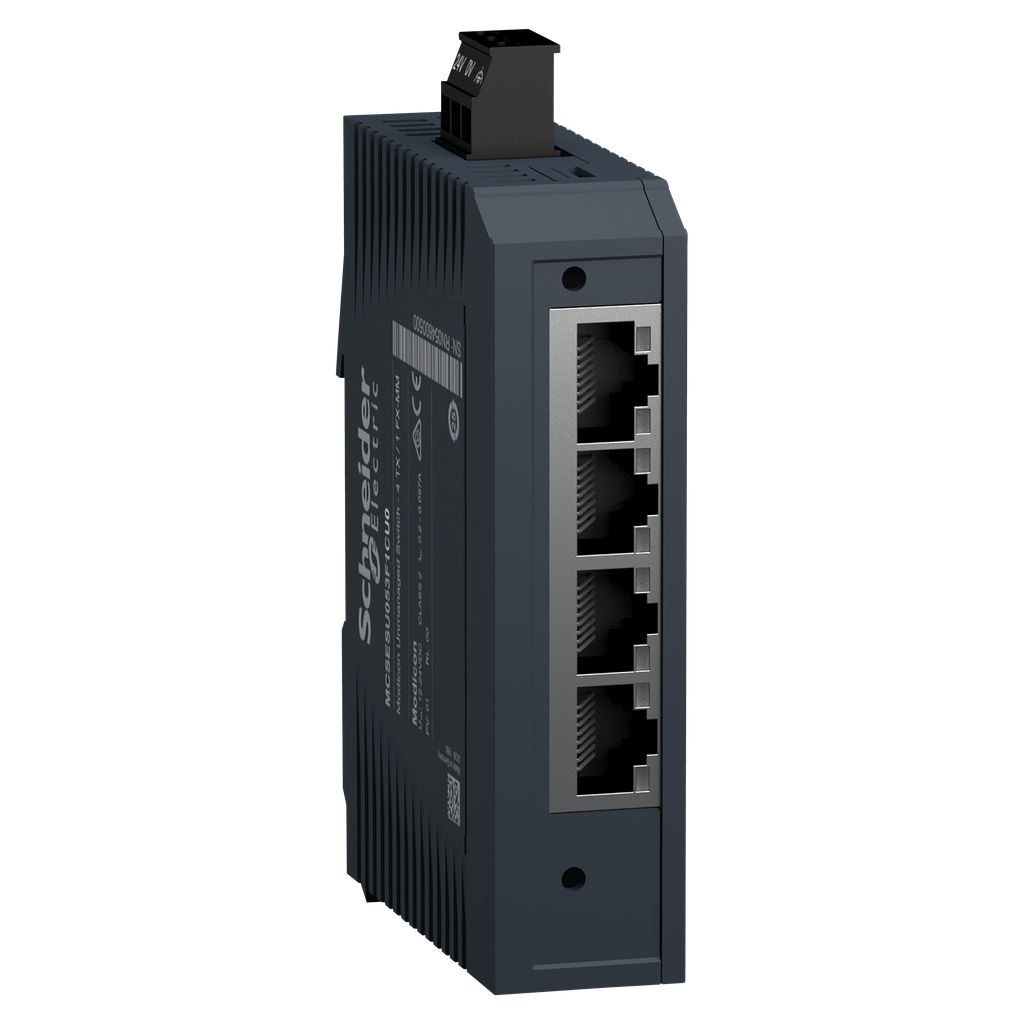

This product is part of the Modicon Networking range, an offer of Modicon Standard Unmanaged Switch. This unmanaged switch comes with Ethernet TCP/IP protocol. It comes with 4 transmission ports for copper cable and 1 port for multimode fiber optic. It provides simple connectivity for multiple Ethernet devices and gives customers more options with industrial grade application. This product works at a power consumption of 2.4W and a rated voltage from 12V to 24V DC. It has a removable 3-pin power supply connector . Dimensions are 26mm (width) x 102mm (height) x 79mm (depth) and weighs 0.130kg. It has shielded connectors which is suitable for small, isolated networks or system with light network traffic and network with low complexity levels. It is CE, UL, RCM, UKCA, EAC certified and conforms to UL 61010 and EN/IEC 61131 standards. It is designed to be mounted on a symmetrical DIN rail. It provides low power consumption and compact footprint. It also provides simple connectivity for multiple Ethernet device. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.
Brand: Schneider Electric
Add to Quote CatalogueMaximum Number Of Switches In Cascade | unlimited |
---|---|
Range Of Product | Modicon |
Port Ethernet |
|
Product Or Component Type | Ethernet TCP/IP unmanaged switch |
Communication Port Protocol | Ethernet TCP/IP |
Concept | Transparent Ready |
Warranty | 18 months |
Maximum Cable Distance Between Devices | 100 m copper cable |
[Us] Rated Supply Voltage | 12...24 V |
Height | 102 mm |
Integrated Connection Type |
|
Transmission Support Medium |
|
Mounting Support | 35 mm symmetrical DIN rail |
Power Consumption In W | 2.4 W |
Marking |
|
Net Weight | 0.13 kg |
Attenuation |
|
Electrical Connection | removable connector 3 ways power supply |
Ethernet Cabling System | TF switches |
Supply Voltage Limits | 9.6-32 V DC SELV |
Local Signalling |
|
Optic Fiber Length |
|
Width | 26 mm |
Depth | 79 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2003018EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI2003018EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Ambient Air Temperature For Operation | 0-60 °C |
Standards |
|
Product Certifications |
|
Directives |
|
Relative Humidity | 10-95 % non-condensing |
Ip Degree Of Protection | IP30 |
