Maximum Number Of Switches In Cascade | unlimited |
---|---|
Range Of Product | Modicon |
Port Ethernet | 10/100/1000 BASE-TX - 8 copper cable |

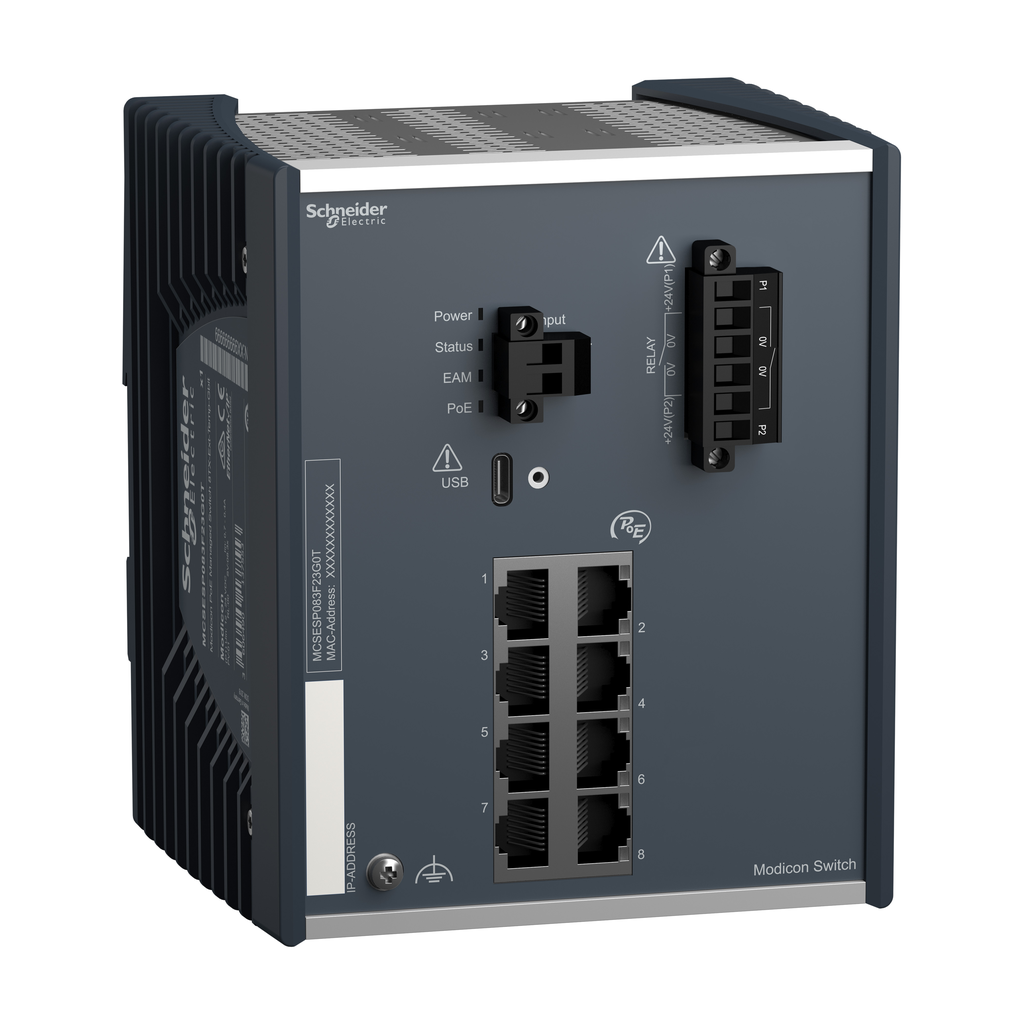

Product Or Component Type | Ethernet TCP/IP managed switch |
Communication Port Protocol |
|
Cybersecurity |
|
Concept | Transparent Ready |
Warranty | 18 months |
Maximum Cable Distance Between Devices | 100 m copper (Gbit) |
[Us] Rated Supply Voltage | 24 V |
Height | 144.2 mm |
Alarm Function |
|
Integrated Connection Type | shielded RJ45 copper (Gbit) |
Transmission Support Medium | twisted shielded pairs cable CAT 5E copper (Gbit) |
Mounting Support | 35 mm symmetrical DIN rail |
Power Consumption In W | 106 W |
Communication Service |
|
Marking |
|
Alarm Output | 1 voltfree contact 1 A |
Redundancy |
|
Net Weight | 1.4 kg |
Electrical Connection | removable connector 6 ways power supply |
Maximum Number Of Switches In A Ring | 50 |
Function Available |
|
Ethernet Service |
|
Ethernet Cabling System | TF switches |
Supply Voltage Limits | 18-30 V DC SELV |
Local Signalling |
|
Diagnostics Run Time |
|
Width | 122.4 mm |
Depth | 117.15 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2003018EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI2003018EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Ambient Air Temperature For Operation | -40-+70 °C |
Standards |
|
Product Certifications |
|
Directives |
|
Relative Humidity | 1-95 % non-condensing |
Ip Degree Of Protection | IP30 |
