MCSESM103F2CU1H – Modicon Extended Managed Switch – 8 ports for copper   2 ports for fiber optic multimode – Harsh
MCSESM103F2CU1H

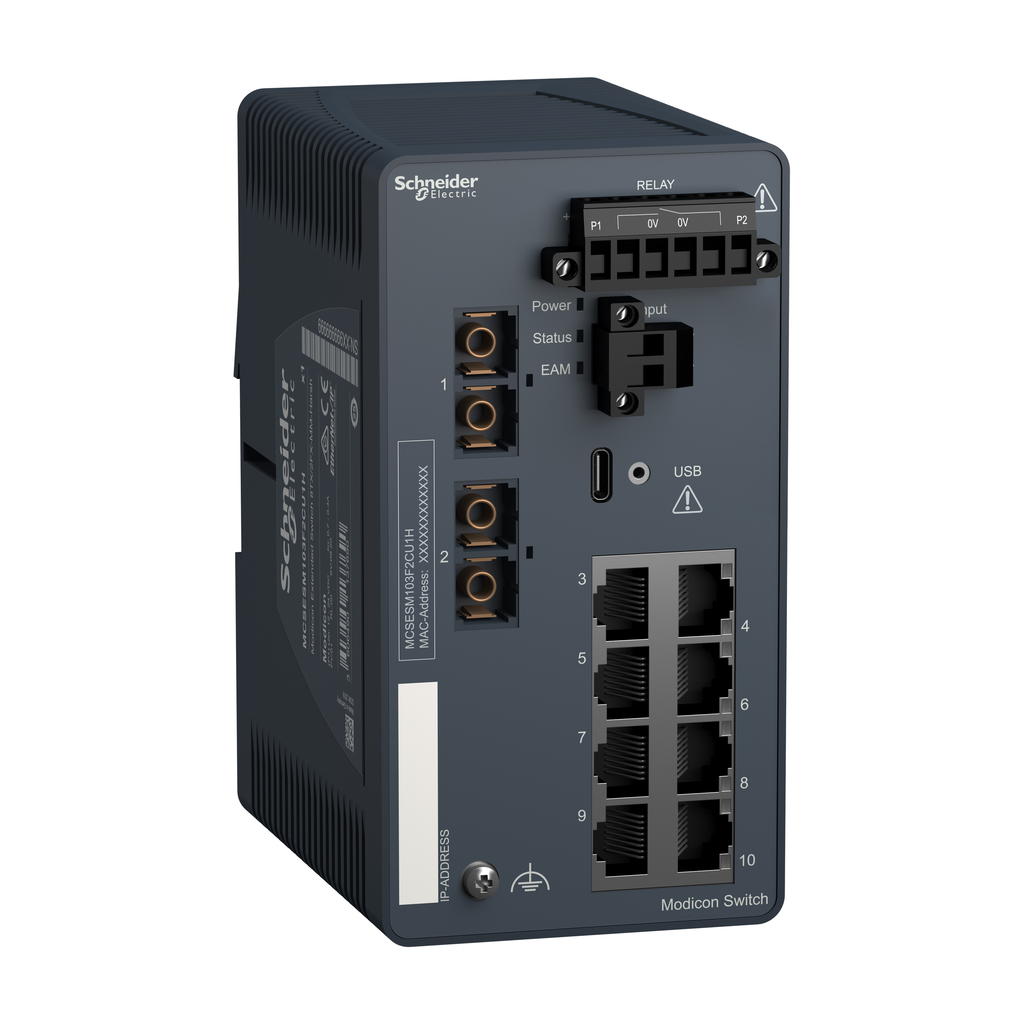

Modicon Extended Managed Switch - 8 ports for copper + 2 ports for fiber optic multimode - Harsh
Specifications
Communication Port Protocol
  • Ethernet TCP/IP
  • SSH
  • HTTP
  • HTTPS
  • SNMP
  • RS232
  • SFTP
  • SCP
  • LLDP
  • Telnet
  • SNTP
Maximum Number Of Switches In Cascade unlimited
Range Of Product Modicon
Product Specific Application for severe environments
Port Ethernet
  • 100BASE-FX - 2 fiber optic
  • 10/100BASE-TX - 8 copper cable
Cybersecurity
  • port hardening
  • IP-based port security
  • MAC-based port security
  • port-based access control
  • role-based access control
  • RADIUS assignment
  • HTTPS
  • DoS prevention
  • VLAN-based ACL
  • audit trail
  • SNMP logging
  • pre-login banner
Product Or Component Type Ethernet TCP/IP managed switch
Concept Transparent Ready
Warranty 18 months
Maximum Cable Distance Between Devices 100 m copper cable
[Us] Rated Supply Voltage 12...24 V
Maximum Number Of Switches In A Ring 50
Function Available
  • security status
  • alarms (Traps)
  • system information
  • report
Height 142.8 mm
Alarm Function
  • power supply fault
  • data link status
  • switch fault
  • temperature threshold
  • redundancy ring fault
  • incorrect configuration
  • external memory removed
Integrated Connection Type
  • duplex SC fiber optic
  • shielded RJ45 copper cable
Ethernet Service
  • configuration via web server
  • VLAN
  • multicast filtering
  • data stream control
  • IGMP Snooping
  • SNMP-Traps and SYSLOG
Transmission Support Medium
  • multimode optical fiber fiber optic
  • twisted shielded pairs cable CAT 5E copper cable
Mounting Support 35 mm symmetrical DIN rail
Ethernet Cabling System TF switches
Supply Voltage Limits 9.6-32 V DC SELV
Local Signalling
  • for P1 P2 power supplies 1 dual colour LED (green/yellow)
  • for device status 1 dual colour LED (green/red)
  • for memory key status 1 dual colour LED (green/yellow)
  • for channel diagnostic 1 dual colour LED (green/yellow)
Optic Fiber Length
  • 4 km 62.5/125 µm
  • 5 km 50/125 µm
Power Consumption In W 8 W
Communication Service
  • TFTP
  • Quality of Service (QoS)
  • port monitoring
  • port mirroring
  • address conflict detection
Diagnostics Run Time
  • signal contact
  • self test
  • MAC notification
Marking
  • CE
  • cULus
  • RCM
Width 73 mm
Alarm Output 1 voltfree contact 1 A
Depth 117.6 mm
Redundancy
  • HiPER ring
  • RSTP
  • link aggregation
  • link backup
  • redundant network coupling
  • MRP
  • dual RSTP
Net Weight 0.57 kg
Attenuation
  • 0-11 dB 62.2/125 µm)
  • 0-8 dB 50/125 µm)
Electrical Connection removable connector 6 ways power supply
China Rohs Regulation X
Circularity Profile ENVEOLI2003018EN
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP2003018EN
Sustainable Offer Status Green Premium product
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation Reference contains Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ambient Air Temperature For Operation -40-+70 °C
Directives
  • 2014/35/EU - low voltage directive
  • 2014/30/EU - electromagnetic compatibility
Standards
  • UL 61010-2-201
  • EN/IEC 61131-2
  • EN/IEC 62368-1
Relative Humidity 1-95 % non-condensing
Product Certifications
  • CE
  • UL
  • RCM
  • DNV
  • Lloyd's
  • BV
  • ATEX
Protective Treatment conformal coating
Ip Degree Of Protection IP30
