Maximum Number Of Switches In Cascade | unlimited |
---|---|
Range Of Product | Modicon |
Port Ethernet |
|

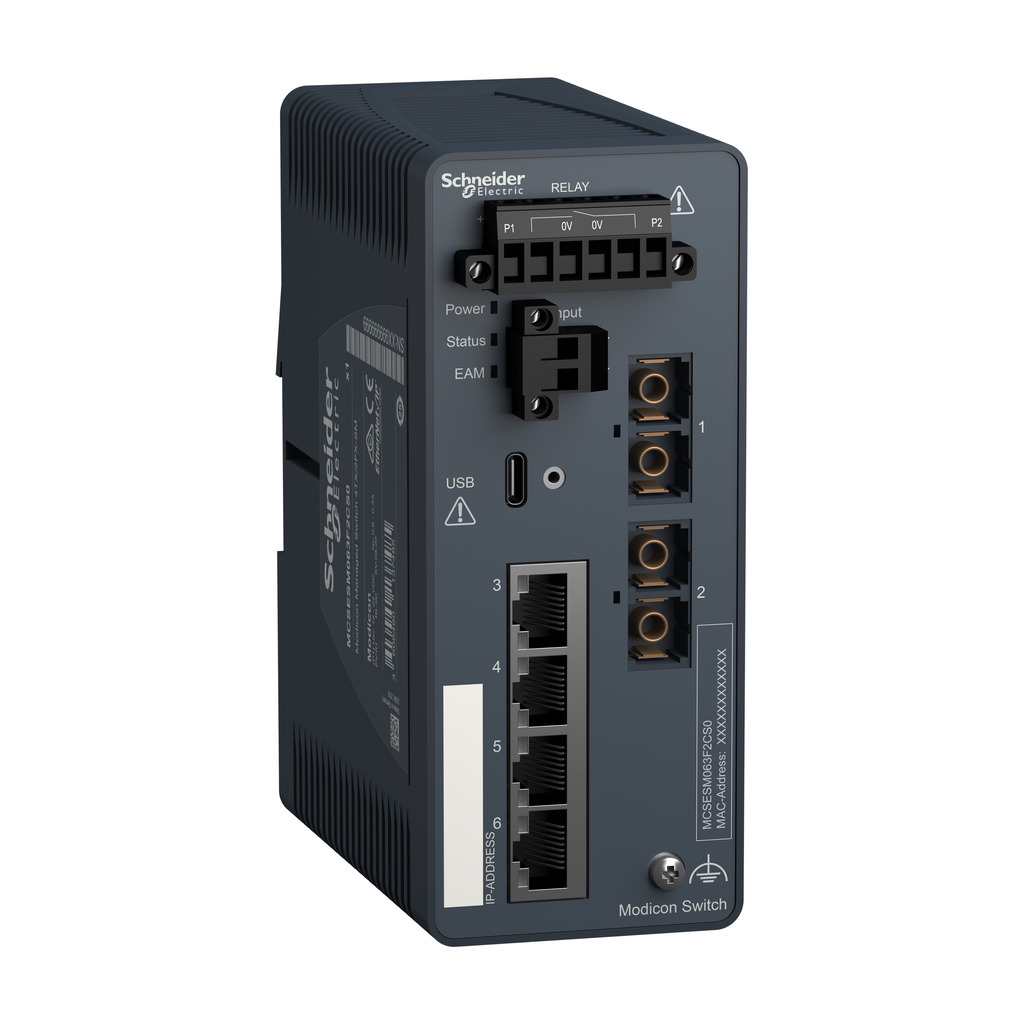

Product Or Component Type | Ethernet TCP/IP managed switch |
Communication Port Protocol |
|
Cybersecurity |
|
Concept | Transparent Ready |
Warranty | 18 months |
Maximum Cable Distance Between Devices | 100 m copper cable |
[Us] Rated Supply Voltage | 12...24 V |
Height | 142.8 mm |
Alarm Function |
|
Integrated Connection Type |
|
Transmission Support Medium |
|
Mounting Support | 35 mm symmetrical DIN rail |
Power Consumption In W | 7 W |
Communication Service |
|
Marking |
|
Alarm Output | 1 voltfree contact 1 A |
Redundancy |
|
Net Weight | 0.42 kg |
Attenuation | 0-16 dB 9/125 µm) |
Electrical Connection | removable connector 6 ways power supply |
Maximum Number Of Switches In A Ring | 50 |
Function Available |
|
Ethernet Service |
|
Ethernet Cabling System | TF switches |
Supply Voltage Limits | 9.6-32 V DC SELV |
Local Signalling |
|
Optic Fiber Length | 32.5 km 9/125 µm |
Diagnostics Run Time |
|
Width | 57 mm |
Depth | 117.6 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2003018EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI2003018EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Ambient Air Temperature For Operation | 0-60 °C |
Standards |
|
Product Certifications |
|
Directives |
|
Relative Humidity | 1-95 % non-condensing |
Ip Degree Of Protection | IP30 |
