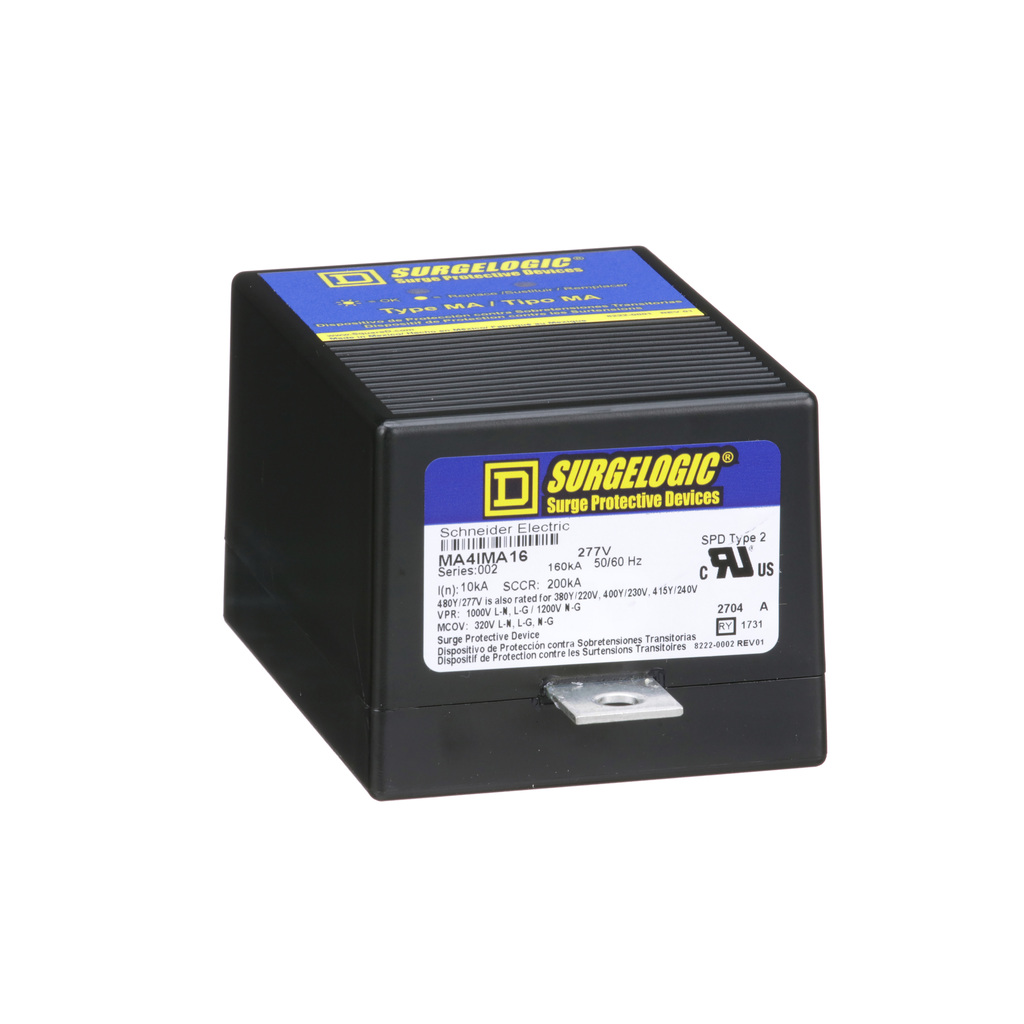

MA4IMA16
Surge protection module, Surgelogic, MA, 160kA, 480Y/277 VAC, 3 phase, 4 wire, SPD type 2
Surgelogic™ EMA and EBA series SPDs, MA4IMA16, offer a full range of externally mounted surge suppression solutions. These units are designed to provide surge suppression from service entrance panels to point-of-use equipment. US and Canadian UL® Listed to the UL 1449 standard. Complies with requirements of NEC® Article 285 and CSA 22.2 No. 8- M1986 as appropriate. Complies with UL 96A 12th Edition Master Label requirements for Lightning Protection Systems.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Surgelogic |
|---|---|
| Accessory / Separate Part Category | replacement part |
| Product Or Component Type | surge protection module |
| Device Short Name | IMA |
| Warranty | 18 months |
| Height | 158.8 mm |
| Connections - Terminals | terminals |
| Mounting Support | panel mounting |
| Provided Equipment | alarm enable/disable switch |
| Surge Current | 160 kA per phase |
| Nominal Discharge Current | 20 kA |
| Phase | 3 phase |
| Local Signalling | status LED green normal operation |
| Short-Circuit Protection | 200 kA |
| [Uc] Maximum Continuous Operating Voltage | 320 V |
| Wiring Configuration | 4-wire |
| Width | 82.8 mm |
| Depth | 68.3 mm |
| [Ue] Rated Operational Voltage | 480Y/277 V AC |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2003014EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI2003014EN |
| Eu Rohs Directive | Compliant |
| Ambient Air Temperature For Operation | 65-65 °C |
| Standards |
|
| Nema Degree Of Protection | NEMA 2 |
| Enclosure Material | Black Plastic |
