M9XUP112

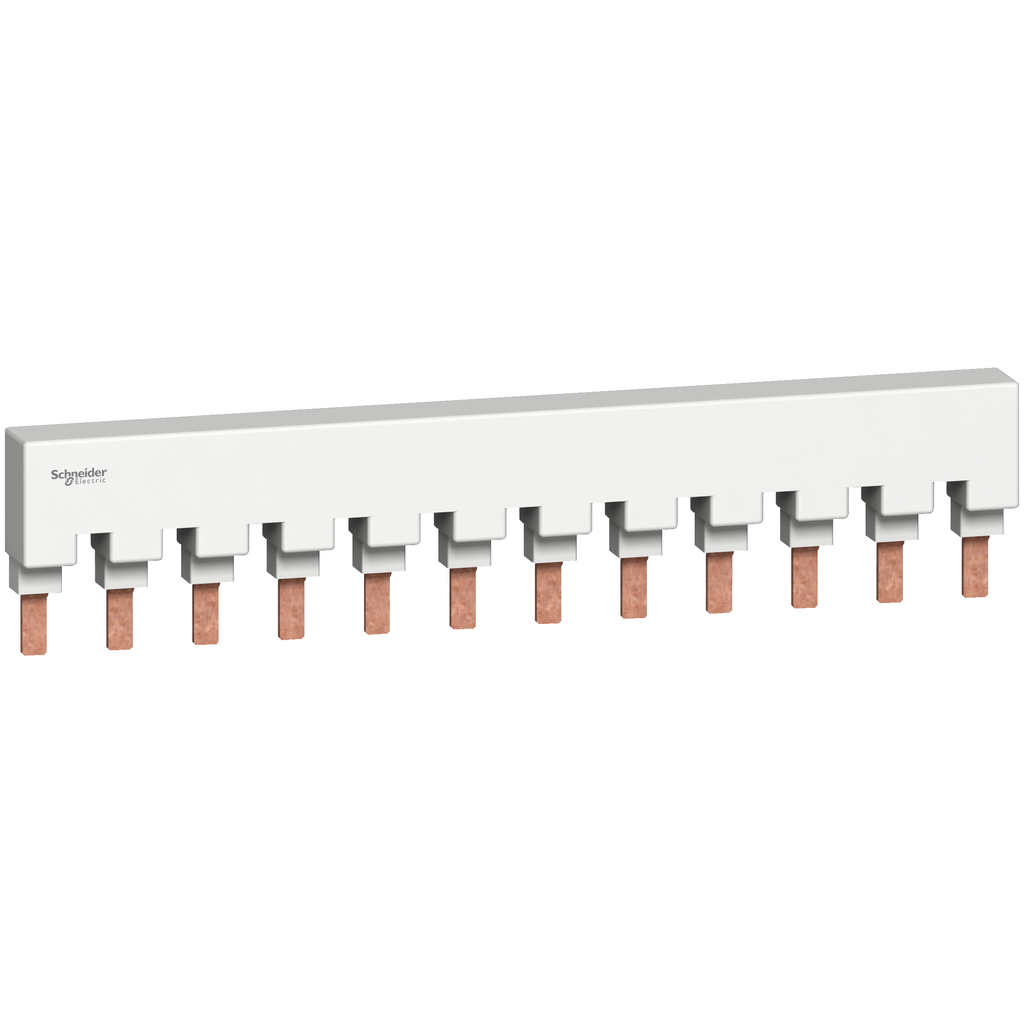

Multi9 - comb busbar - 1L - 18 mm pitch - 12 modules - 115A
Specifications
| Total Number Of 18 Mm Modules | 12 |
|---|---|
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | comb busbar |
| Range | Multi9 |
| Mounting Mode | horizontal |
| Lines Description | 1L |
| Range Compatibility | Multi9 (Multi9 C60BP) |
| Number Of Ways | 12 ways 1 L |
| 9 Mm Pitches | 24 |
| Distance Between Way | 18 mm |
| Connector Type | tooth |
| Device Presentation | uncuttable |
| [Ui] Rated Insulation Voltage | 1000 V AC 50/60 Hz UL 508 |
| [Ie] Rated Operational Current | 115 A 40 °C |
| Insulation | insulated |
| [Ue] Rated Operational Voltage |
|
| Connection Pitch | 18 mm |
| Color | Light gray RAL 7035) |
| Width | 216 mm |
| Mounting Location | top tunnel type terminals |
| Poles Configuration For 1 Way | 1 x 1P |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Ip Degree Of Protection | IP20 with end-pieces and tooth covers |
| Standards | UL 508 |
| Pollution Degree | 3 |
| Fire Resistance | 960 °C 30 s ) IEC 60695-2-1 |
