M9XCP157

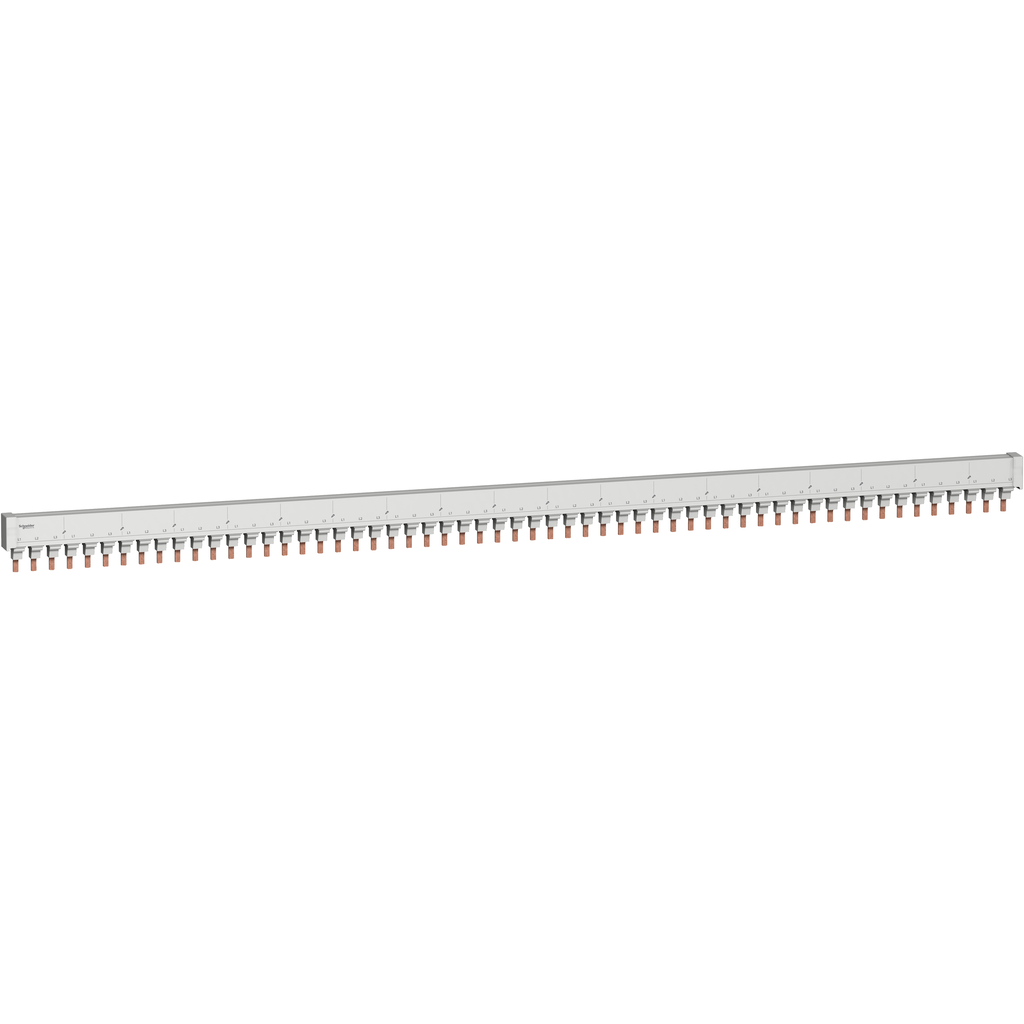

Multi9 - comb busbar - 1L - 18 mm pitch - 57 modules - 80A
This Multi9 product is a cuttable horizontal comb busbar 57 modules for Multi9 C60 BP. It is dedicated to (Line) installations. The distribution type is 1L. It is a set of 1 device. The length is 1026mm. The total number of modules of 18mm is 57. The Ue rated operational voltage is 277VAC (phase to neutral) and 480VAC (phase to phase). The Ui rated insulation voltage is 1000VAC. The color is light grey (RAL 7035). The degree of protection is IP20 with end-pieces and tooth covers. The pollution degree is 3. The resistance of the plastic to flames and to abnormal heat is 960°C within 30s conforming to IEC 60695-2-1. It complies with UL 508 standard.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Total Number Of 18 Mm Modules | 57 |
|---|---|
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | comb busbar |
| Range | Multi9 |
| Mounting Mode | horizontal |
| Lines Description | 1L |
| Range Compatibility | Multi9 (Multi9 C60BP) |
| Number Of Ways | 57 ways 1 L |
| 9 Mm Pitches | 114 |
| Distance Between Way | 18 mm |
| Connector Type | tooth |
| Device Presentation | cuttable |
| [Ui] Rated Insulation Voltage | 1000 V AC 50/60 Hz UL 508 |
| [Ie] Rated Operational Current | 80 A 40 °C |
| Insulation | insulated |
| [Ue] Rated Operational Voltage |
|
| Connection Pitch | 18 mm |
| Color | Light gray RAL 7035) |
| Width | 1026 mm |
| Mounting Location | top tunnel type terminals |
| Poles Configuration For 1 Way | 1 x 1P |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Ip Degree Of Protection | IP20 with end-pieces and tooth covers |
| Standards | UL 508 |
| Pollution Degree | 3 |
| Fire Resistance | 960 °C 30 s ) IEC 60695-2-1 |
