M9LC420

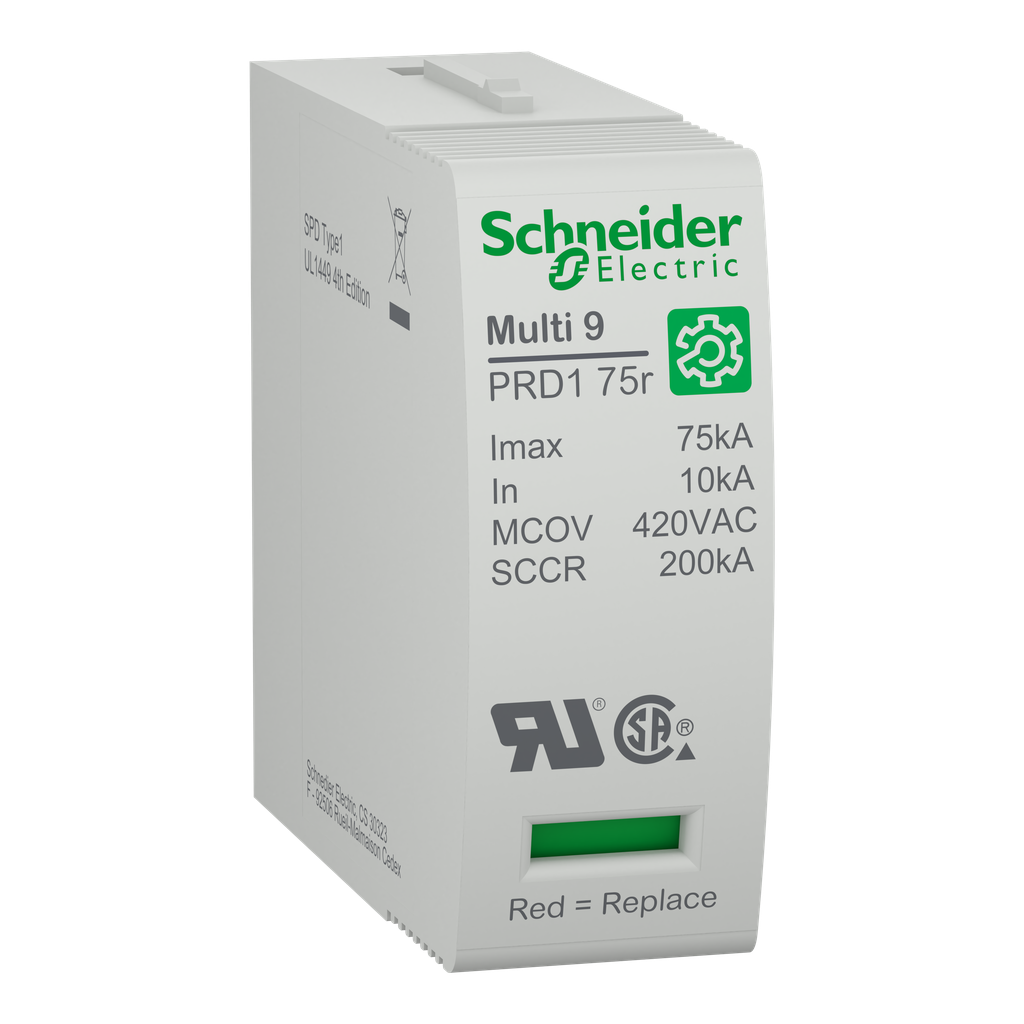

surge arrester cartridge, Multi9 PRD1 75r, 1P, 347 V
This Multi9 product is a cartridge for PRD1 75r surge protection device. The Imax maximum discharge current is 75kA. The In nominal discharge current is 10kA. The Uc maximum continuous operating voltage is 420VAC. The maximum Up voltage protection level is 1500V. It can be plugged into a surge protecting device module. Its width is 2 pitches of 9mm. The product color is light grey (RAL 7035). The dimensions are (W) 17.5mm x (H) 45mm x (D) 68.5mm. The degree of protection is NEMA 1. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. It is compliant withUL 1449 standard.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Or Component Type | cartridge |
|---|---|
| Product Name | Multi9 PRD |
| Range | Multi9 |
| Poles Description | 1P |
| Surge Arrester Technology | MOV |
| Height | 45 mm |
| Surge Arrester Class Type | type 1 |
| Mounting Support | into SPD module |
| Nominal Discharge Current | 10 kA |
| 9 Mm Pitches | 2 |
| Maximum Discharge Current | 75 kA |
| [Uc] Maximum Continuous Operating Voltage | 420 V |
| Net Weight | 82 g |
| Mounting Mode | plug-in |
| Local Signalling | mechanical indicator green and red) |
| Maximum [Up] Voltage Protection Level | <1500 V |
| Response Time | < 25 ns |
| Color | Gray RAL 7035) |
| Width | 17.5 mm |
| Depth | 68.5 mm |
| [Ue] Rated Operational Voltage | 347 V AC 50-60 Hz |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Ambient Air Temperature For Operation | -25-60 °C |
| Standards | UL 1449 |
| Ambient Air Temperature For Storage | -40-85 °C |
| Relative Humidity | 0-95 % |
| Quality Labels |
|
| Ip Degree Of Protection | NEMA 1 |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
