M9L41347

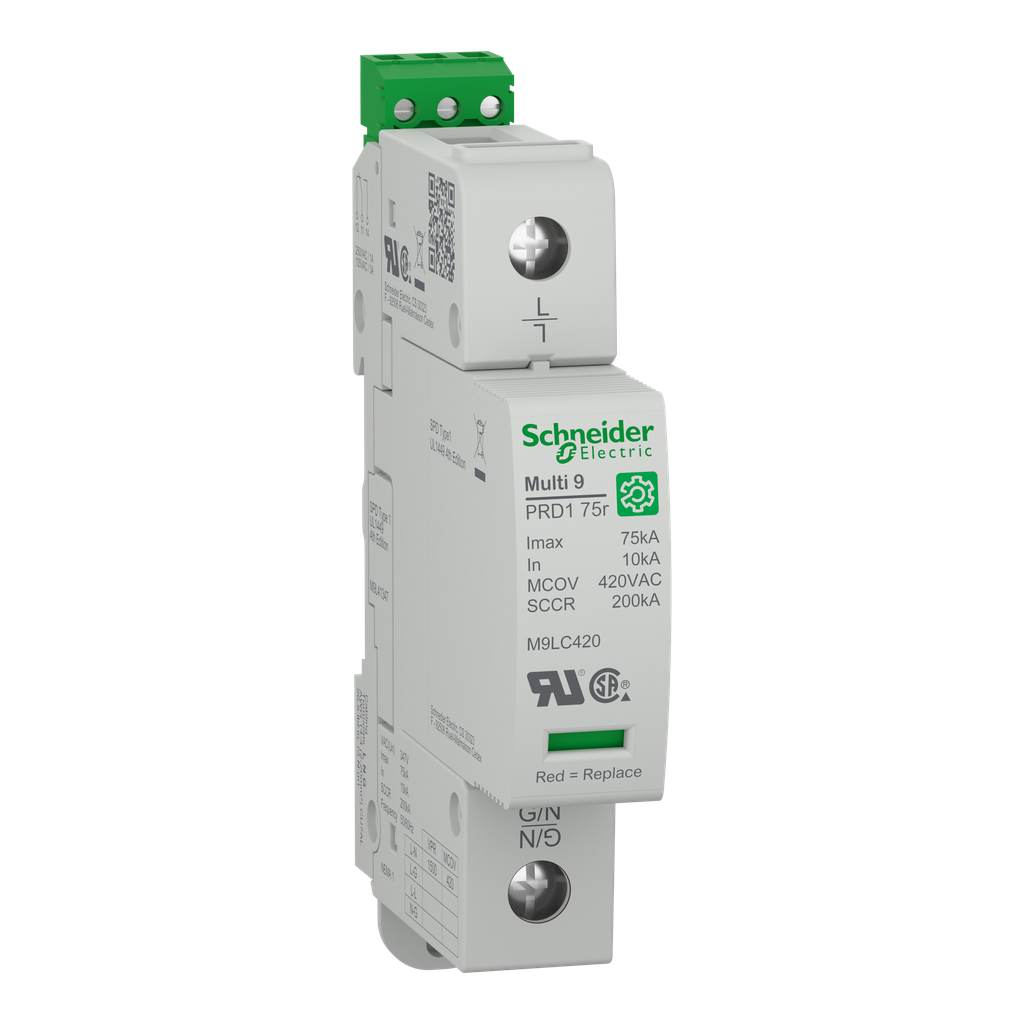

surge arrester, Multi9 PRD1 75r, 1P, 347 V
Specifications
| Remote Signalling | with |
|---|---|
| Product Or Component Type | surge arrester |
| Product Name | Multi9 PRD1 |
| Range | Multi9 |
| Signal Contacts Composition | 1 SD (1 C/O) |
| Surge Arrester Type | electrical distribution network |
| Poles Description | 1P |
| Device Short Name | PRD1 75r |
| Surge Arrester Technology | MOV |
| Height | 91.7 mm |
| Surge Arrester Class Type | type 1 |
| Mounting Support | DIN rail |
| Nominal Discharge Current | common mode 10 kA L/PE) |
| 9 Mm Pitches | 2 |
| [Iimp] Impulse Current | 75 kA |
| Maximum Discharge Current | 75 kA |
| [Uc] Maximum Continuous Operating Voltage | common mode 420 V AC L/N |
| Net Weight | 154 g |
| Wire Stripping Length |
|
| Short-Circuit Withstand | 200 kA |
| Connections - Terminals |
|
| Disconnector Device Type | associated circuit breaker |
| Mounting Mode | clip-on |
| Local Signalling |
|
| Maximum [Up] Voltage Protection Level | <1500 V L/N |
| Response Time | < 25 ns |
| Color | Gray RAL 7035) |
| Width | 17.5 mm |
| Wiring Configuration | 2-wire |
| Depth | 71.4 mm |
| Tightening Torque |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Ambient Air Temperature For Operation | -25-60 °C |
| Standards | UL 1449:ed. 4 |
| Pollution Degree | 3 |
| Ambient Air Temperature For Storage | -40-85 °C |
| Relative Humidity | 0-95 % |
| Ip Degree Of Protection | built-in NEMA 1 |
| Operating Altitude | 6561.68 ft (2000 m) |
