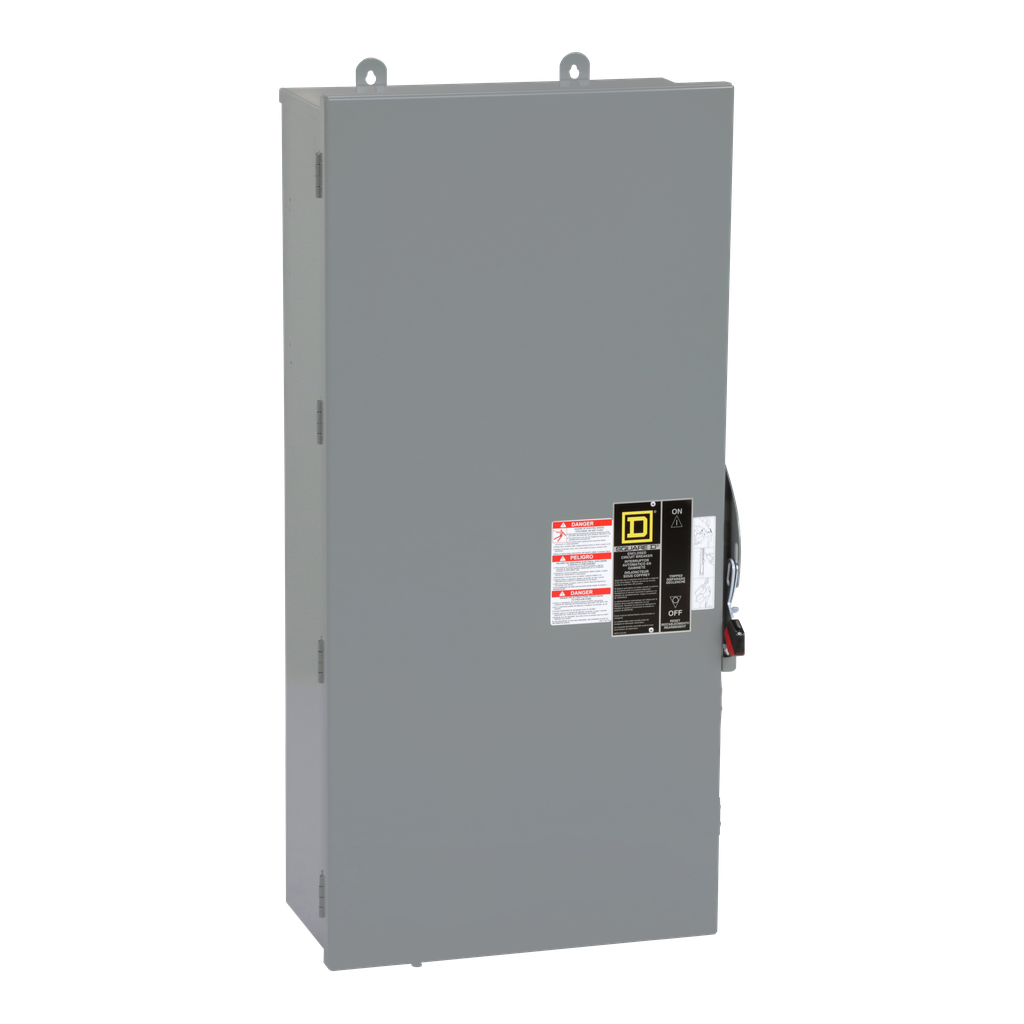

Circuit breaker enclosure, PowerPacT M/P, 300A to 800A, 2 and 3 pole, NEMA 12K, steel
The enclosures for the family of PowerPact circuit breakers H- through Q-frame are cULus listed unless otherwise noted. The enclosures are suitable for service entrance equipment when neutral assembly is installed. The short circuit current rating of the enclosed circuit breakers is equal to the rating of the circuit breaker installed unless otherwise noted. All enclosures will accept 80% rated circuit breakers unless otherwise noted. This is a Powerpact M and P Circuit Breaker enclosure can accept 2 and 3 pole circuit breakers that has a current rating of 300-800A and is NEMA 1 2/3R enclosure. This enclosure is for powerpact M and P frame breakers. This product comes with an 18 month warranty.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Circuit Breaker Type |
|
|---|---|
| Product Destination |
|
| Warranty | 18 months |
| Line Rated Current | 300-800 A |
| Height | 1036.96 mm |
| Poles Description |
|
| Enclosure Material | steel |
| Width | 527.05 mm |
| Depth | 241.3 mm |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1408006EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Halogen Content Performance | Halogen free plastic parts product |
| Product Certifications |
|
