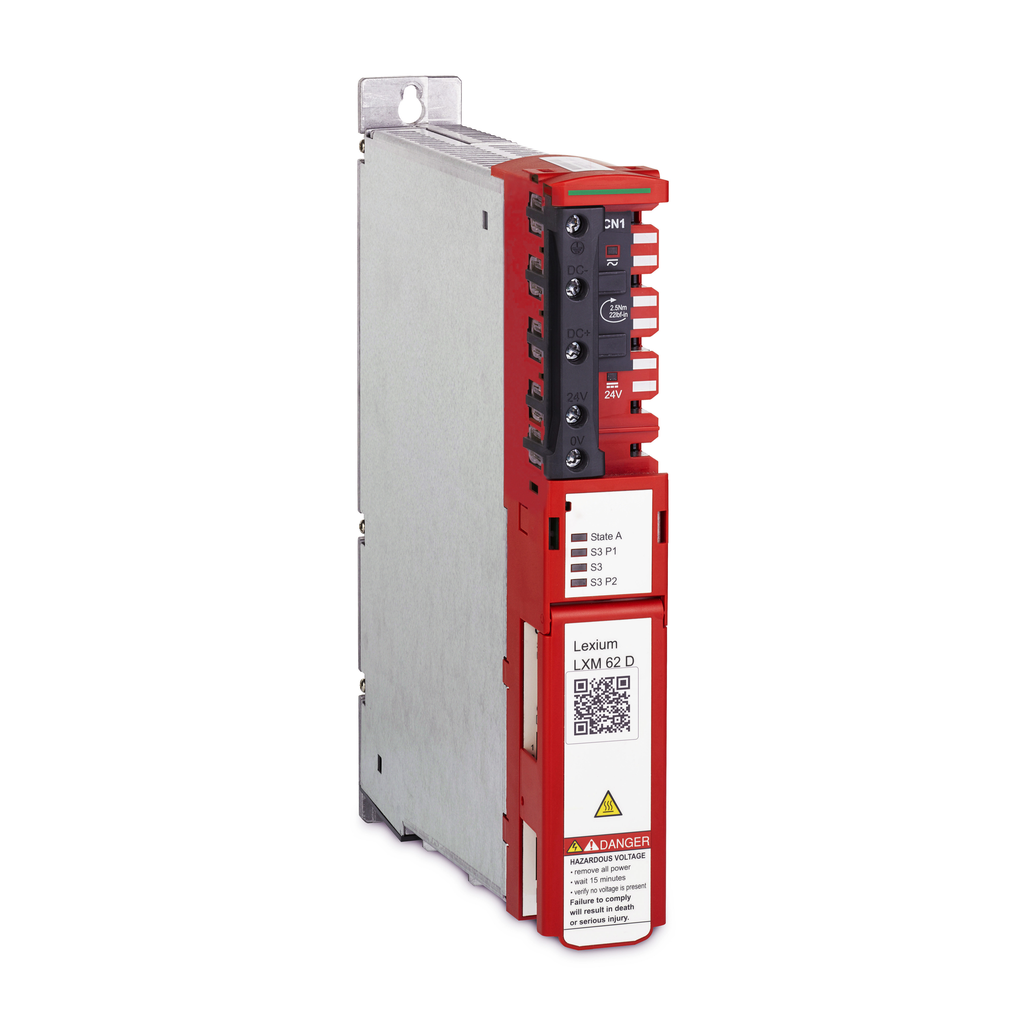

This product is part of the Lexium 62 & Motors range, an offer of servo drives. The double drive features SERCOS III physical interface. It offers 2 digital/2 touch probe inputs and 2 digital outputs. It is a double drive with a rated supply voltage of 24VDC, a continuous output current of 5A at 4kHz and a continuous power of 4.3kW. It is furnished with connectors for electrical connection. It is an IP20 rated product. It weighs 3kg. It is suitable for general machine control, packaging machine automation and material handling applications. This product is certified by CE, CSA, EAC, TUV and UL. It meets IEC 62061, EN 61800-3, EN/ISO 13849-1, UL 508C, EN 61800-5-1, EN 61800-5-2 and EN/ISO 13849-2 standards. This product is compatible with servo motor SH3 (100mm, 3 motor stacks), servo motor SH3 (100mm, 4 motor stacks) and servo motor SH3 (140mm, 1 motor stack). It includes accessory kit. Lexium 62 multi-axis servo systems can be controlled with all PacDrive 3 LMC motion controllers of the Pro/Pro2 and Eco series via SERCOS communication. Multi axis servo drives and servo motors from 0.95kW to 24kW for PacDrive based automation solutions.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | PacDrive 3 |
---|---|
Product Or Component Type | double drive |
Device Short Name | LXM 62 |
[Us] Rated Supply Voltage |
|
Continuous Power | 4.3 kW |
Number Of Outputs | 2 digital |
Output Current 3S Peak | 27 A 4 kHz |
Height | 310 mm |
Discrete Input Voltage | 24 V DC for - 20...25 % |
Phase |
|
Net Weight | 3 kg |
Number Of Inputs |
|
Electrical Connection |
|
Discrete Output Voltage | 24 V DC |
Switching Frequency | 8 kHz |
Safety Function |
|
Product Compatibility |
|
Width | 44.5 mm |
Overvoltage Category | III |
Depth | 270 mm |
Tightening Torque | CN1 2.5-2.5 N.m |
Nominal Power | 4.3 kW |
Continuous Output Current | 9 A 4 kHz |
Supply Frequency | 50/60 Hz - 5...5 % |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1406012EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1406012EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ambient Air Temperature For Operation | 5-55 °C |
Standards |
|
Shock Resistance | 100 m/s² EN/IEC 60721-3-3 |
Environmental Characteristic | 3K3 IEC 60721-3-3 |
Vibration Resistance | 10 m/s²EN/IEC 60721-3-3 |
Relative Humidity | 5-85 % |
Pollution Degree | 2 EN/IEC 61800-5-2 |
Ip Degree Of Protection | IP20 EN/IEC 60529 |
