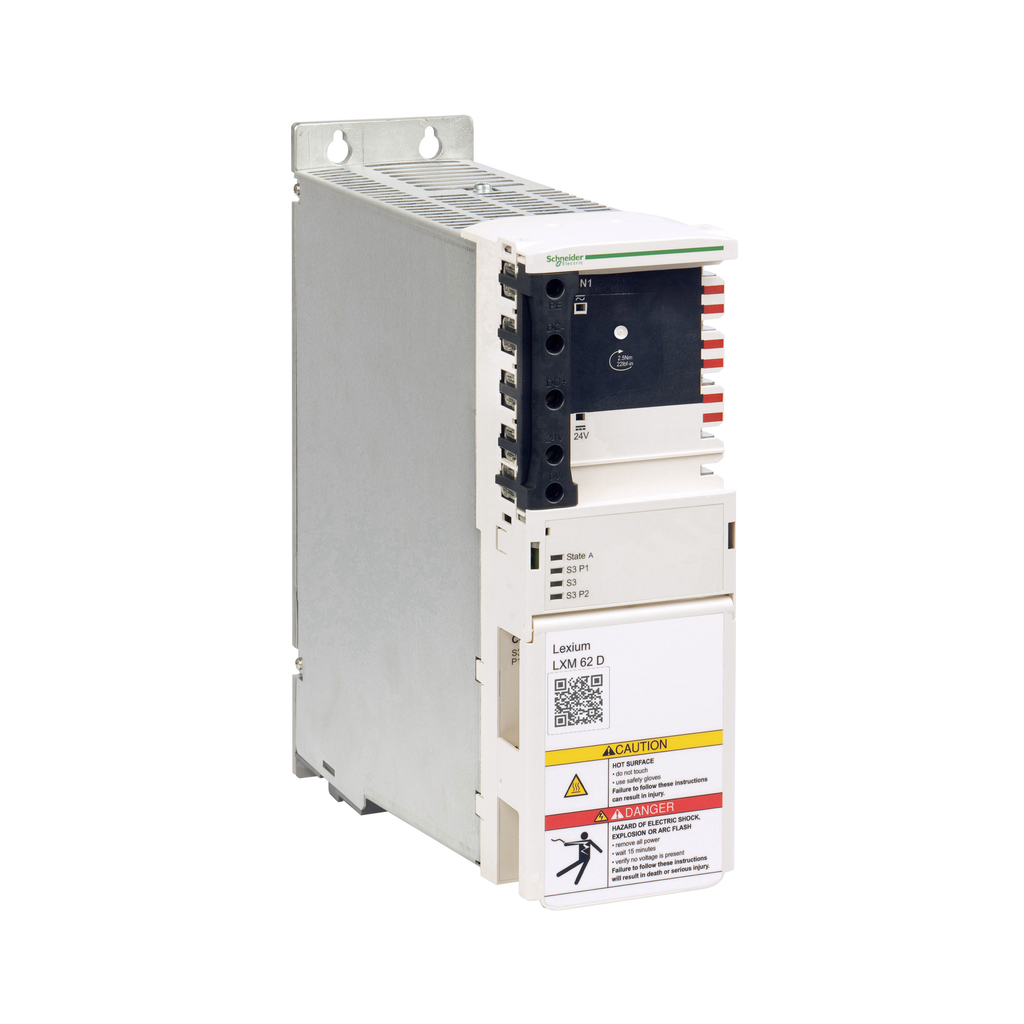

LXM62DC13C21000 - Lexium 62 Single Drive 130 A - accessory kit included

LXM62DC13C21000

Lexium 62 Single Drive 130 A - accessory kit included

This product is part of the Lexium 62 & Motors range, an offer of servo drives. The single drive features SERCOS III physical interface. It offers 2 digital/2 touch probe inputs and 2 digital outputs. It is a single drive with a rated supply voltage of 24VDC, a continuous output current of 50A at 4kHz and a continuous power of 24.7kW. It is furnished with connectors for electrical connection. It is an IP20 rated product. It weighs 6.8kg. It is suitable for general machine control, packaging machine automation and material handling applications. This product is certified by CE, CSA, EAC, TUV and UL. It meets UL 508C, EN 61800-5-1, EN/ISO 13849-1, IEC 61508, EN 61800-3 and IEC 62061 standards. This product is compatible with servo motor SH3 (140mm, 4 motor stacks), servo motor SH3 (205mm, 1 motor stack) and servo motor SH3 (205mm, 2 motor stacks). It includes accessory kit. Lexium 62 multi-axis servo systems can be controlled with all PacDrive 3 LMC motion controllers of the Pro/Pro2 and Eco series via SERCOS communication. Multi axis servo drives and servo motors from 0.95kW to 24kW for PacDrive based automation solutions.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Range Of Product	PacDrive 3
Product Or Component Type	single drive
Device Short Name	LXM 62
[Us] Rated Supply Voltage	400 V - 10...10 %)three phase 230 V - 10...10 %)three phase 230 V - 10...10 %)single phase
Continuous Power	24.7 kW
Number Of Outputs	2 digital
Output Current 3S Peak	130 A 4 kHz
Height	310 mm
Discrete Input Voltage	24 V DC for - 20...25 %
Phase	single phase three phase
Net Weight	6.8 kg
Number Of Inputs	2 digital 2 touch probe
Electrical Connection	terminal 0.2...15 mm², AWG 24...AWG 16 CN4) terminal 0.5...16 mm², AWG 20...AWG 6 CN5) terminal 0.75...16 mm², AWG 18...AWG 6 CN6) terminal 0.2...6 mm², AWG 24...AWG 10 CN7)
Discrete Output Voltage	24 V DC
Switching Frequency	8 kHz
Safety Function	STO (safe torque off)
Product Compatibility	servo motor SH3 140 mm, 4 optimized in terms of torque and speed servo motor SH3 205 mm, 1 optimized in terms of torque and speed servo motor SH3 205 mm, 2 optimized in terms of torque and speed servo motor SH3 205 mm, 3 optimized in terms of torque and speed servo motor MH3 140 mm, 2 optimized in terms of torque and speed servo motor MH3 140 mm, 3 optimized in terms of torque and speed servo motor MH3 190 mm, 1 optimized in terms of torque and speed servo motor MH3 190 mm, 2 optimized in terms of torque and speed servo motor MH3 190 mm, 3 optimized in terms of torque and speed servo motor SHS
Width	89.5 mm
Overvoltage Category	III
Depth	270 mm
Tightening Torque	CN1 2.5-2.5 N.m
Nominal Power	24.7 kW
Continuous Output Current	50 A 4 kHz
Supply Frequency	50/60 Hz - 5...5 %
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1407006EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	X
Circularity Profile	ENVEOLI1407006EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications	CSA UL CE EAC TÜV
Ambient Air Temperature For Operation	5-55 °C
Standards	UL 508C EN 61800-5-1 EN/ISO 13849-1 IEC 61508 EN 61800-3 IEC 62061 EN 61800-5-2 EN 62061 EN/ISO 13849-2 CSA C22.2 No 14
Shock Resistance	100 m/s² EN/IEC 60721-3-3
Environmental Characteristic	3K3 IEC 60721-3-3
Vibration Resistance	10 m/s²EN/IEC 60721-3-3
Relative Humidity	5-85 %
Pollution Degree	2 EN/IEC 61800-5-2
Ip Degree Of Protection	IP20 EN/IEC 60529
