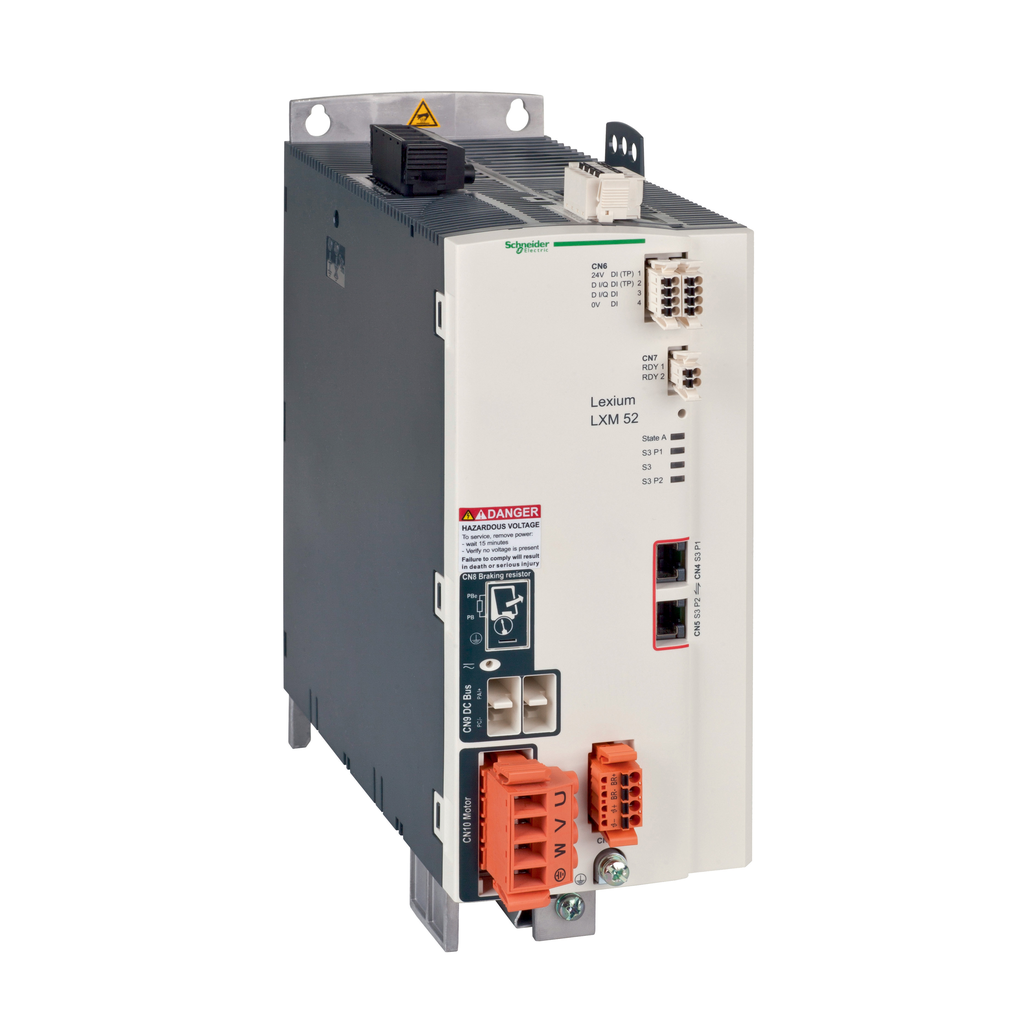

This product is part of the Lexium 52 & Motors range, an offer of standalone servo drives for PacDrive 3. The single drive features SERCOS III physical interface. It offers 4 digital inputs and 2 digital outputs. It is a single drive with a rated supply voltage of 208V to 480V, a continuous output current of 13A and a continuous power of 7kW. It is furnished with connector terminals for electrical connection. It is an IP20 rated product. It weighs 5kg. It is suitable for general machine control, packaging machine automation and material handling applications. This product is certified by CE. It meets EN/IEC 61800-3 standards. This product is compatible with servo motor SH3 (100mm, 4 motor stacks), servo motor SH3 (140mm, 2 motor stacks) and servo motor SH3 (140mm, 3 motor stacks). Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions. Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | PacDrive 3 |
---|---|
Product Or Component Type | single drive |
Product Compatibility |
|
Device Short Name | LXM 52 |
Warranty | 18 months |
Continuous Power | 13 kW |
Number Of Outputs | 2 digital |
Output Current 3S Peak | 72 A |
Height | 274.1 mm |
Discrete Input Voltage | 24 V DC |
Phase | 3 phase |
Net Weight | 5 kg |
Contact Bounce Time | > 1 ms compliment of STO_A, compliment of STO_B |
Number Of Inputs | 4 digital |
Electrical Connection | terminal 0.75...10 mm², AWG 18...AWG 8 CN1) |
Discrete Output Voltage | 24 V DC |
Switching Frequency | 8 kHz |
[Us] Rated Supply Voltage | 208...480 V - 15...10 % |
Width | 108 mm |
Overvoltage Category | III |
Depth | 217 mm |
Tightening Torque | CN10 0.68-0.68 N.m |
Nominal Power | 7 kW |
Continuous Output Current | 13 A 8 kHz |
Supply Frequency | 50...60 Hz - 5...5 % |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP110705EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI110605EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications | CE |
Ambient Air Temperature For Operation | 0-50 °C |
Standards | EN/IEC 61800-3 |
Shock Resistance | 100 m/s² EN/IEC 60721-3-3 |
Environmental Characteristic | 3K3 IEC 60721-3-3 |
Vibration Resistance | 10 m/s²EN/IEC 60721-3-3 |
Relative Humidity | 5-95 % |
Pollution Degree | 2 |
Ip Degree Of Protection | IP20 EN/IEC 60721-3-3 |
