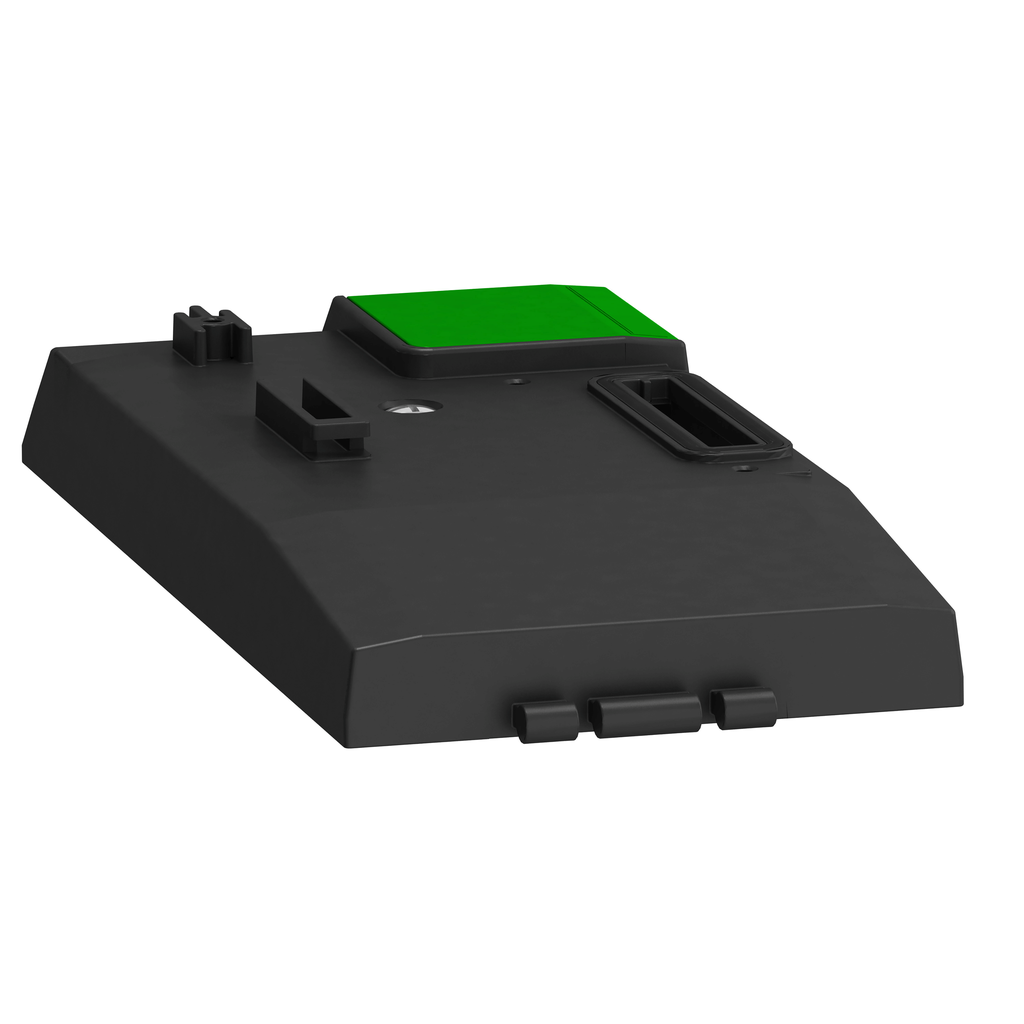

Control unit, Lexium 32i, LXM32i, CANopen/CANmotion
This product is part of the Lexium 32i range, an offer integrated servo drive from 0.6kW to 2.2kW. This control unit provides 2 safety discrete inputs, 4 logic discrete inputs and 2 positive or negative logic outputs. It is easy to integrate and maintain. It is furnished with M12 connectors for CANmotion, M12 for CANopen, RJ45 for Modbus. It is a control unit with a discrete input voltage of 24V DC and a discrete output voltage of 30V DC. Signals are controlled by servo motor encoder feedback. It is an IP65 rated product. It weighs 0.636kg. It is suitable for applications involving high-precision, dynamic positioning such as material handling, material working, packaging and printing. This product is certified by CE, TUV, CSA, RoHS and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. With servo motor and servo drive integrated in one housing, the Lexium 32i is designed for application areas requiring high precision and advanced motor control.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Lexium 32i |
|---|---|
| Format Of The Drive | board |
| Product Or Component Type | control unit |
| Discrete Input Type |
|
| Discrete Input Number |
|
| Device Short Name | LXM32i |
| Warranty | 18 months |
| Discrete Input Logic |
|
| Physical Interface | 2-wire RS485 multidrop Modbus |
| Status Led |
|
| Discrete Input Voltage |
|
| Electromagnetic Compatibility |
|
| Transmission Rate | 9600, 19200, 38400 bps 0-40 m Modbus |
| Response Time | <= 5 ms compliment of STO_A, compliment of STO_B |
| Net Weight | 0.636 kg |
| Contact Bounce Time |
|
| Connector Type |
|
| Communication Interface |
|
| Braking Current | 50 mA |
| Discrete Output Voltage | <= 30 V DC |
| Discrete Output Number | 2 |
| Discrete Output Logic | positive or negative DO)EN/IEC 61131-2 |
| Type Of Cooling | natural convection |
| Method Of Access | slave |
| Control Signal Type | servo motor encoder feedback |
| Safety Function | safe torque off safety function, Integrated |
| Number Of Addresses |
|
| Operating Altitude |
|
| Operating Position | vertical +/- 10 degree |
| Protection Type |
|
| Discrete Output Type | logic DO)24 V DC |
| Response Time On Output | 250 µs DO)discrete |
| Safety Level |
|
| Sampling Duration | DI 0.25 ms discrete |
| Product Certifications |
|
| Ambient Air Temperature For Operation | 0-50 °C UL |
| Standards |
|
| Shock Resistance | 15 gn 11 ms EN/IEC 60028-2-27 |
| Environmental Characteristic | classes 3C1 IEC 60721-3-3 |
| Marking | CE |
| Vibration Resistance |
|
| Pollution Degree | 2 EN/IEC 61800-5-1 |
| Ambient Air Temperature For Storage | -25-70 °C |
| Ip Degree Of Protection | IP65 |
| Relative Humidity | Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3 |
