motion servo drive, Lexium 28, single and three phase, 200 to 240V, 1.5kW

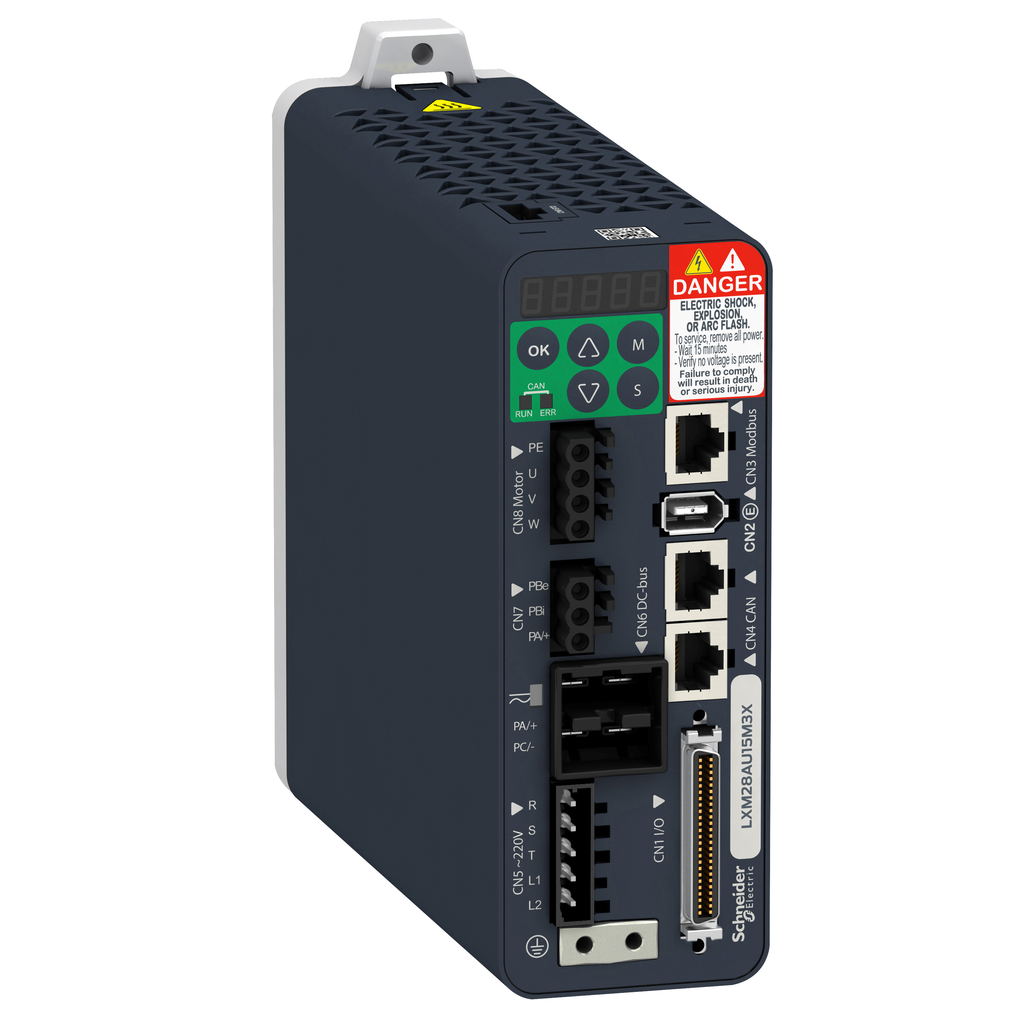

This product is part of the Lexium 28 range, an offer of servo drives from 0.05kW to 4.5kW. The motion servo drive features EMC filter, integrated CANopen, CAN motion interface 7-segment display with 5 buttons. It is a motion servo drive with a rated supply voltage of 220V (single and three phase), an output current of 7A, nominal power of 1.5kW and continuous power of 1500W. It is furnished with spring terminal for electrical connection and RJ45 connectors (CN4) for CANopen/CAN motion. There is an electrical isolation between power/control. It offers CANopen and CAN motion communication interfaces and physical interface of RS485 for Modbus Serial line slave. It is an IP20 rated product. Its dimensions are 55mm (width) x 170mm (depth) x 150mm (height). It weighs 1.2kg. It is suitable for machine control solutions. This product is certified by CE, CSA and CULus. It meets EN/IEC 61800-5-1 standards. This product is compatible with servo motor BCH2 (130mm, 3 motor stacks) at 1500W. The Lexium 28 range offers predeterminate combinations to suit the requirements of motion control applications and optimize the performance of the installation. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Line Current |
|
|---|---|
| Range Of Product | Lexium 28 |
| Format Of The Drive | compact housing |
| Product Or Component Type | motion servo drive |
| Device Short Name | LXM28A |
| [Us] Rated Supply Voltage |
|
| Network Frequency | 47.5...63 Hz |
| Type Of Cable | shielded motor cable 0-55 °C) copper |
| Absolute Accuracy Error | 0.1 % |
| Discrete Input Logic | positive or negative CN1) |
| Height | 150 mm |
| Output Current 3S Peak | 21 A 220 V |
| Electrical Isolation | between power and control |
| Physical Interface | RS485 Modbus Serial line slave |
| Product Compatibility | servo motor BCH2 130 mm, 3 1500 W |
| Status Led |
|
| Discrete Output Number |
|
| Discrete Input Voltage | 24 V DC logic |
| Transmission Rate |
|
| Discrete Output Voltage | 12...24 V DC |
| Discrete Input Number |
|
| Signalling Function | servo status and fault codes five 7-segment display units |
| Marking |
|
| Output Current 3S Peak 2 | 21 A 220 V |
| Connector Type | RJ45 CN4)CANopen, CANmotion |
| Phase |
|
| Net Weight | 1.2 kg |
| Output Current 3S Peak 3 | 21 A 220 V |
| Communication Interface |
|
| Electrical Connection |
|
| Analogue Input Number | 2 |
| Switching Frequency | 16 kHz |
| Discrete Output Logic | positive or negative CN1) |
| Type Of Cooling | integrated fan |
| Supply Voltage Limits |
|
| Method Of Access | slave |
| Control Signal Type | servo motor encoder feedback CN2 |
| Safety Function | STO (safe torque off), Integrated |
| Number Of Addresses | 1-127 CANopen, CANmotion |
| Output Voltage | <= power supply voltage |
| Operating Position | vertical |
| Emc Filter | without EMC filter |
| Maximum Leakage Current | 4.5 mA |
| Width | 55 mm |
| Overvoltage Category | III |
| Depth | 170 mm |
| Nominal Power | 1.5 kW 220 V 16 kHz |
| Continuous Output Current | 7 A 16 kHz |
| Protection Type |
|
| Analogue Input Type |
|
| Continuous Power | 1500 W 220 V |
| Supply Frequency | 50/60 Hz - 5...5 % |
| Safety Level |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1409001EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1409001EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | 0-55 °C |
| Standards | EN/IEC 61800-5-1 |
| Electromagnetic Compatibility | conducted emission level 3category C3 EN/IEC 61800-3 |
| Vibration Resistance | 3M4 3 mm 9-200 Hz)IEC 60721-3-3 |
| Shock Resistance | 10 gn, type I IEC 60721-3-3 |
| Ambient Air Temperature For Storage | -25-65 °C |
| Relative Humidity | 5-95 % without condensation |
| Ip Degree Of Protection | IP20 |
| Operating Altitude |
|
