LXD3T7

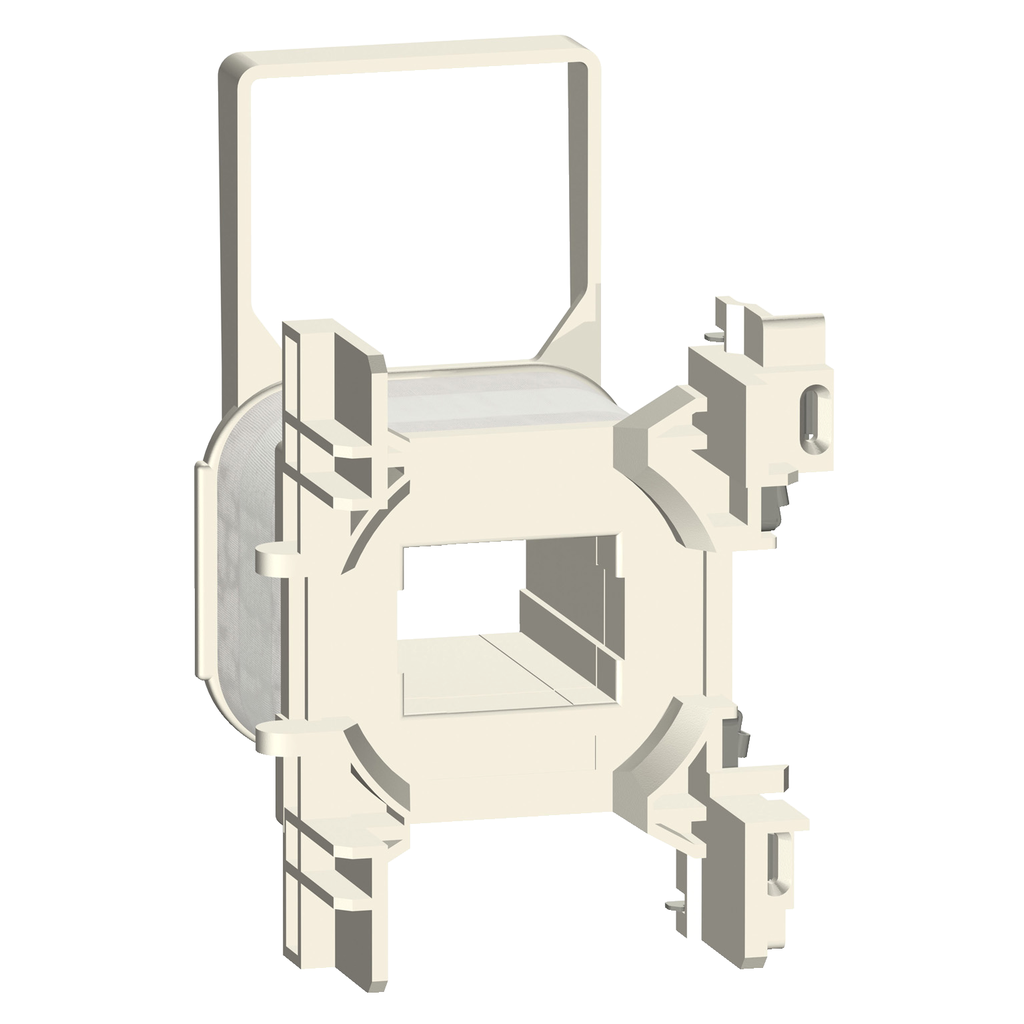

Contactor coil, TeSys Deca, 480V AC 60Hz for D40A-D80A DT60A-DT80A contactor
Specifications
| Average Resistance | 607 Ohm 20 °C |
|---|---|
| [Uc] Control Circuit Voltage | 480 V AC 60 Hz |
| Control Circuit Type | AC 60 Hz |
| Product Or Component Type | contactor coil |
| Range | TeSys |
| Inductance Of Closed Circuit | 33.1 H |
| Maximum Operating Rate | 3600 cyc/h 60 °C |
| Mechanical Durability | 6 Mcycles |
| Product Compatibility |
|
| Device Short Name | LXD3 |
| Warranty | 18 months |
| Control Circuit Voltage Limits |
|
| Inrush Power In Va | 160-160 VA 60 Hz 0.75 20 °C) |
| Coil Technology | without built-in suppressor module |
| Hold-In Power Consumption In Va | 15-15 VA 60 Hz 0.3 20 °C) |
| Heat Dissipation | 4-5 W 60 Hz |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1501004 |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI1501004 |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ambient Air Temperature For Operation | -5-60 °C |
| Net Weight | 0.07 kg |
