LXD1T7 - TeSys D, replaement coil, for LC1D09 to 38 contactors and CAD relays, 480 VAC 50/60 Hz coil

LXD1T7

TeSys D, replaement coil, for LC1D09 to 38 contactors and CAD relays, 480 VAC 50/60 Hz coil

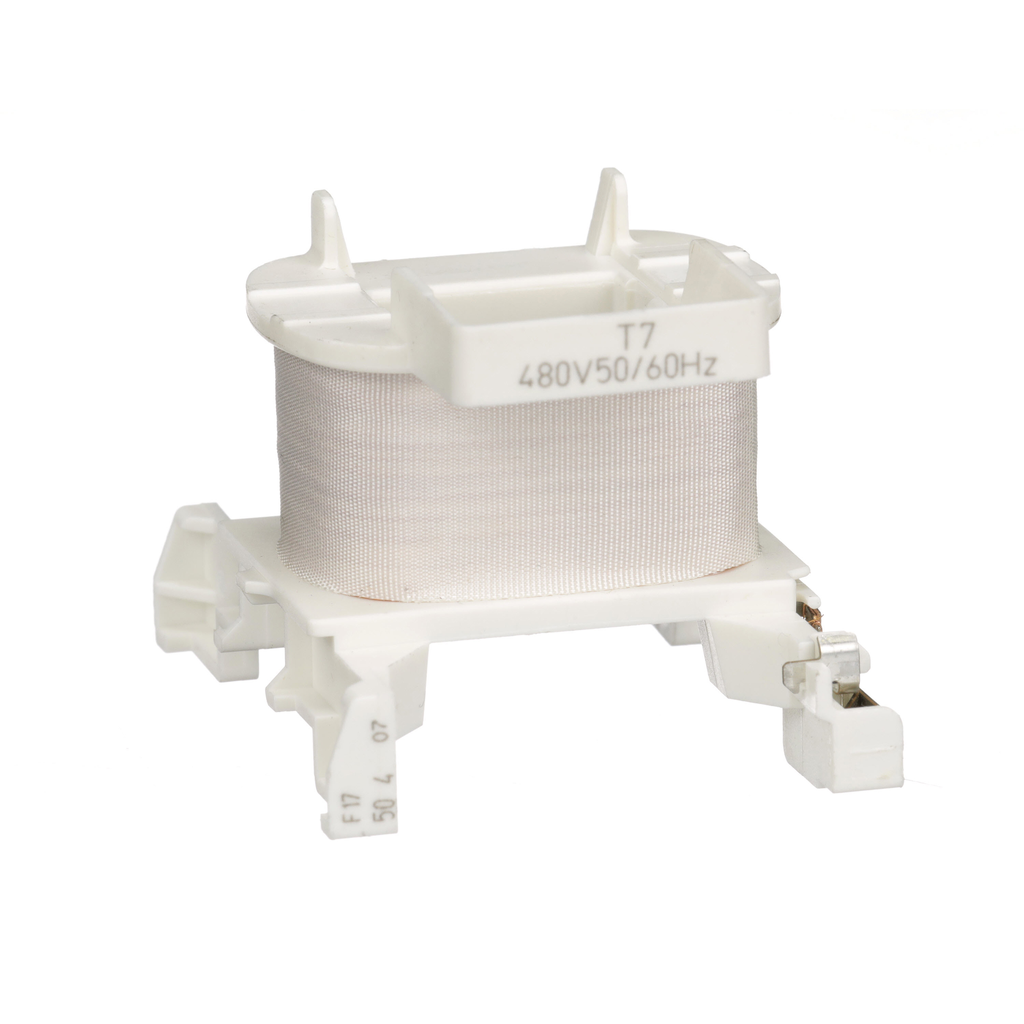

TeSys D replacement coils are for replacing the operating coil in a TeSys D contactors with 9 amperes to 38 ampere ratings and Tesys D Relays. This coil has an operating voltage of 480 Vac 50/60 Hz. This coil has an inrush consumption rating of 70 VA and a sealed consumpation rating ofd 7 VA. The 60Hz operating range is 85 to 110% of nomial voltage at 60 degrees C.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Average Resistance	2398 Ohm 20 °C
[Uc] Control Circuit Voltage	480 V AC 50/60 Hz
Control Circuit Type	AC 50/60 Hz
Product Or Component Type	contactor coil
Range	TeSys
Inductance Of Closed Circuit	87 H
Maximum Operating Rate	3600 cyc/h 60 °C
Mechanical Durability	15 Mcycles
Product Compatibility	LC1DT20...DT40 CAD LC1D09...D38
Device Short Name	LXD1
Warranty	18 months
Control Circuit Voltage Limits	drop-out 0.3...0.6 Uc 50/60 Hz 60 °C) operational 0.8...1.1 Uc 50 Hz 60 °C) operational 0.85...1.1 Uc 60 Hz 60 °C)
Inrush Power In Va	70-70 VA 60 Hz 0.75 20 °C) 70-70 VA 50 Hz 0.75 20 °C)
Coil Technology	without built-in suppressor module
Hold-In Power Consumption In Va	7.5-7.5 VA 60 Hz 0.3 20 °C) 7-7 VA 50 Hz 0.3 20 °C)
Heat Dissipation	2-3 W 50/60 Hz
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1501004
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Toxic Heavy Metal Free	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile	ENVEOLI1501004
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation	-5-60 °C
Net Weight	0.07 kg

TeSys D, replaement coil, for LC1D09 to 38 contactors and CAD relays, 480 VAC 50/60 Hz coil
