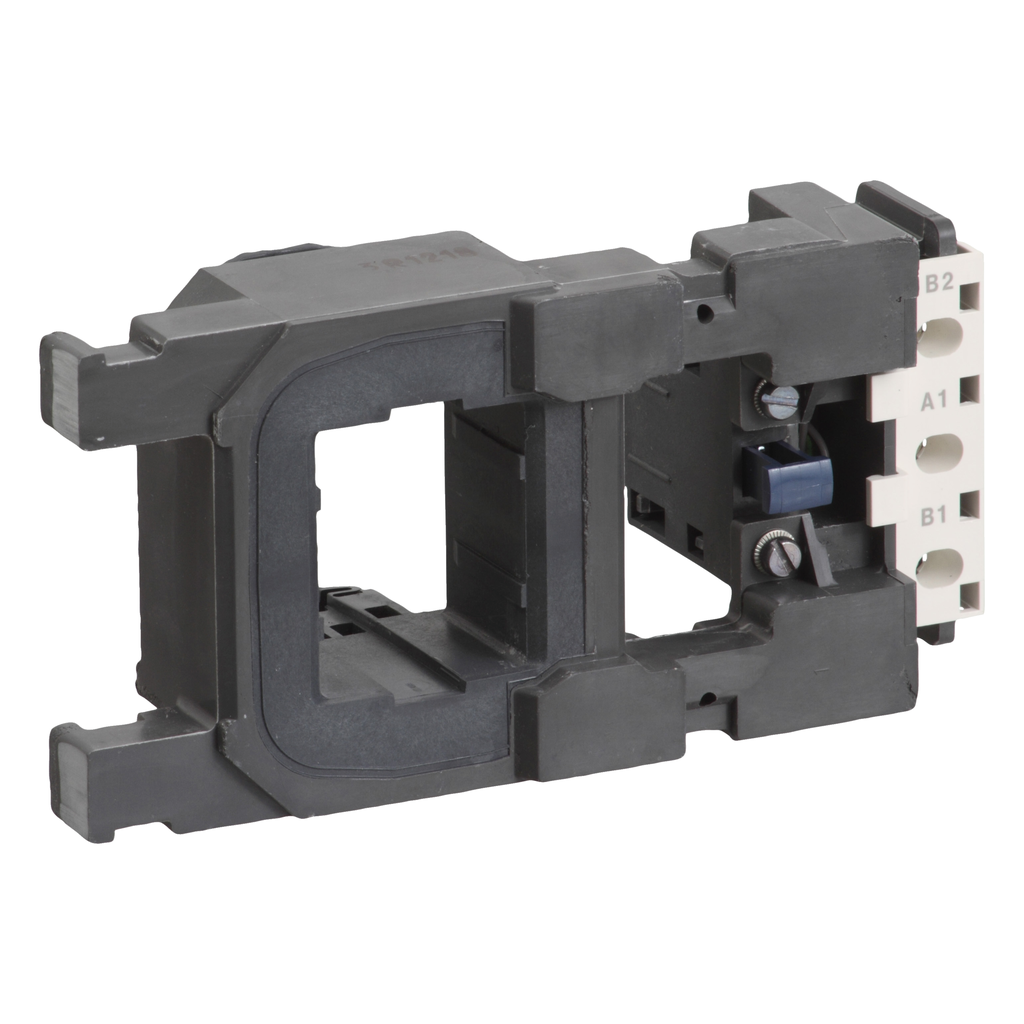

LX9FH1102
TeSys F - specific contactor coil - 110...115 V AC 40...400 Hz low consumption
TeSys F AC coil 110/115V 40-400Hz (voltage code F7/FE7), low sealed consumption, high tolerance to voltage drops, for TeSys F 3-pole and 4-pole contactors LC1 F265, FG265, F330. It operates in voltage limits 0.85-1.1 Uc and environments until 55°C. It provides high operating rates to the contactor, until 2400 cycles/hour. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Average Resistance |
|
|---|---|
| [Uc] Control Circuit Voltage | 110...115 V AC 40...400 Hz |
| Control Circuit Type | AC 40...400 Hz low consumption |
| Range Compatibility | TeSys (TeSys F) LC1F contactor |
| Product Or Component Type | specific contactor coil |
| Range | TeSys |
| Maximum Operating Rate | 3600 cyc/h 55 °C |
| Operating Time |
|
| Product Compatibility |
|
| Device Short Name | LX9FH |
| Mechanical Durability | 10 Mcycles |
| Warranty | 18 months |
| Control Circuit Voltage Limits |
|
| Inrush Power In Va | 560-660 VA 40...400 Hz 20 °C) |
| Coil Technology | without built-in suppressor module |
| Hold-In Power Consumption In Va | 8-10 VA 40...400 Hz 20 °C) |
| Heat Dissipation | 8.4-10.4 W |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111201EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI111214EN_V1 |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ambient Air Temperature For Operation | -5-55 °C |
| Net Weight | 0.75 kg |
