LX4FX110

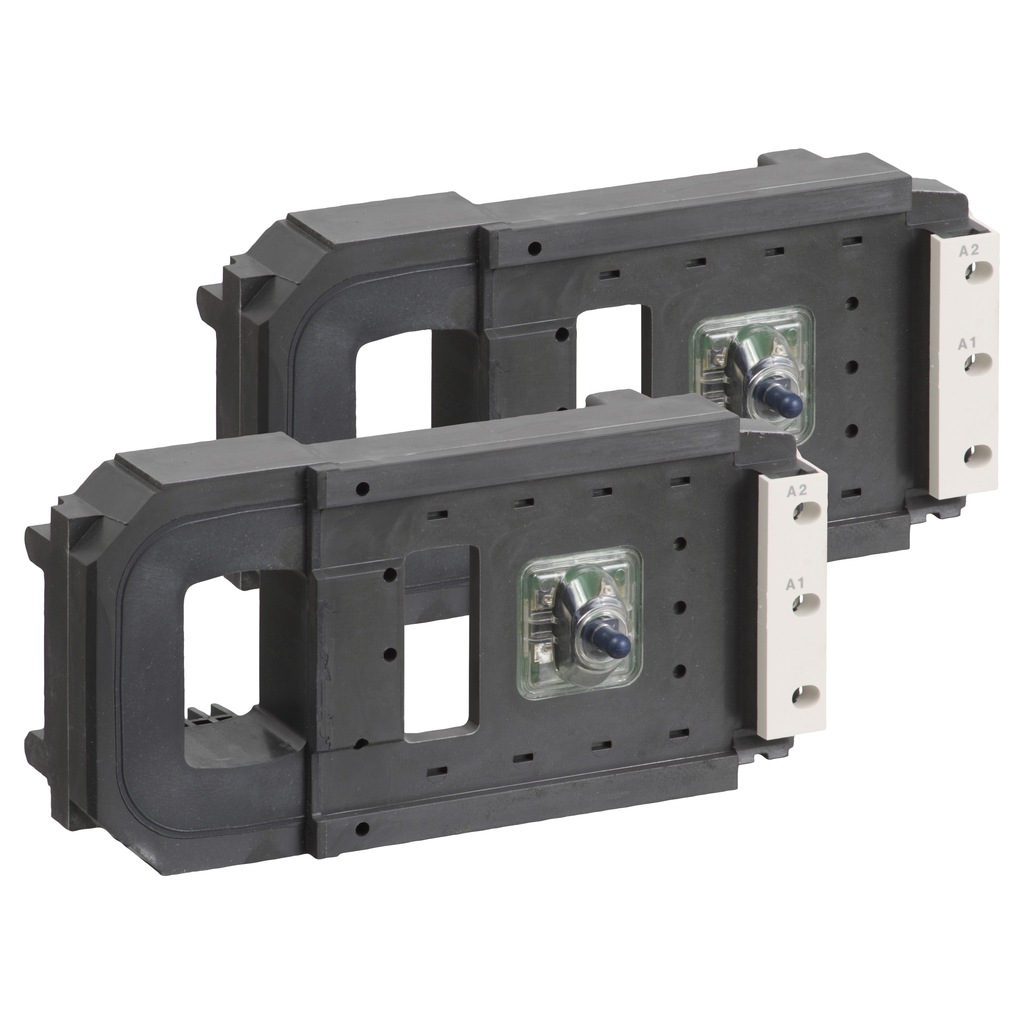

TeSys F - contactor coil - LX4FX - 110 V DC
TeSys F DC coil 110V (voltage code FD), low sealed consumption, for TeSys F 3-pole and 4-pole contactors LC1F780. Set of 2 identical coils, to be connected in series. It operates in the voltage limits 0.85-1.1 Uc and environments until 55°C. It provides to the contactor high operating rates until 600 cycles/hour. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Average Resistance |
|
|---|---|
| [Uc] Control Circuit Voltage | 110 V DC |
| Control Circuit Type | DC low consumption |
| Range Compatibility | TeSys (TeSys F) LC1F contactor |
| Product Or Component Type | contactor coil |
| Range | TeSys |
| Inductance Of Closed Circuit | 0.26 H |
| Maximum Operating Rate | 600 cyc/h 55 °C |
| Operating Time |
|
| Product Compatibility | LC1F780 |
| Device Short Name | LX4FX |
| Mechanical Durability | 5 Mcycles |
| Warranty | 18 months |
| Control Circuit Voltage Limits |
|
| Hold-In Power Consumption In W | 42-42 W 20 °C |
| Coil Technology | without built-in suppressor module |
| Inrush Power In W | 2000-2000 W 20 °C) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111201EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI111214EN_V1 |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ambient Air Temperature For Operation | -5-55 °C |
| Net Weight | 3 kg |
| Quantity Per Set | set of 2 |
