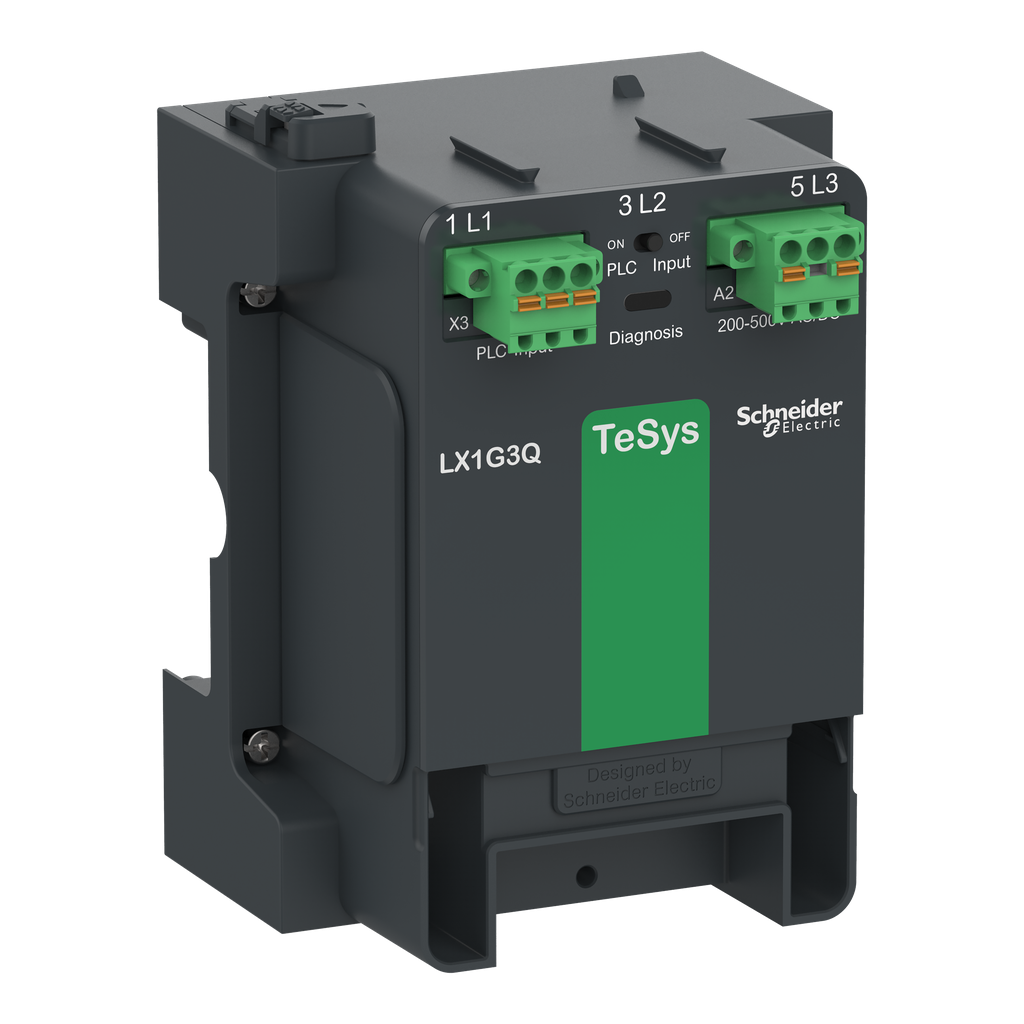

It is a 24-48V AC/DC control module for 3 poles TeSys Giga 115-225 contactor (advanced version). Coil designed for less energy consumption and wider voltage band-width, connection by spring terminal. It allows contactor operation with high AC-3 operating rates until 600 cycles/hour and environments until 60°C. Control module has connectors for connecting the coil control A1, A2 circuit & PLC output control, pole status and diagnostic signaling circuits. Local and Remote Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It is accessible from the front and maintained with very low down times. Unique QR code provides quick access to complete product data.
Brand: Schneider Electric
Add to Quote Catalogue[Uc] Control Circuit Voltage | 24...48 V AC/DC 50/60 Hz |
---|---|
Range Compatibility | TeSys G LX1G contactor coil |
Product Or Component Type | contactor coil |
Range | TeSys |
Maximum Operating Rate | 600 cyc/mn 60 °C |
Poles Description | 3P |
Operating Time |
|
Product Compatibility | LC1G115...225 |
Device Short Name | LX1G |
Mechanical Durability | 5 Mcycles |
Control Circuit Voltage Limits |
|
Hold-In Power Consumption In W | 3.6-3.6 W DC |
Inrush Power In Va | 330-330 VA 48 V AC, 50 Hz |
Connections - Terminals |
|
Coil Technology | built-in bidirectional peak limiting |
Hold-In Power Consumption In Va | 6.2-6.2 VA 48 V AC, 50 Hz |
Inrush Power In W | 205.0 W DC |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2105013 |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI2105013 |
Eu Rohs Directive | Compliant |
Halogen Content Performance | Halogen free plastic parts product |
Ambient Air Temperature For Operation | -25-60 °C |
Height | 144.5 mm |
Standards |
|
Electromagnetic Compatibility |
|
Ip Degree Of Protection | IP20 IEC 60529 |
Pollution Degree | 3 IEC 60947-1 |
Ambient Air Temperature For Storage | -60-80 °C |
Operating Altitude |
|
Quantity Per Set | 1 |
Width | 105.7 mm |
Depth | 94.0 mm |
Permissible Ambient Air Temperature Around The Device | -40-70 °C at Uc |
